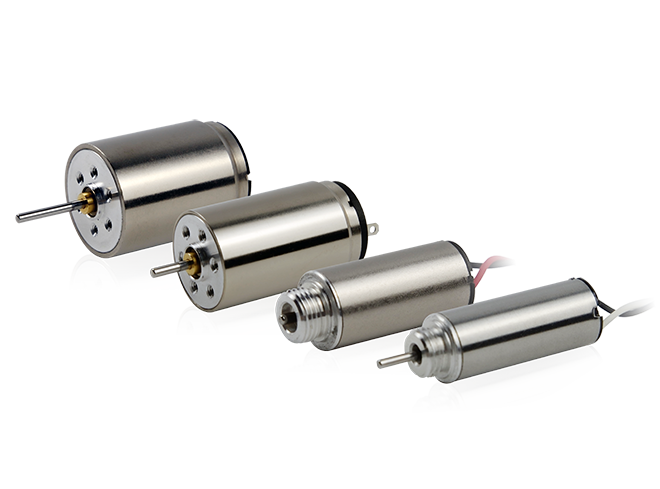

Coreless Motor-Precious Metal Brush

The motors are characterized by: low inertia, rapid acceleration, high efficiency, no cogging and linear output performance. They have excellent speed regulation and servo performance. Contact consultation

Application Fields: Medical devices, industrial equipment, and other precision motion applications.

Model	Specification(MM)	Voltage (V)	No-load current(mA)	No-load speed (RPM)	Nominal torque（mNm）	Max.output power（W）
0615N5M	6*15	3.0	10	12200	0.1	0.11
0816N5M	8*16.2	4.2	15	13700	0.25	0.3
1016N7M	10*16	4.5	35	17500	0.3	0.72
1020N5M	10*20.7	3.0	16	11500	0.5	0.57
1024N5M	10*24	6.0	20	13000	1.0	1.32
1221N5M	12*21	3.3	20	7800	0.5	0.4
1221N5M2B	12*21	3.3	12	7800	0.1	0.41
1230N5M	12*30	5.3	10	4450	0.9	0.52
1319N5M	13*19.2	6.0	20	8600	0.5	0.51
1319N7M	13*19.2	6.0	20	8800	0.5	0.56
1331N5M	13*30.6	4.5	5	4000	1.0	0.5
1331N7M	13*30.7	6.0	25	11000	2.0	3.39
1515N5M	15*15.2	6.0	20	12000	1.0	1.52
1620N5M	16*20	3.0	5	4850	0.5	0.34
1625N5M	16*25.2	3.7	12	6000	0.5	0.43
1625N5M2B	16*25.2	7.5	10	9600	1.0	1.15
1625N9M	16*25.2	3.0	50	11500	1	2
1627N5M(1)	16*27	5.0	25	6600	2	1.5
1627N5M(2)	16*27	6.0	11	6600	1	1.1
1630N5M	16*30	5.0	15	6500	1	1.1
1630N5M2B	16*30	6.0	8	6700	1.0	1.6
1635N9M	16*36.5	12.0	12	7700	5	4.4
1925N9M	19*25	6.0	25	6900	4	3.1
2224N5M	22*24	6.0	60	10500	5	6.8
2224N5M2B	22*24	6.0	10	6400	1.5	1.3
2225N5M	22*25.3	7.2	200	16100	3	6.1
2232N5M	22*32	6.0	20	6300	4	3
2232N5M2B	22*31.6	6.0	20	8100	4	4.7
2232N9M	22*31.6	6.0	15	6600	5.0	3.1
2232N9M2B	22*31.6	6.0	15	7400	5.0	3.6
2433N5M2B	24*32.8	4.5	30	7600	10	10.9
