Reduction Motor-Planetary Gear Series

Planetary Gear Reduction Motors are high-efficiency power units integrating planetary gear mechanisms with motors (typically DC, brushless, or stepper motors). Featuring compact structure, high load capacity, superior transmission efficiency, low backlash & high precision, large reduction ratios with high torque output, and excellent transmission characteristics, they are widely used in precision motion systems.

Application Fields: Robotics, new energy vehicles, medical devices, industrial automation, and related sectors.
Contact Us Now

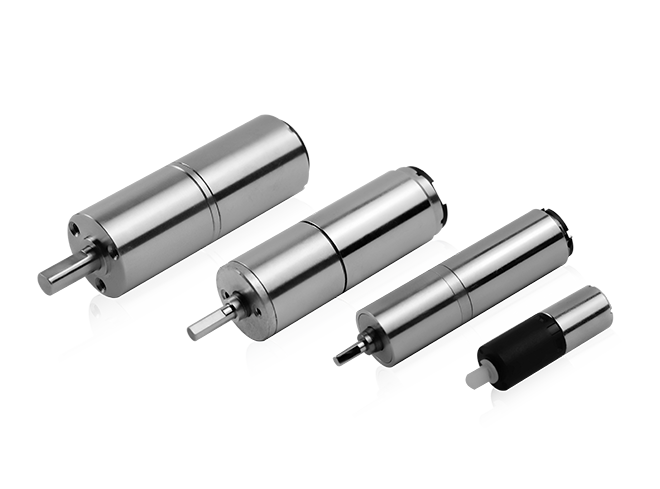

Planetary Gear Motor
ctmon
Model Dia(MM) Voltage (V) No-load current(mA) Terminal resistance（Ω） Reduction ratio Number of stages Download
06**...06*P... 6 3.0 10 19 23~1708 2~6
08**...08*P... 8 4.2 15 13.5 13~809 2~4
10**...10*P... 10 3.0 16 3.8 4~4096 1~6
12**...12*P... 12 12 15 10.4 4~4096 1~6
13**...13*P... 13 12.0 10 15.7 4~4096 1~6
16**...16*P... 16 12.0 13 11.8 4~3027 1~5
19**...20*P... φ20.3 12.0 15 9.6 16~256 1~4
22**...22*P... φ22 12.0 20 2.9 5~3968 1~5
24**...24*P... Φ24.4 4.5 30 0.46 5~3968 2~4
25**...26*P... φ26 48 30 23.5 3.7~352 1~4
30**...28*P... φ27.7 24.0 150 0.9 4~939 1~4
32**...32*P... 32 12 240 1 16~1076 2~4
BO48**...52*P... 52 18 1100 0.05 3.65~393 1~3
BO43**...42*P... 43 48 300 3.65~393 1~3
BO61**...62*P... 61 48 350 0.78 3.65~393 1~3
L0616...06PP... 6 3 100 3.7 1/25 —
L0830...08PP... 8 3.0 150 1.75 1/25 —
C1020...10PP...（1） 10 2.5 100 3.7 1/171 —
C1020...10PP...（2） 10 2.5 100 3.7 1/171 —
C1020...10PP...（3） 10 2.5 100 3.7 1/171 —
C1222...12PP... 12 2.5 60 3.5 1/120 —
