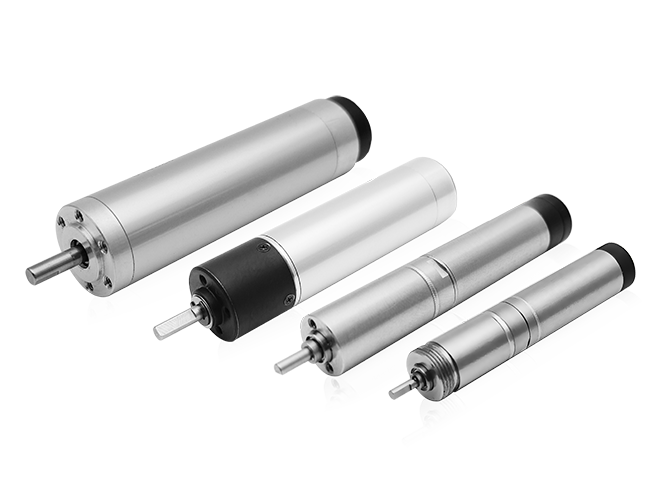

DC Coreless Brushless Servo Motor

Utilizing a brushless DC motor, it achieves higher operational efficiency, lower heat generation, and improved energy utilization with extended service life. The servo control system enables high-precision control, allowing the coreless servo motor to deliver superior performance in high-speed, high-accuracy motion applications.

Application Fields: Medical devices, industrial equipment, and other precision drive systems.

Model	Dia(MM)	Voltage (V)	Reduction ratio	Number of stages	Counts per turn(cpt)	Number of channels
10**NH...M...	10	7.4	4~4096	1~6	12,16,64,256,512	2/3
13**NH...M...	13	12	4~1024	1~5	16,32,64,256,512	2/3
16**NH...M...	16	24	~	~	16,32,64,256,512.1024	2/3
19**NH...M...	19	24	~	~	16,32,64,256,512.1024	2/3
22**NH...M...（1）	22	24	~	~	16,32,64,256,512.1024	2/3
22**NH...M...（2）	22	24	~	~	16,32,64,256,512.1024	2/3
