Drive Type

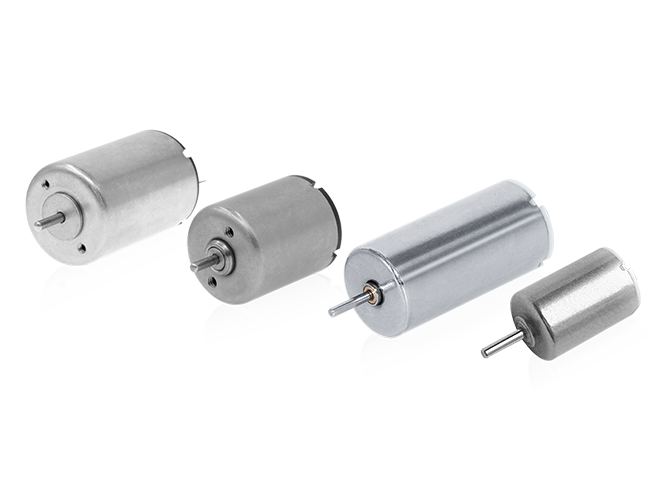

Coreless Motor-Drive Series

Featuring precious metal brushes, high-performance NdFeB rare-earth magnets, and high-strength fine enameled wire, these products offer compact size, lightweight construction, precision engineering, responsive control, low starting voltage, minimal power consumption, and high efficiency. As driving components, they are widely used in micro drones, smart electronic toys, small household appliances, and similar applications.

Drive Type

Model	Specification(MM)	Voltage (V)	No-load current(mA)	No-load speed (RPM)	Nominal torque（mNm）	Max.output power（W）
L0408N3M	φ4.08*8.2	3.4	70	75000	0.03	0.16
L0412N3M	φ4.08*12.1	3.7	60	63000	0.03	0.38
L0510N3M	φ5*9.8	3.5	35	50000	0.03	0.15
L0609N3M	φ6*9	3	40	34000	0.05	0.11
L0610N5M	φ6*10.4	5.0	45	58500	0.05	0.77
L0612N3M	φ6*12.2	4.5	60	55000	0.05	0.7
L0612N5M	φ6*12.2	3.7	110	76400	0.05	1.8
L0614N5M	φ6*13.9	3	7.4	12540	0.05	0.09
L0615N5M	φ6*15	3.4	85	43050	0.15	1.1
L0710N5M	φ7*10.2	8	95	78050	0.55	1.9
L0716N5M	φ7*16.7	3.4	50	25000	0.5	0.53
L0720N5M	φ7*20	3.2	140	44800	0.5	3.4
L0816N5M	φ8*16	6	60	43000	0.5	1.59
L0816N7M	φ8*16.8	3	5	4900	0.3	0.1
L0820N5M	φ8*20	3.2	135	38000	0.5	3.85
L8.520N5M	φ8.5*20	3.0	180	37500	0.5	7.24
L8.520N7M	φ8.5*21	3	90	23650	0.5	2.58
L8.523N5M	φ8.5*23.2	3.7	140	34400	1	4.58
L1013N5M	φ10*13	5	45	34750	0.3	1.8
L1015N5M	φ10*15	6	20	21200	0.5	1.23
L1020N5M	φ10*20.7	3.8	275	45300	2	17.5
L1212N5M	φ12*12.3	6	65	32000	0.5	2.7
L1213N5M	φ12*13	7.4	10	18500	0.5	0.9
L1215N5M	φ12*14.6	6	70	28000	1	3.7
L1515N5M	φ15*15.2	7.4	60	32500	1	8.3
L1620N5M	φ16*19.6	5	35	8550	1	1.5
L1625N5M	φ16*25.5	6	25	8800	3.5	2.8
L1630N5M	φ16*30	5	25	7700	0.5	2
L1718N5M	φ17.4*18.2	6	50	18000	1	4.6
L1722N5M	φ17.4*22.1	7.4	45	20000	1	12.3
