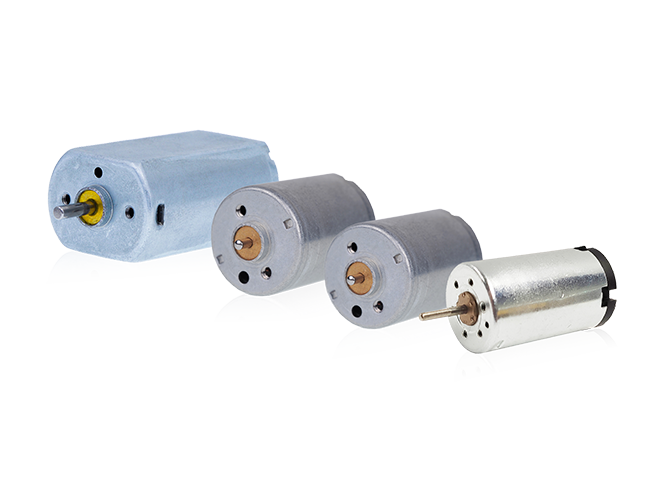

Core-Type Motor-Carbon Brush Series
DC Iron-Core Motors feature coils wound on iron cores, delivering stable and reliable performance at low cost. For high-load, long-life applications, carbon brush structures are recommended. The Vibration Series is extensively used in communication devices, healthcare equipment, and related fields.
Contact Us NowCarbon Brush
| Model | Specification(MM) | Voltage (V) | No-load current(mA) | No-load speed (RPM) | Nominal torque（mNm） | Max.output power（W） | Download |
|---|---|---|---|---|---|---|---|
| C1628R | φ16*27.6 | 12.0 | 63 | 10800 | 1.96 | 1.67 | |
| C1636R | φ16*36.3 | 24 | 75 | 14526 | 1.96 | 9.36 | |
| C1718R | φ17*17.8 | 4.8 | 130 | 14200 | 0.88 | 1.82 | |
| C1723R | φ17*22.8 | 7.4 | 120 | 18800 | 0.49 | 4.43 | |
| C2025F | φ20.3*25 | 12 | 62 | 11420 | 1.96 | 2.7 | |
| C2032F | φ20.3*32 | 6 | 89 | 7400 | 1.8 | 2.35 |
