Products Frameless Torque Motor Frameless Torque Motor BS5016NFL
BS5016NFL

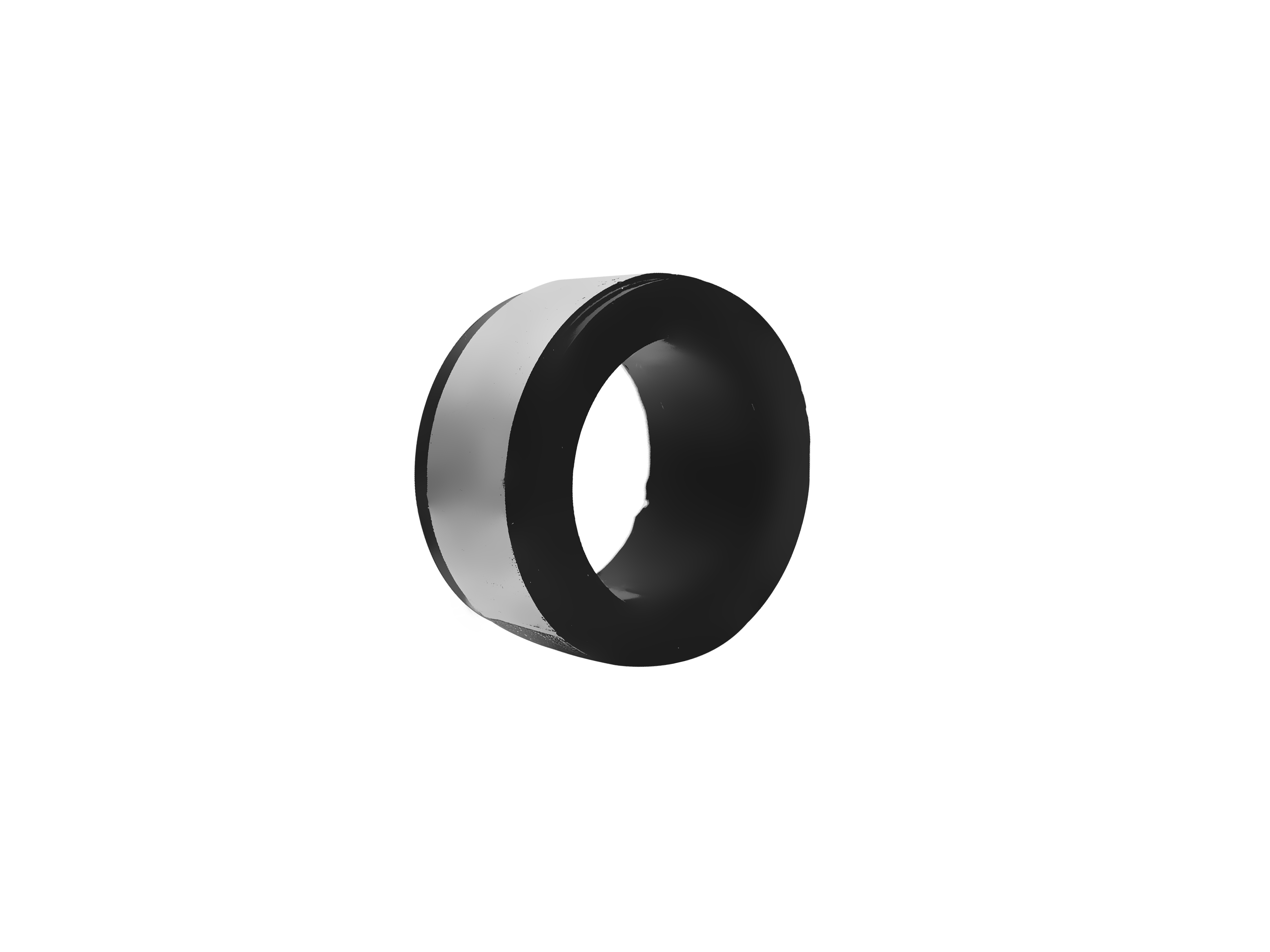

Frameless Torque Motor

BS5016NFL

Diameter：50mm  Lengh ：23.5mm  Voltage：48V.  Max. output power ：223W  Speed：2880rpm

Applications: Collaborative robots , Mechanical arm , Humanoid robot etc.

Customizable options: Specifications, wire length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

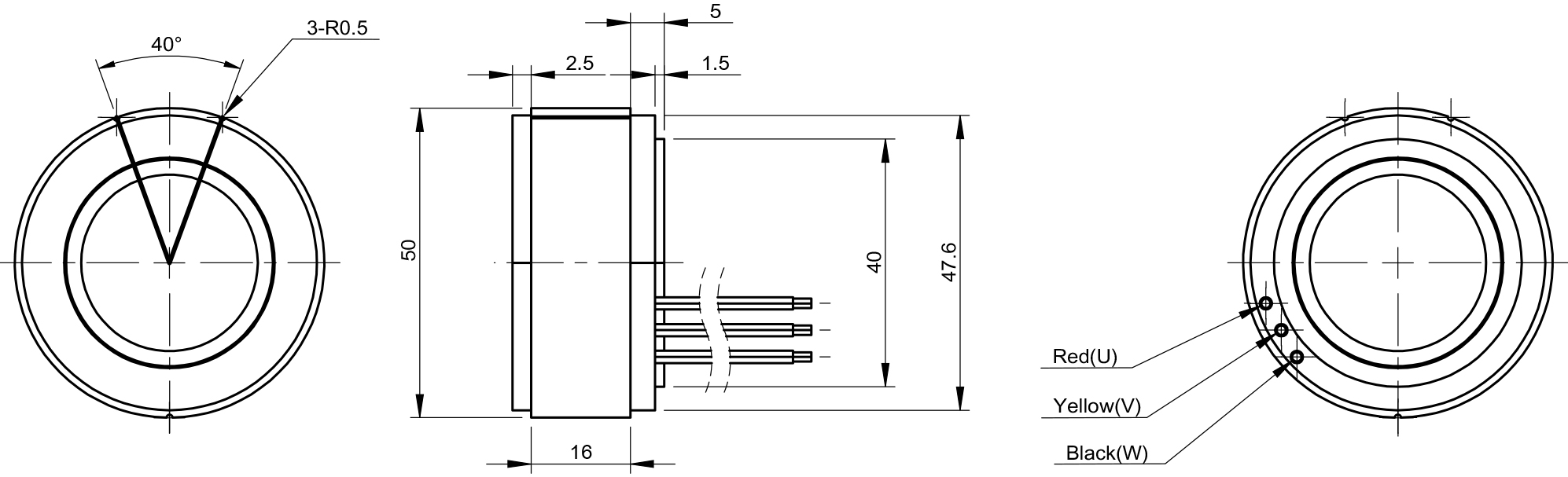

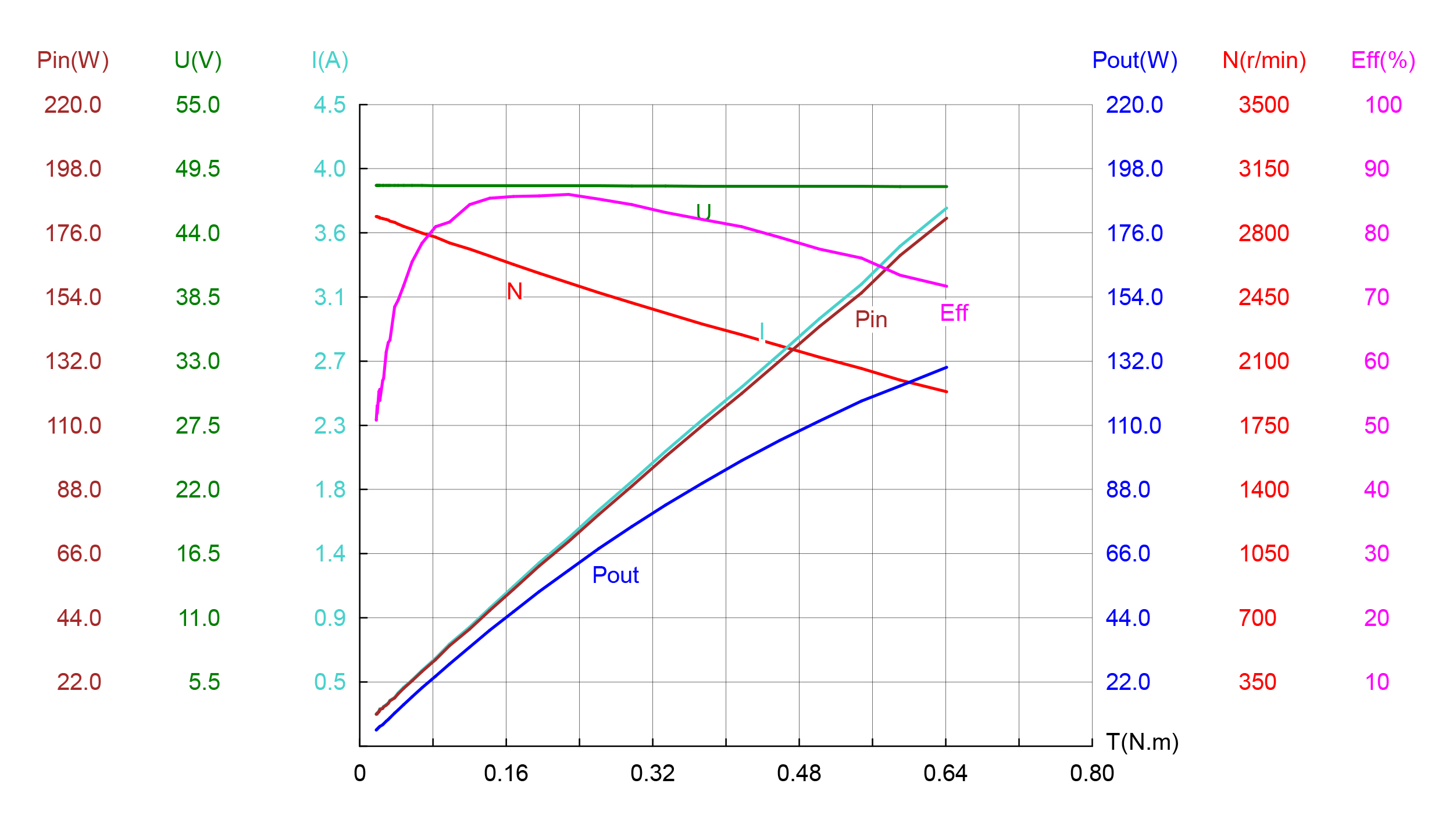

Parameter Outline Drawing Characteristic Curve Download
Characteristics UNIT -29-48.0
Voltage V 48.0
Line resistance Ω 2.5
Line inductance mH 1.3
No-load speed rpm 2880
No-load current A 0.15
Stall torque N.m 3.0
Stall current A 19.2
Nominal torque N.m 0.5
Nominal speed rpm 2125
Nominal current A 3.1
Max.output power W 223
Max.efficiency % 86
Back-EMF constant mV/rpm 16.5
Torque constant Nm/A 0.15
KV Value rpm/V 60
Speed/torque gradient rpm/Nm 974
Rotor inertia gcm2 61
Weight g 138
BS5016NFL
