BS6008NFL
Frameless Torque Motor

BS6008NFL

Diameter：60mm  Lengh ：16.5mm  Voltage：48V.  Max. output power ：900W  Speed：2880rpm；Nominal torque：0.44N.m

Applications: Collaborative robots , Mechanical arm , Humanoid robot etc.

Customizable options: Specifications, wire length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

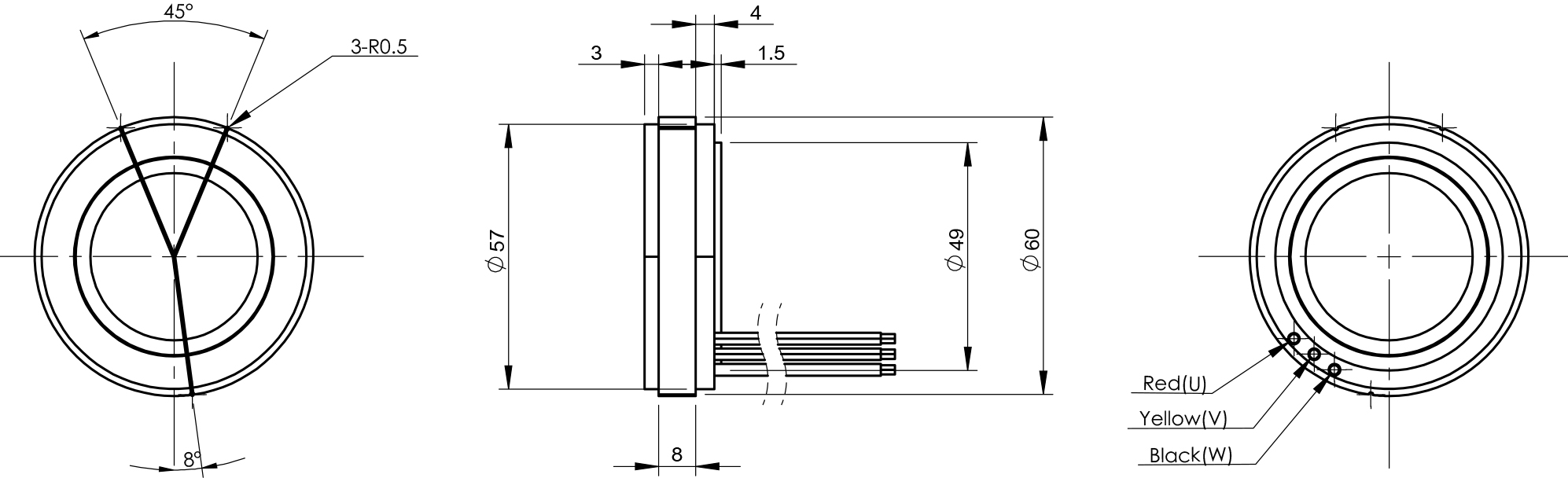

Parameter Outline Drawing Characteristic Curve Download
Characteristics UNIT  -29-48.0
Voltage V 48.0
Line resistance Ω 0.62
Line inductance mH 0.26
No-load speed rpm 6560
No-load current A 0.3
Stall torque N.m 5.3
Stall current A 77.4
Nominal torque N.m 0.44
Nominal speed rpm 5380
Nominal current A 6.1
Max.output power W 900
Max.efficiency % 86
Back-EMF constant mV/rpm 7.3
Torque constant Nm/A 0.068
KV Value rpm/V 136.7
Speed/torque gradient rpm/Nm 1244
Rotor inertia gcm2 81
Weight g 119
BS6008NFL
