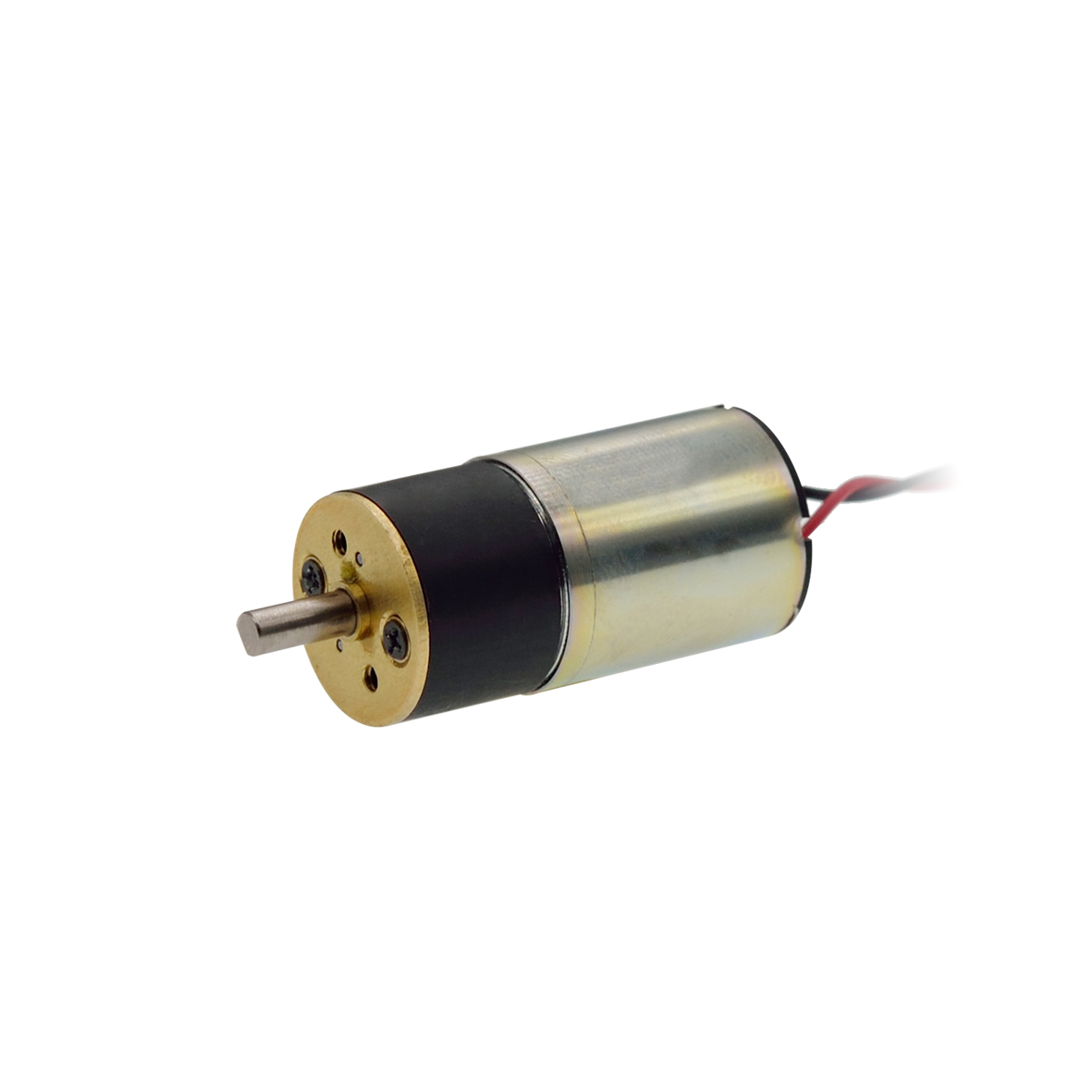

Precision Gearmotor

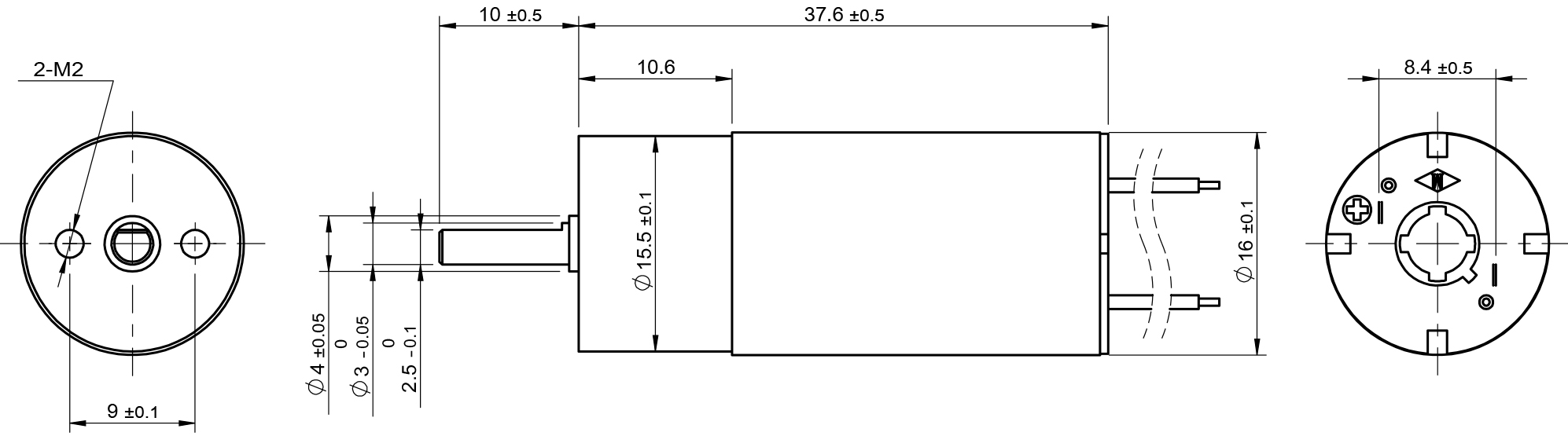

Diameter: 15mm; Length: 26mm; Voltage:12~18V; Gearbox: Metal / Metal CNC; Matched motor type: Coreless motor.
Applications: medical equipment, scientific instruments, industrial equipment, etc.
Options: Lead wires length, Shaft length, Special coils, Gearheads.
Characteristics | Unit | C1620F13-0032 | C1627F13-0013 | |||||
Voltage | V | 18.0 | 12.0 | |||||
Terminal resistance | Ω | 30.8 | 8.1 | |||||
No-load speed | rpm | 22000 | 24000 | |||||
No-load current | mA | 15 | 50 | |||||
Stall torque | mNm | 4.4 | 6.6 | |||||
Stall current | mA | 590 | 1480 | |||||
Nominal torque | mNm | 1 | 1.5 | |||||
Nominal speed | rpm | 16890 | 18540 | |||||
Nominal current | mA | 150 | 380 | |||||
Max. output power | W | 2.52 | 4.15 | |||||
Max. efficiency | % | 71 | 67 | |||||
Back-EMF constant | mV/rpm | 0.8 | 0.5 | |||||
Torque constant | mNm/A | 7.6 | 4.6 | |||||
Speed/torque gradient | rpm/mNm | 5000 | 3640 | |||||
Rotor inertia | gcm2 | 0.21 | 0.21 | |||||
Weight | g | 12 | 12 | |||||
Gearbox | ||||||||
Number of stages | 2 | 4 | 4 | 4 | 5 | 5 | 5 | |
Reduction ratio | 3,7,10 | 16,17,20,30,35 | 50,63 | 70,86 | 115,150 | 210,250 | 360 | |
Max. rated torque | mNm | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
Max. momentary torque | mNm | 60 | 90 | 120 | 150 | 180 | 210 | 240 |
Length(L) | mm | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
Shell material | Metal | |||||||
Gear processing technology | Metal CNC |
