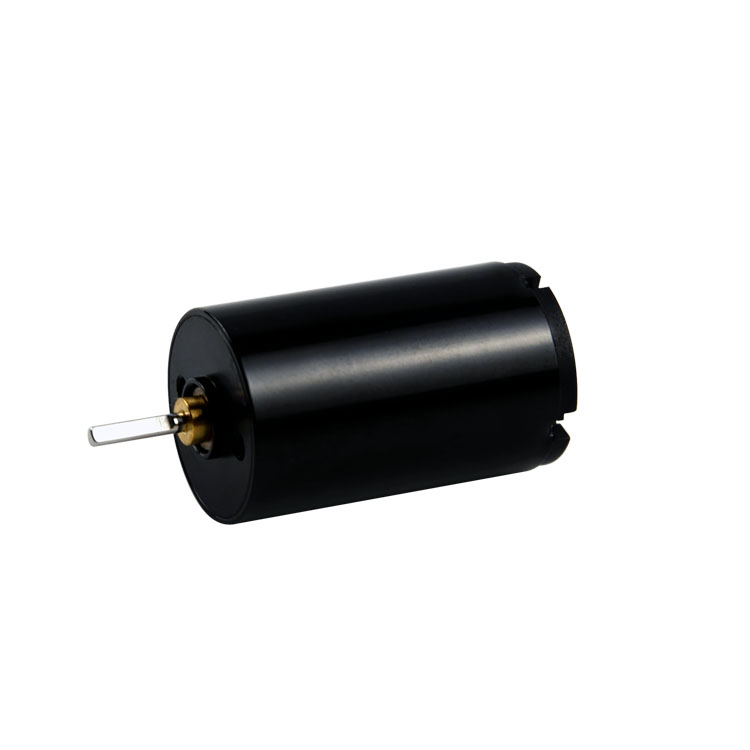

1630N5C

12~24V Precision DC Coreless Motor
Diameter: 16mm; Length: 30mm; Voltage: 12~24V; Max. output power: 3.5~9.9W; Speed: 8600~14000rpm; Nominal torque: 4~5mNm.

Applications: precision drives in medical equipment and devices, healthcare products, robotics, and industrial automation.
Options: Lead wires length, Shaft length, Special coils, Bearing type, Gearheads, Encoder.

Ask for datasheet

Customized Assessment

Ask for a quotation

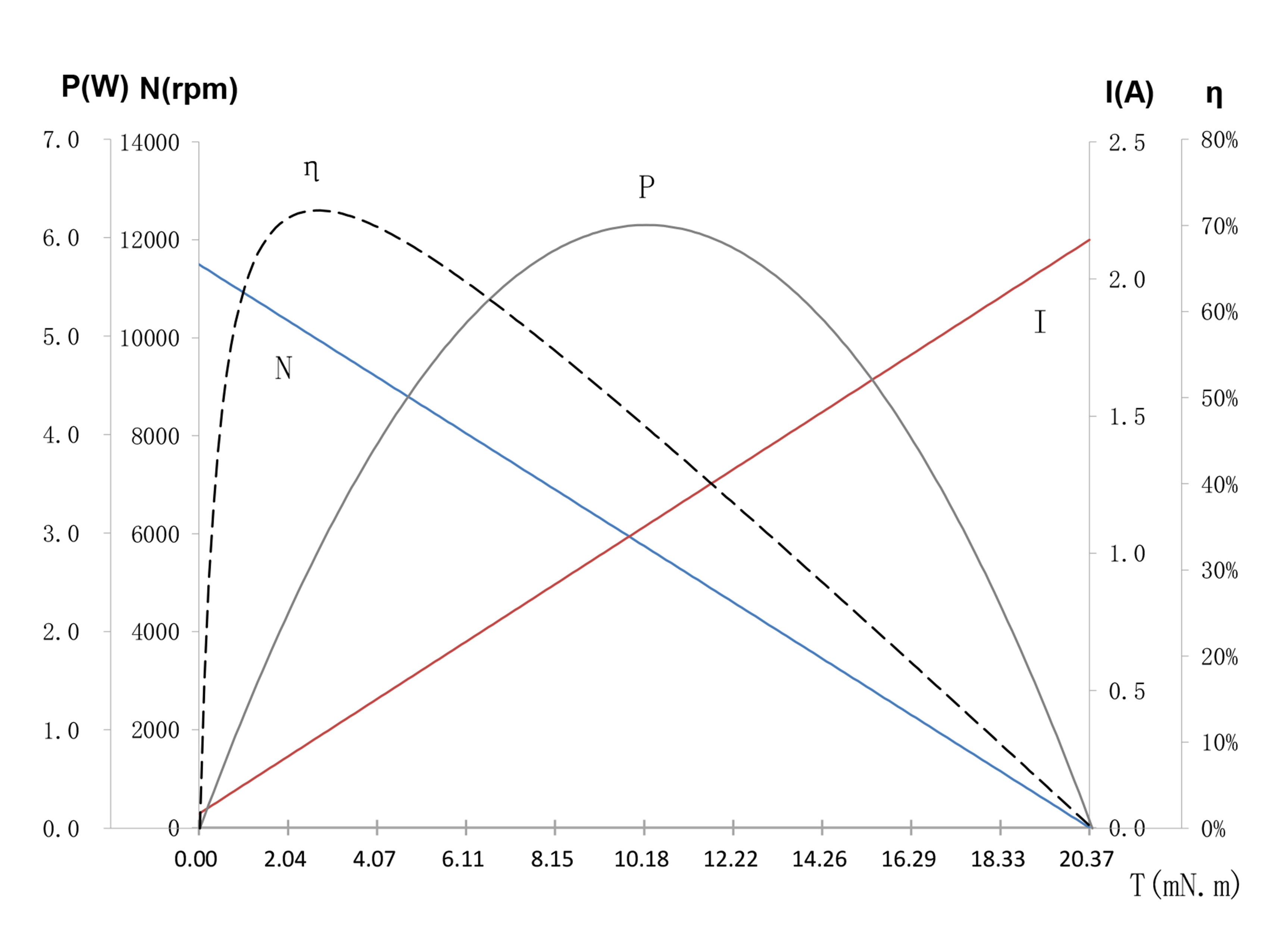

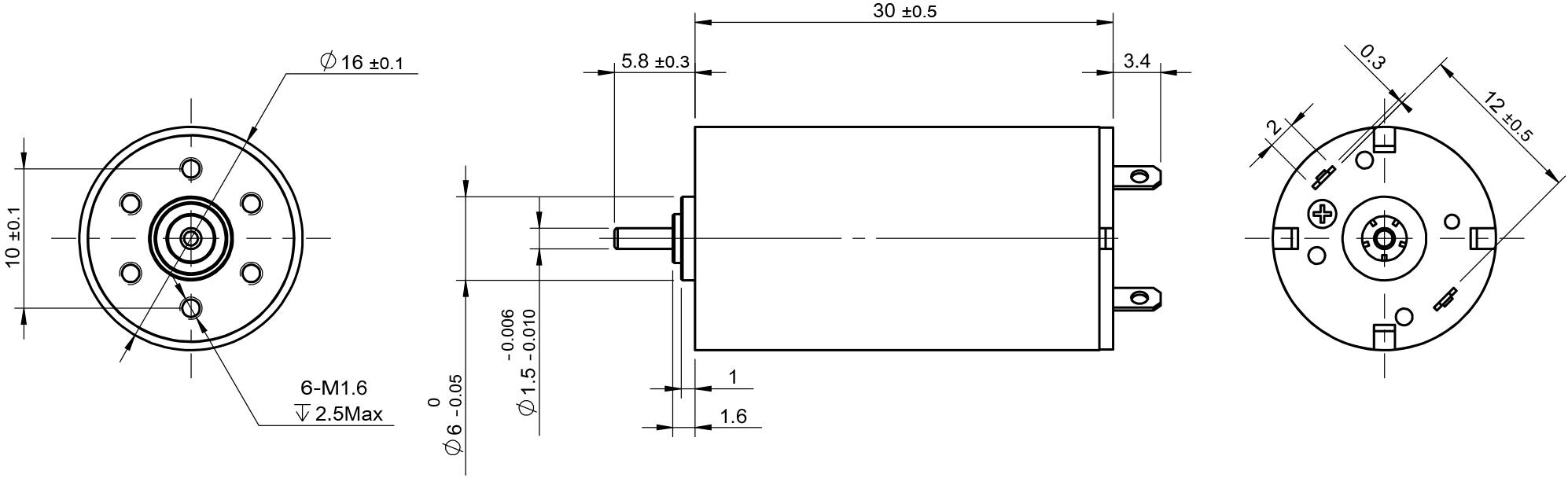

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	09-115-12.0	07-140-24.0	11-86-24.0
Voltage	V	12.0	24.0	24.0
Terminal resistance	Ω	5.6	14	38.3
No-load speed	rpm	11500	14000	8600
No-load current	mA	50	30	20
Stall torque	mNm	20.3	27	15.7
Stall current	mA	2140	1710	630
Nominal torque	mNm	4	5	4
Nominal speed	rpm	9240	11410	6410
Nominal current	mA	460	340	180
Max. output power	W	6.1	9.9	3.5
Max. efficiency	%	72	75	68
Back-EMF constant	mV/rpm	1	1.7	2.7
Torque constant	mNm/A	9.7	16.1	25.8
Speed/torque gradient	rpm/mNm	600	500	500
Rotor inertia	gcm²	0.95	0.95	0.95
Weight	g	25	25	25
