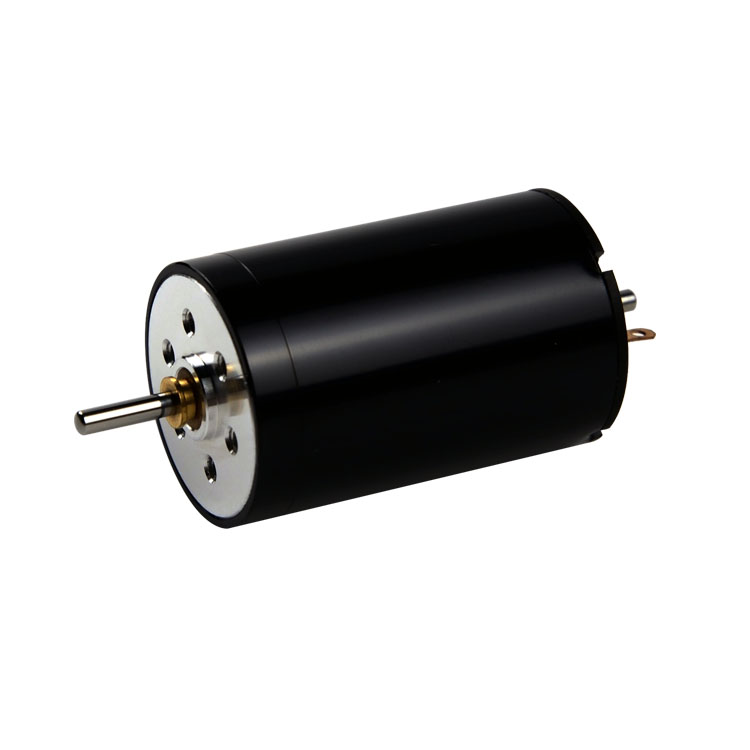

2233N5C

12~24V Precision DC Coreless Motor
Diameter: 22mm; Length: 33.7mm; Voltage: 12~24V; Max. output power: 8~16W; Speed: 7100~15500rpm; Nominal torque: 6~8mNm.

Applications: precision drives in medical equipment and devices, healthcare products, robotics, and industrial automation.
Options: Lead wires length, Shaft length, Special coils, Bearing type, Gearheads, Encoder.

Ask for datasheet

Customized Assessment

Ask for a quotation

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	21-155-12.0	23-96-24.0	01-71-24.0
Voltage	V	12.0	24.0	24.0
Terminal resistance	Ω	2.1	11.8	17.0
No-load speed	rpm	15500	9600	7100
No-load current	mA	180	40	30
Stall torque	mNm	39.6	46.6	43.6
Stall current	mA	5710	2030	1410
Nominal torque	mNm	6	8	8
Nominal speed	rpm	13150	7950	5800
Nominal current	mA	1020	380	280
Max. output power	W	16.08	11.72	8.11
Max. efficiency	%	68	74	73
Back-EMF constant	mV/rpm	0.7	2.5	3.3
Torque constant	mNm/A	7.2	23.4	31.6
Speed/torque gradient	rpm/mNm	400	200	200
Rotor inertia	gcm²	2.5	2.5	2.5
Weight	g	52	52	52
