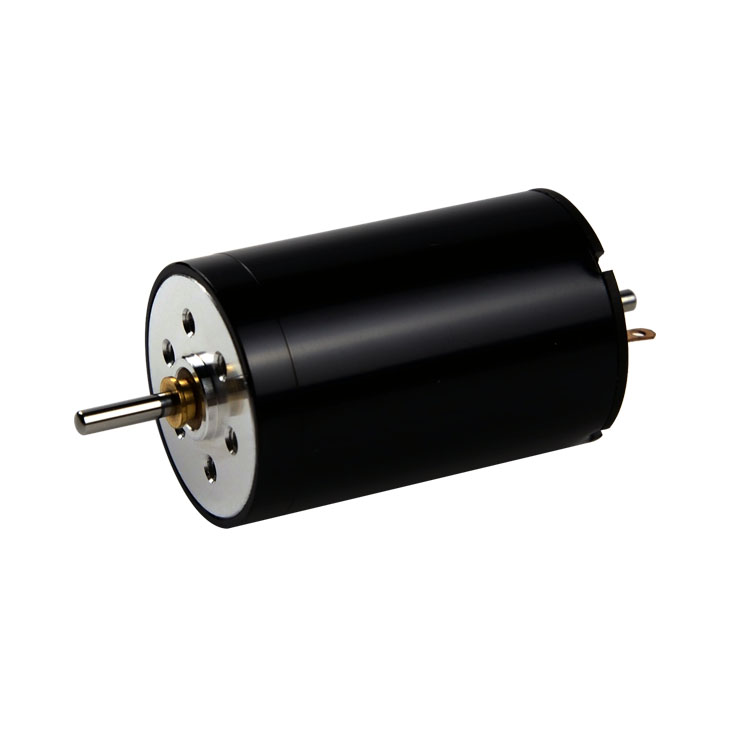

2233N5C2B

7.4~24V Precision DC Coreless Motor
Diameter: 22mm; Length: 33.7mm; Voltage: 7.4~24V; Max. output power: 4.2~6W; Speed: 7700~8500rpm; Nominal torque: 5~6mNm.

Applications: precision drives in medical equipment and devices, healthcare products, robotics, and industrial automation.
Options：Lead wires length, Shaft length, Special coils, Bearing type, Gearheads, Encoder.

Ask for datasheet

Customized Assessment

Ask for a quotation

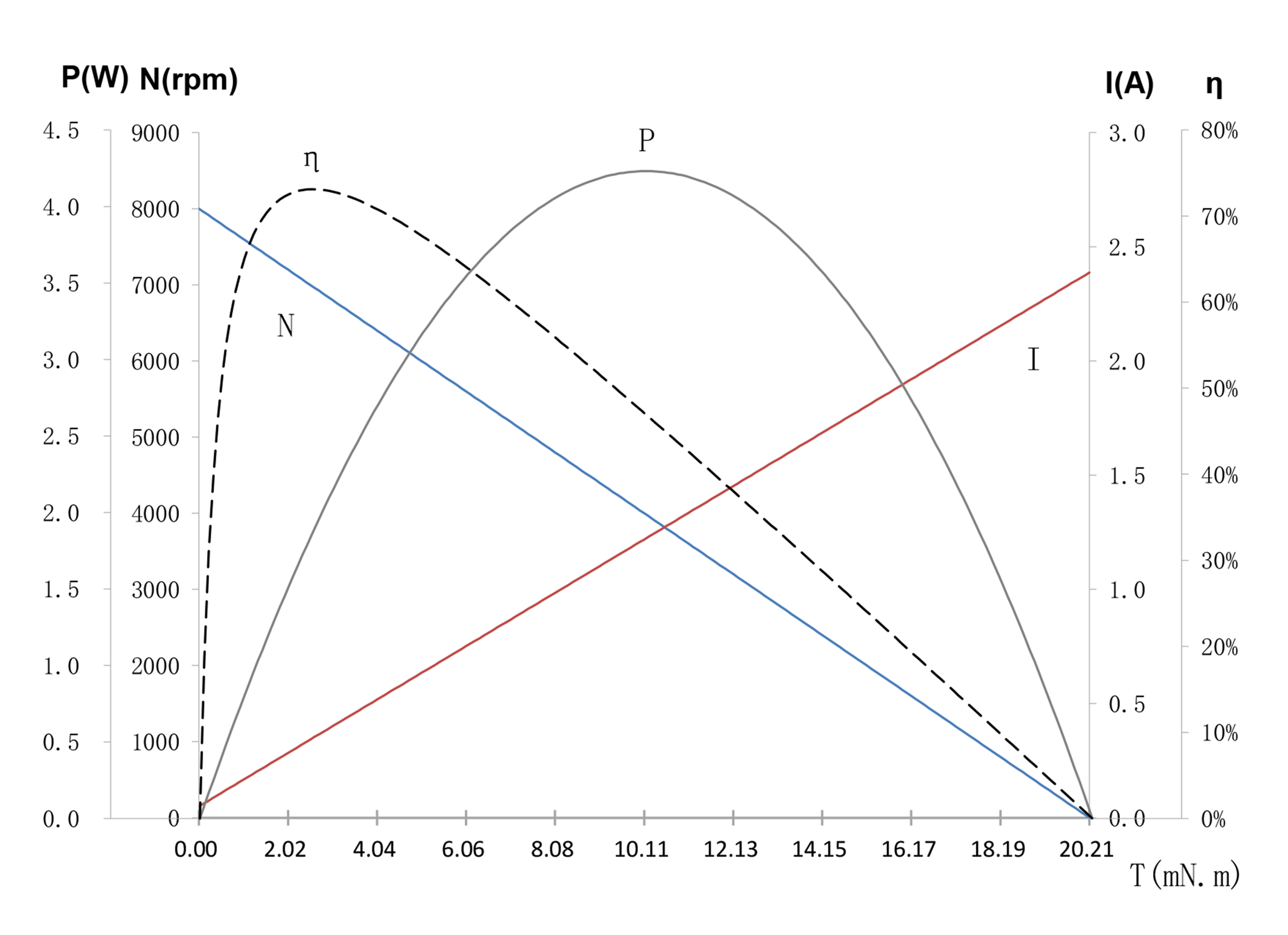

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	08-80-7.4	14-85-12.0	11-77-24.0
Voltage	V	7.4	12.0	24.0
Terminal resistance	Ω	3.1	5.8	24.5
No-load speed	rpm	8000	8500	7700
No-load current	mA	50	35	12
Stall torque	mNm	20.2	27.0	28.5
Stall current	mA	2390	2070	980
Nominal torque	mNm	5.0	6.0	6.0
Nominal speed	rpm	6020	6610	6080
Nominal current	mA	630	490	220
Max. output power	W	4.2	6.0	5.7
Max. efficiency	%	73	76	79
Back-EMF constant	mV/rpm	0.9	1.4	3.1
Torque constant	mNm/A	8.6	13.3	29.4
Speed/torque gradient	rpm/mNm	400	300	300
Rotor inertia	gcm²	2.5	2.5	2.5
Weight	g	52	52	52
