BS1630NH2B

24V Inner Rotor, Slotted, Sensored
Diameter: 16mm; Length:30mm; Voltage: 24V; Max. output power: 7.4~16W; Speed: 10000~20000rpm; Nominal torque: 7mNm.

Applications: precision drives in medical equipment, industrial automation fields.
Options: Lead wires length, Shaft length, Special coils, Bearing type, Gearheads, Hall sensor, Encoder, Driver.

Ask for datasheet

Customized Assessment

Ask for a quotation

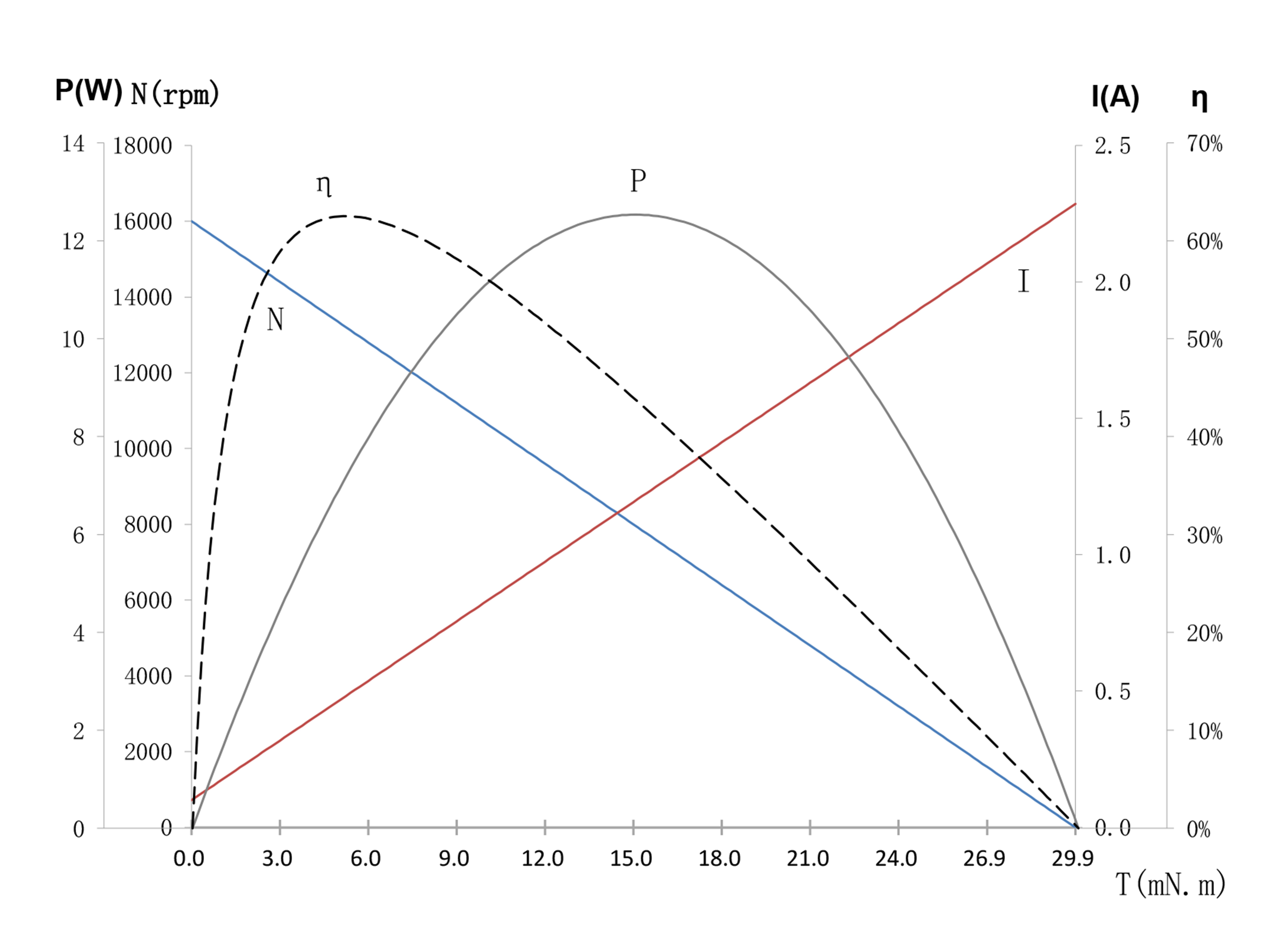

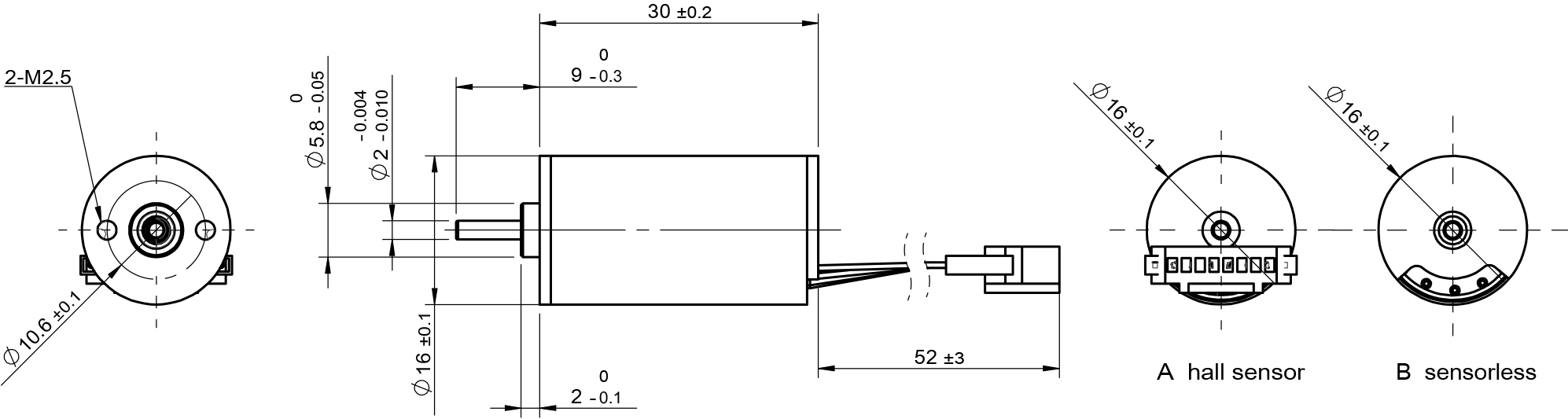

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	01-160-24.0	02-100-24.0	03-200-24.0
Voltage	V	24.0	24.0	24.0
Terminal resistance	Ω	10.5	16.8	8.4
No-load speed	rpm	16000	10000	20000
No-load current	mA	0.1	0.1	0.1
Stall torque	mNm	29.9	28	30.5
Stall current	mA	2.3	1.5	2.9
Nominal torque	mNm	7	7	7
Nominal speed	rpm	12000	7500	15300
Nominal current	mA	0.6	0.5	0.8
Max.output power	W	12	7.4	16
Max.efficiency	%	62	54	66
Back-EMF constant	mV/rpm	1.43	2.2	1.15
Torque constant	mNm/A	13.6	21.3	11
KV Value	rpm/V	667	416	833
Speed/torque gradient	rpm/mNm	534	353	656
Rotor inertia	gcm2	0.36	0.36	0.36
Weight	g	30	30	30
