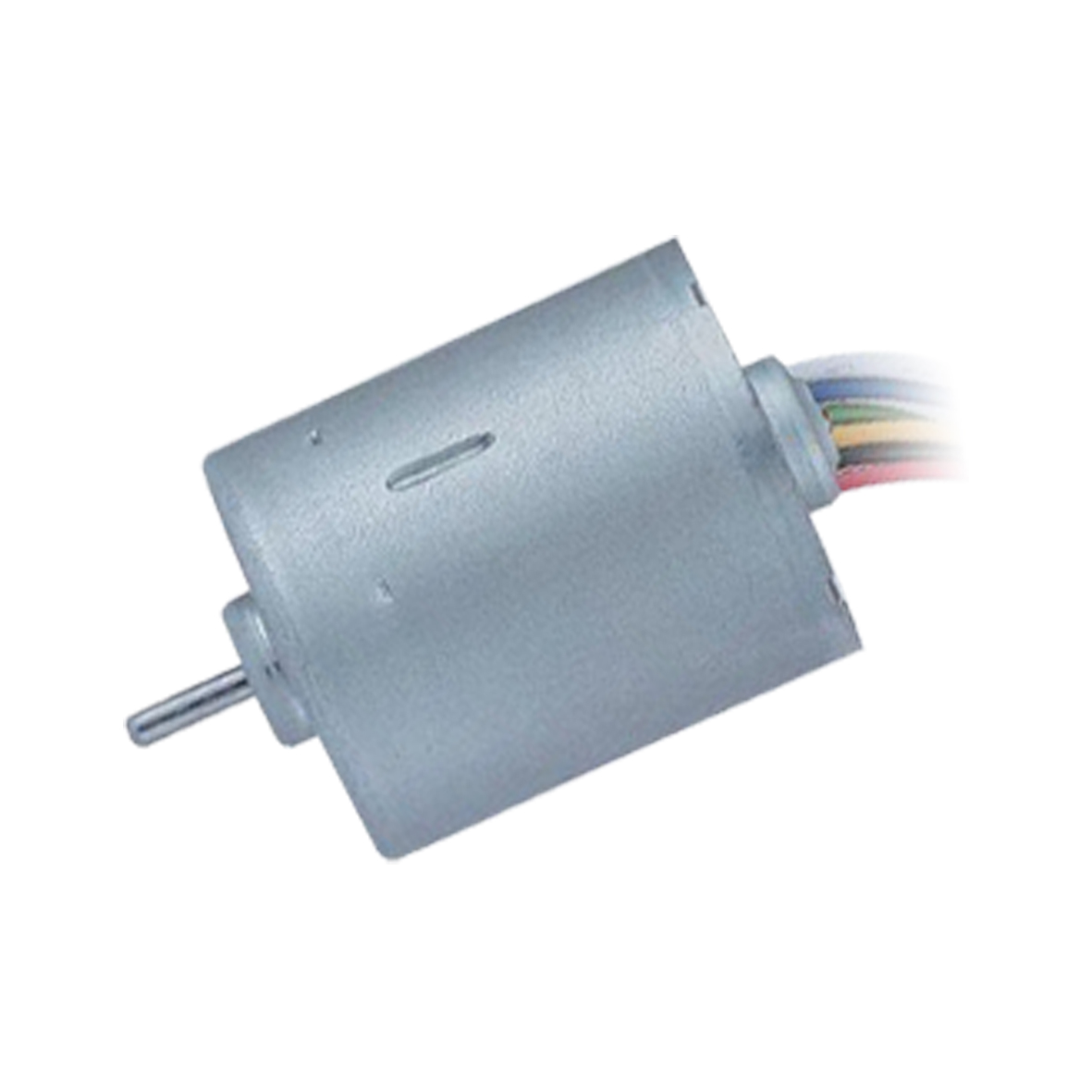

BS2430NBIEH2B

12V Inner Rotor With Integrated Driver, Slotted
Diameter: 24.4mm; Length:30.8mm; Voltage: 12V; Max. output power: 4.2~9.8W; Speed: 4800~5200rpm; Nominal torque: 4.9~8.3mNm.

Applications: precision drives in medical equipment, industrial automation fields.
Options: Lead wires length, Shaft length, Special coils, Bearing type, Gearheads, Hall sensor, Encoder, Driver.

Ask for datasheet

Customized Assessment

Ask for a quotation

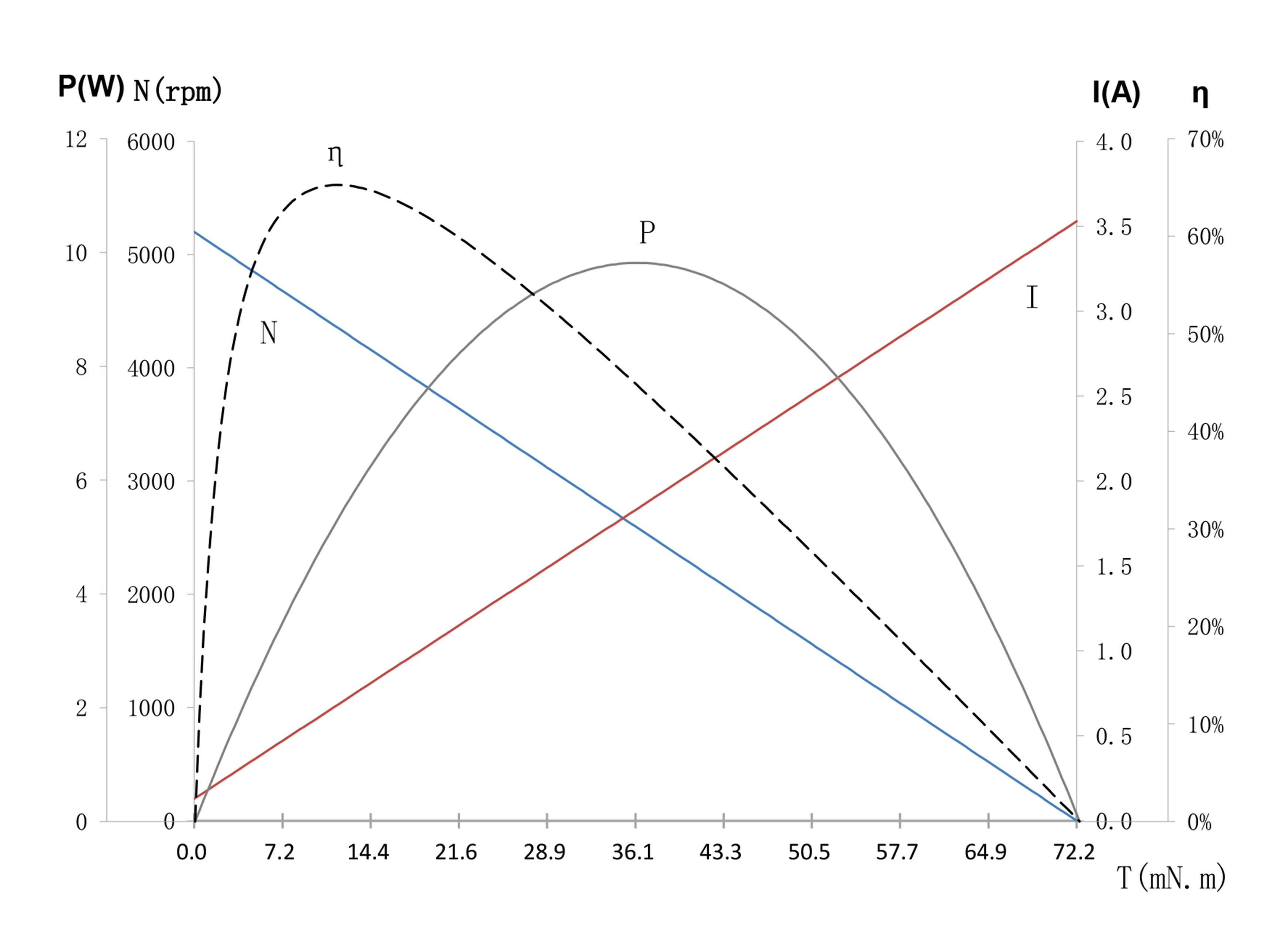

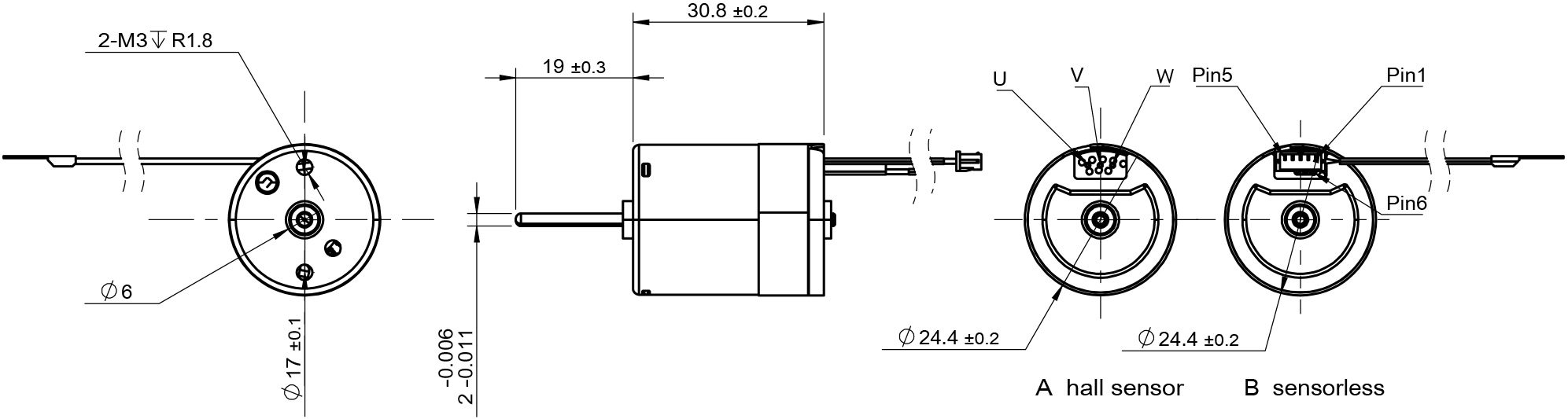

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	03-50-12.0	04-53-12.0
Voltage	V	12.0	12.0
Terminal resistance	Ω	7.5	3.4
No-load speed	rpm	4800	5200
No-load current	A	0.1	0.13
Stall torque	mNm	33.5	72.2
Stall current	A	1.6	3.53
Nominal torque	mNm	4.9	8.3
Nominal speed	rpm	3800	4100
Nominal current	A	0.35	0.55
Max.output power	W	4.2	9.8
Max.efficiency	%	56	65
Back-EMF constant	mV/rpm	2.34	2.22
Torque constant	mNm/A	22.38	21.23
KV Value	rpm/V	400	433
Speed/torque gradient	rpm/mNm	200	133
Rotor inertia	gcm2	9	9
Weight	g	62	62
