Frameless Torque Motor

BS6008NFL

60mm Brushless frameless torque motor

Diameter: 60mm; Length:18mm; Voltage: 48V; Max. output power: 56~922W; Speed: 1640~6560rpm; Nominal torque: 0.4-0.56N.m.

Applications: Robot, industrial automation fields.

Options: Lead wires length, Shaft length, Special coils, Bearing type, Gearheads, Hall sensor, Encoder, Driver.

Ask for datasheet
Customized Assessment
Ask for a quotation

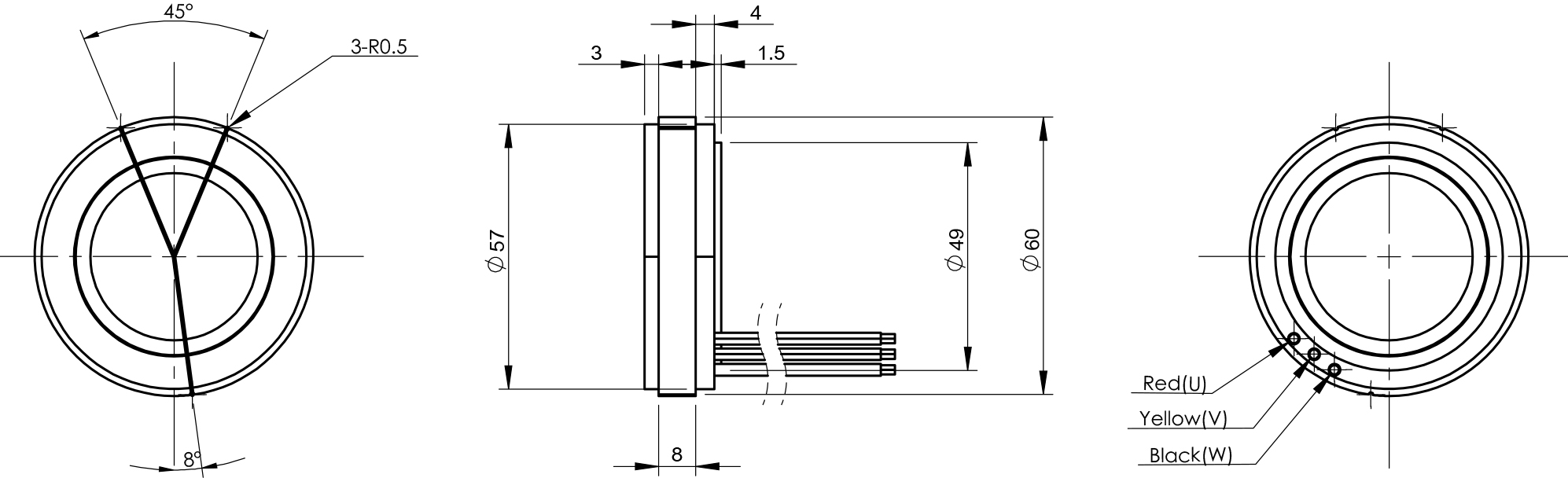

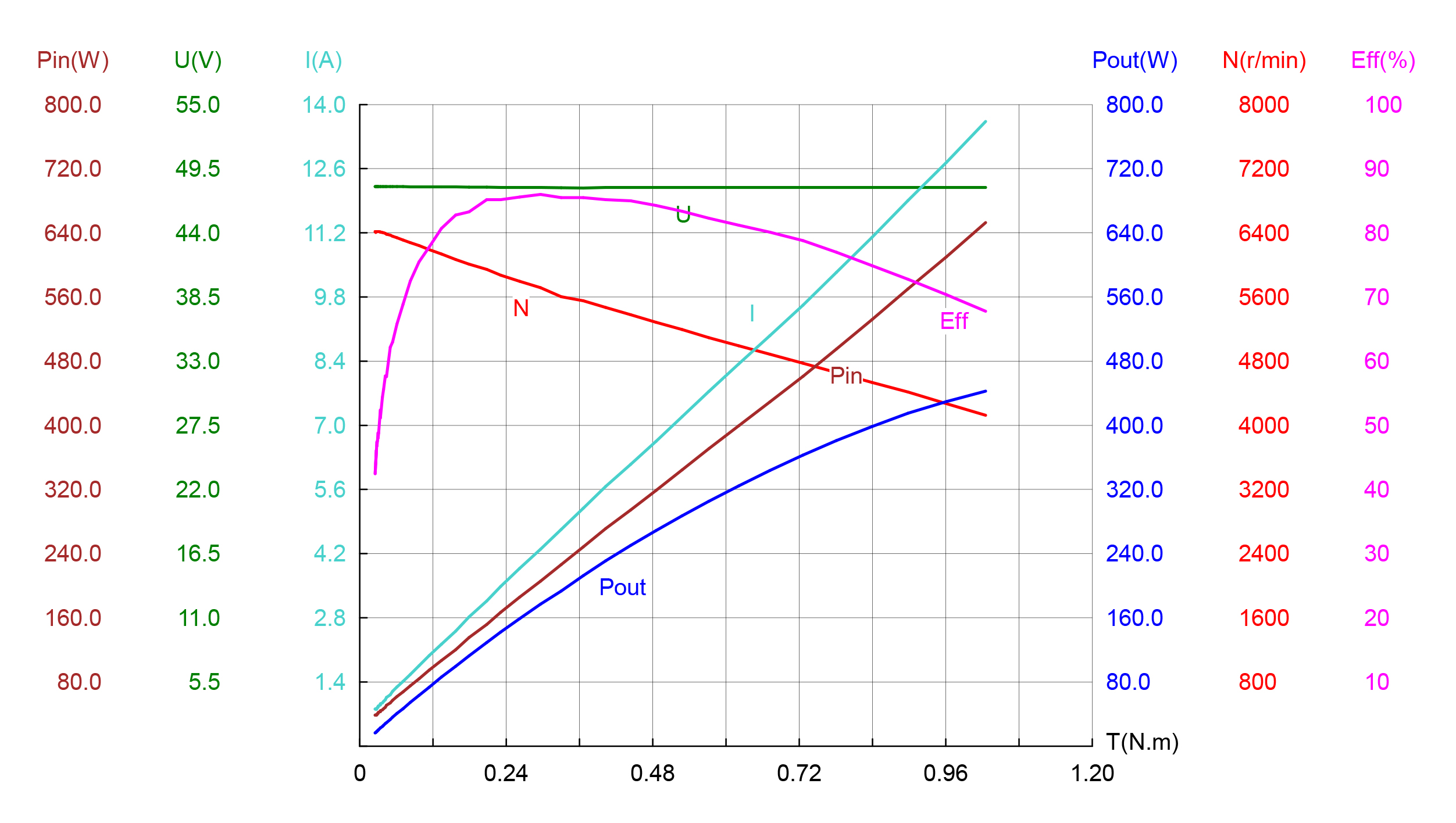

Parameter Outline Drawing Characteristic Curve Download
Characteristics Unit  -16-48.0 -32-48.0  -65-48.0
Voltage V 48.0 48.0 48.0
Line resistance Ω 9.92 2.48 0.6
Line inductance mH 4.16 1.04 0.26
No-load speed rpm 1640 3280 6560
No-load current A 0.08 0.15 0.3
Stall torque N.m 1.3 2.7 5.4
Stall current A 4.8 19.4 77.4
Nominal torque N.m 0.56 0.52 0.40
Nominal speed rpm 841 2377 5459
Nominal current A 2.1 3.9 6.1
Max.output power W 56 229 922
Max.efficiency % 86 86 86
Back-EMF constant mV/rpm 28.8 14.5 7.3
Torque constant Nm/A 0.28 0.14 0.07
                 KV Value               rpm/V 34.2 68.3 136.7
       Speed/torque gradient              rpm/Nm 1251 1232 1222
Weight g 119 119 119
