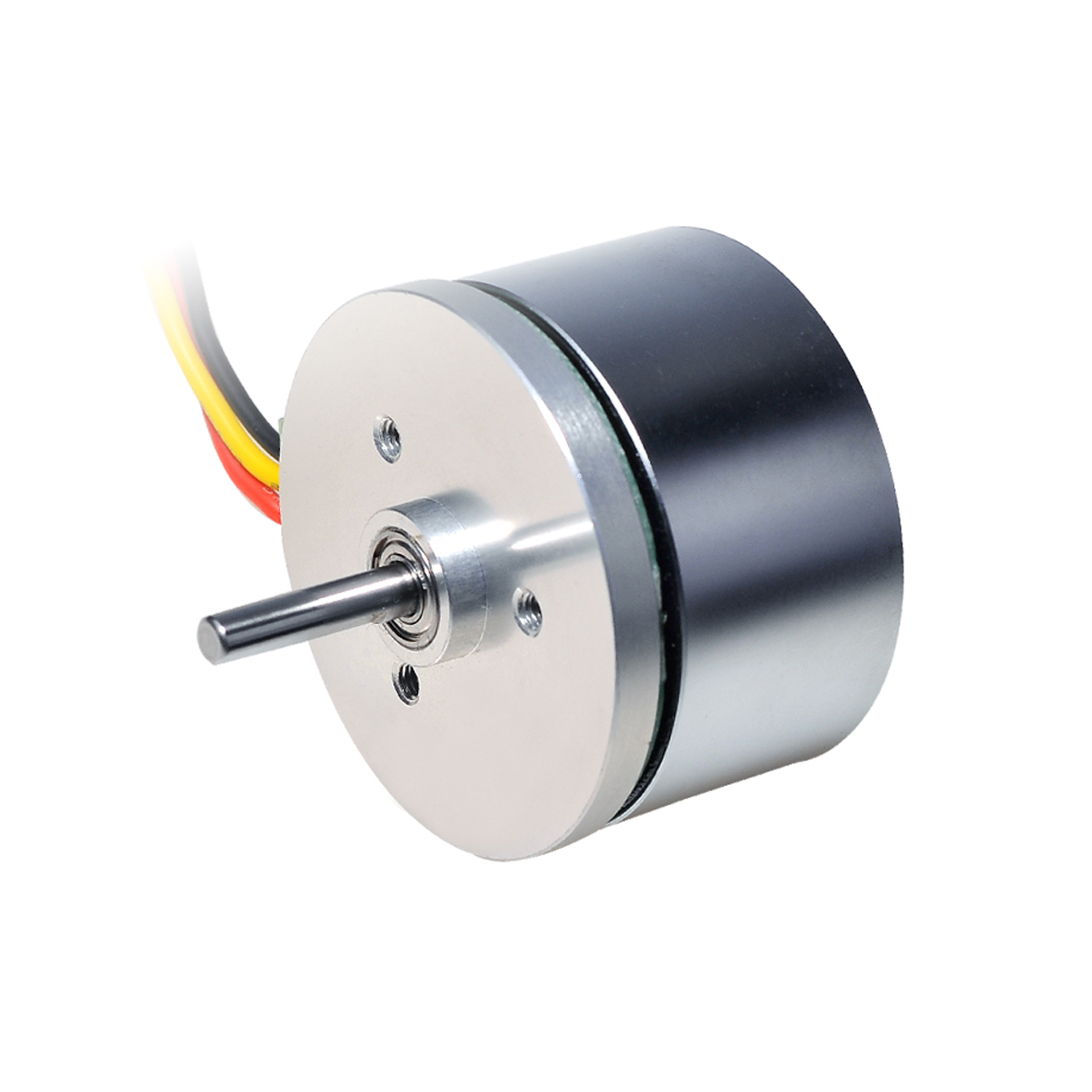

BO4326NB2B

43mm high-torque gimbal motor
Diameter: 42.4mm; Length: 26.6mm; Voltage: 24.0v, 36.0v, 48.0v; Max output power: 569 - 711W; Speed: 9200rpm; Rated torque: 190 - 194mNm.

Application : UAV gimbal, LiDAR, laser scanning, handheld gimbal.
Customizable: Specifications, wires, shaft length, performance, bearings, gearboxes, encoders, driver.

Ask for datasheet

Customized Assessment

Ask for a quotation

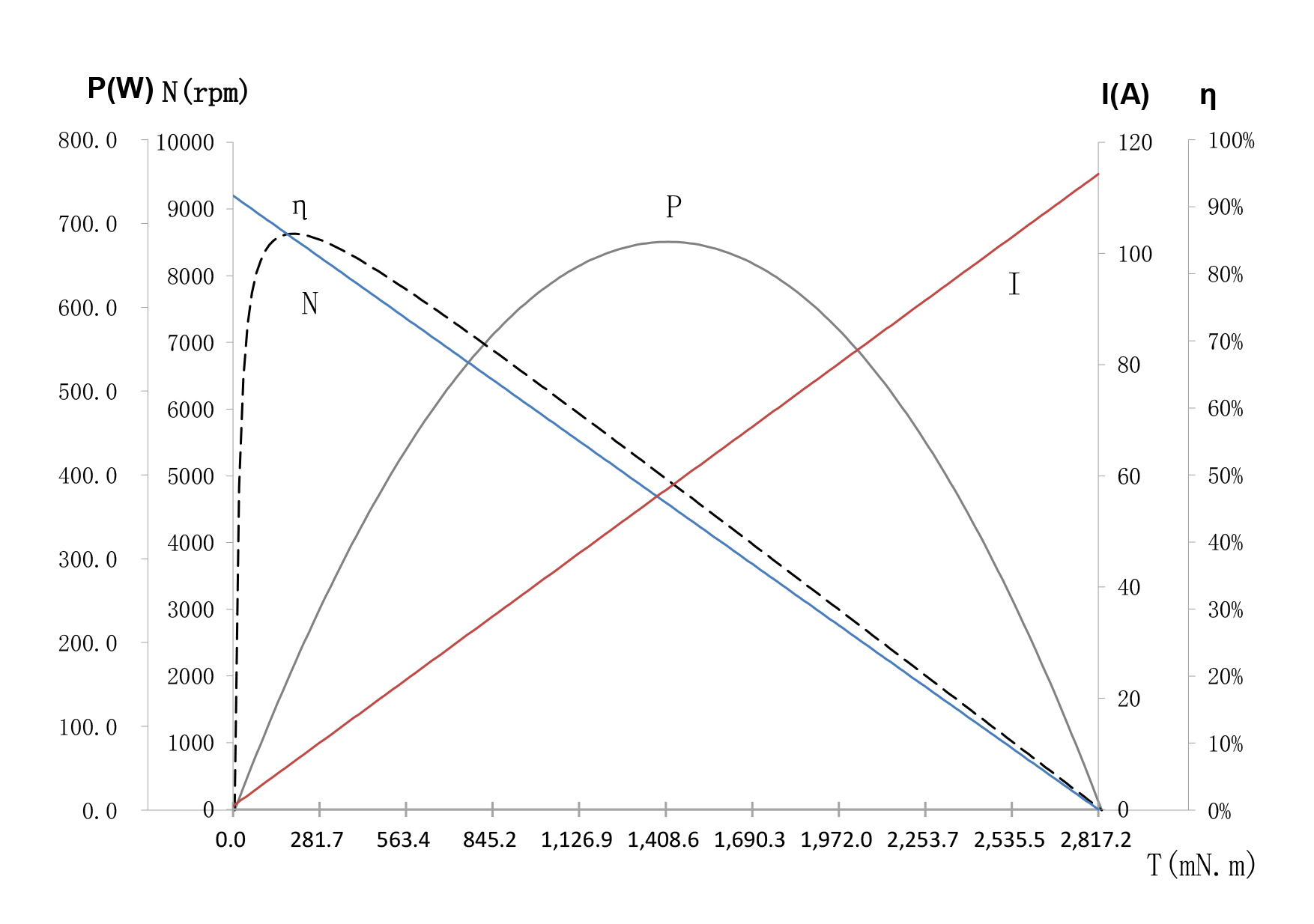

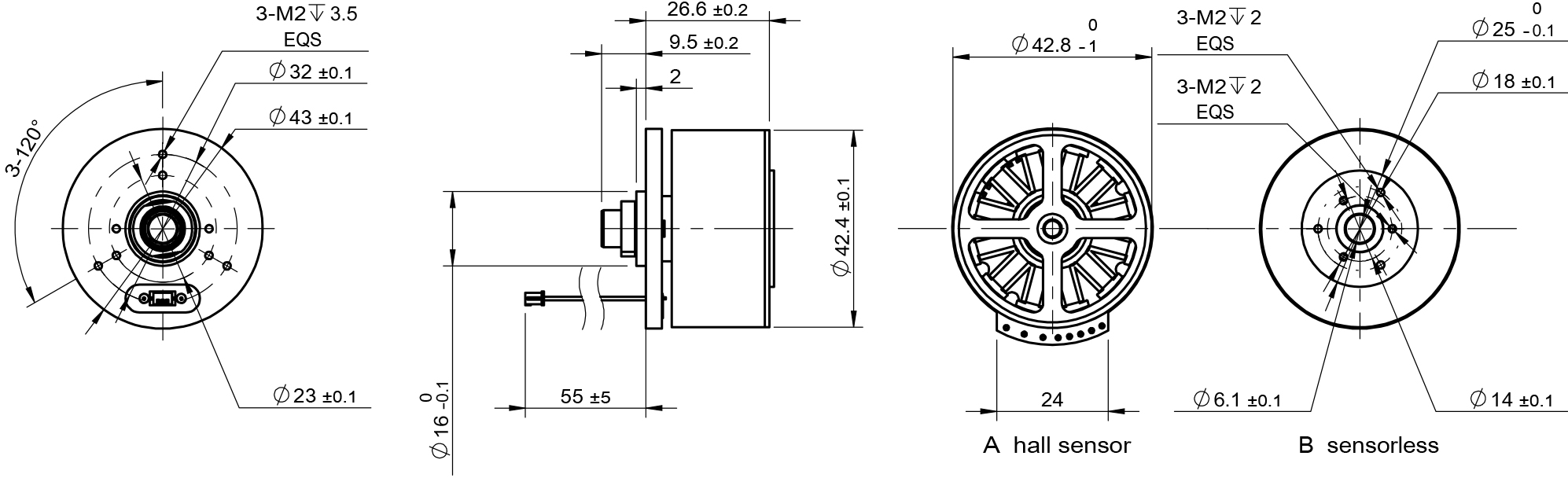

Parameter Outline Drawing Characteristic Curve Download

Characteristics	UNIT	03-92-24.0	02-92-36.0	01-92-48.0
Voltage	V	24.0	36.0	48.0
Terminal resistance	Ω	0.21	0.45	1
No-load speed	rpm	9200	9200	9200
No-load current	A	0.6	0.5	0.3
Stall torque	mNm	2817	2952	2361
Stall current	A	114	80	48
Nominal torque	mNm	194	190	192
Nominal speed	rpm	7000	7000	7000
Nominal current	A	7.2	4.8	3.6
Max.output power	W	678	711	569
Max.efficiency	%	86	84.8	84.8
Back-EMF constant	mV/rpm	2.6	3.89	5.18
Torque constant	mNm/A	24.8	37.1	48.5
KV Value	rpm/V	383	256	192
Speed/torque gradient	rpm/mNm	3.3	3.1	3.9
Rotor inertia	gcm²	153	153	153
Weight	g	132	132	132
