C1631...14MS...

Precision Gearmotor
Diameter: 16mm; Length: 31~39mm; Voltage: 6V; Gearbox: Metal / Metal CNC; Matched motor type: Core motor.

Applications: medical equipment, scientific instruments, industrial equipment, etc.
Options: Lead wires length, Shaft length, Special coils, Gearheads.

Ask for datasheet

Customized Assessment

Ask for a quotation

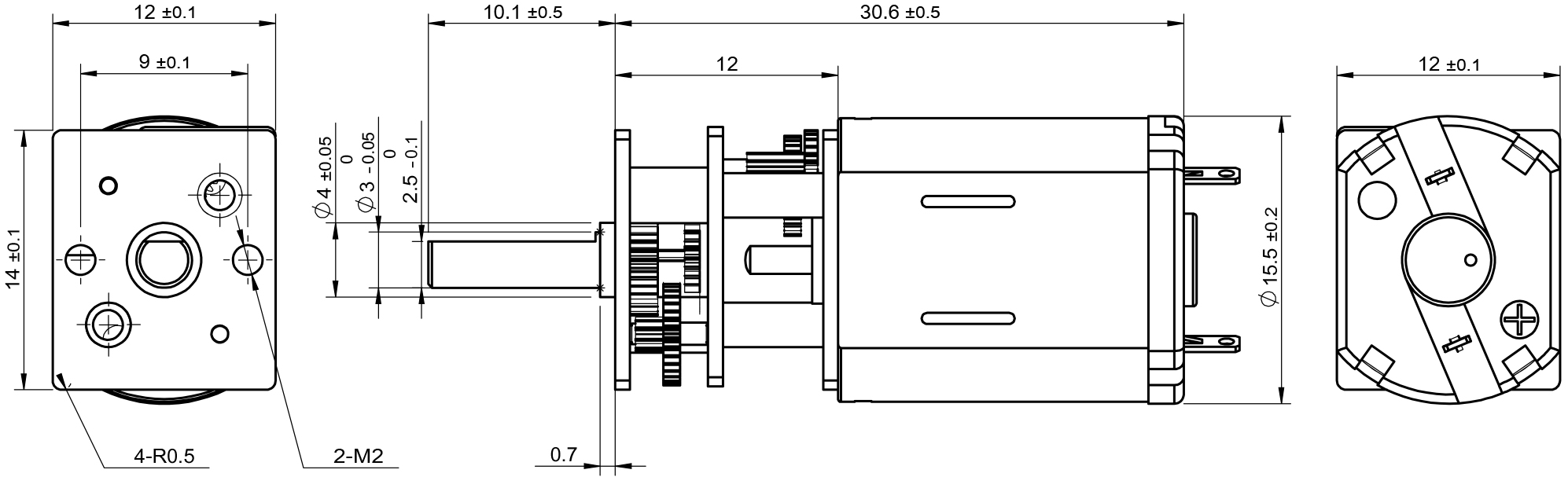

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	C1620F13-0032		C1627F13-0013		C1627F13-0050
Voltage	V	6.0		12.0		4.5
Terminal resistance	Ω	10.3		28.2		5.5
No-load speed	rpm	11700		12100		10500
No-load current	mA	51		25		60
Stall torque	mNm	2.36		3.23		2.78
Stall current	mA	580		447		790
Nominal torque	mNm	2.1		0.88		0.686
Nominal speed	rpm	1305		8800		7910
Nominal current	mA	520		140		240
Max. output power	W	0.73		1.02		0.77
Max. efficiency	%	50		49.9		52.9
Back-EMF constant	mV/rpm	0.47		0.93		0.4
Torque constant	mNm/A	4.47		7.65		3.81
Speed/torque gradient	rpm/mNm	4950		3750		3776
Rotor inertia	gcm2	0.5		0.5		0.5
Weight	g	10.7		10.7		10.7
Gearbox
Number of stages		2	2	4	4
Reduction ratio		63	115,130,150,180	210,250,260	300,350
Max. rated torque	mNm	60	70	80	100
Max. momentary torque	mNm	180	210	240	300
Length（L）	mm	12	12	12	12
Shell material		Metal
Gear processing technology		Metal CNC
