VL8.520N5M

8.5mm DC Coreless Motor Series

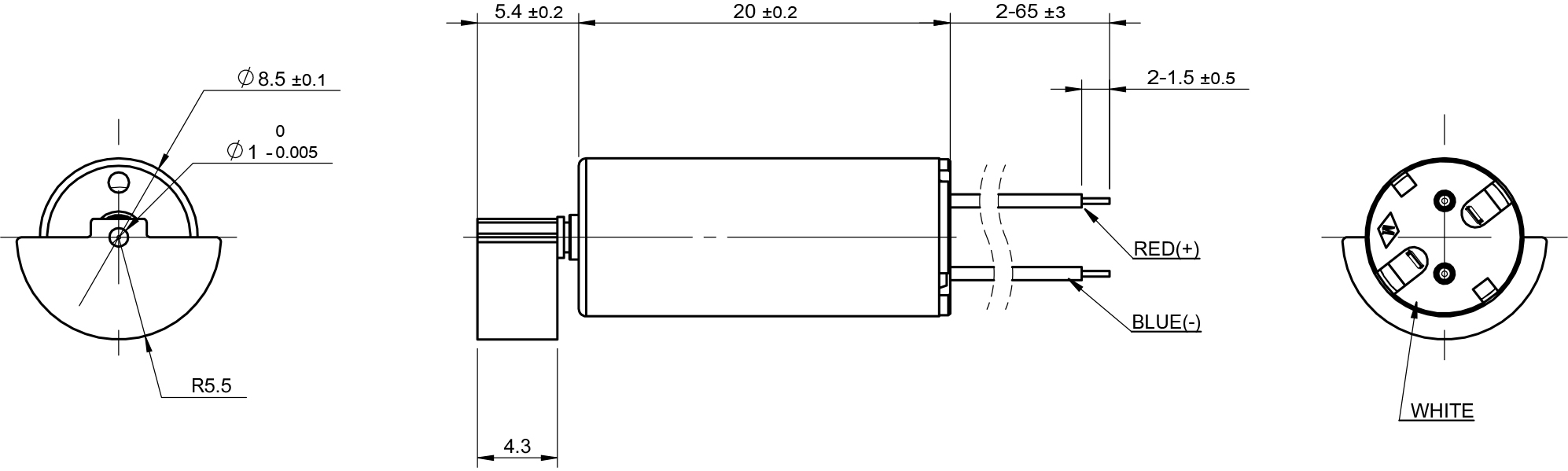

Width: 8.5mm; Length: 20mm; Voltage: 3.0v; Speed: 6500-10400rpm; Terminal resistance: 3.75-8.35Ω.

Applications: wearable products, mobile phones, tablet PC’s, health care products, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	62-96-3.0	82-93-3.0	74-96-3.0
Voltage	V	3.0	3.0	3.0
Terminal resistance	Ω	8.35	3.75	8.35
Speed	rpm	6500	10400	7300
Current	mA	60	85	40
Starting voltage	V	0.8	0.8	0.8
Stall current	mA	360	800	360
Weight	g	8.7	6.6	6.8
Operating temperature range	°C	-20～+65	-20～+65	-20～+65
