VL0716N5M

7mm DC Coreless Motor Series

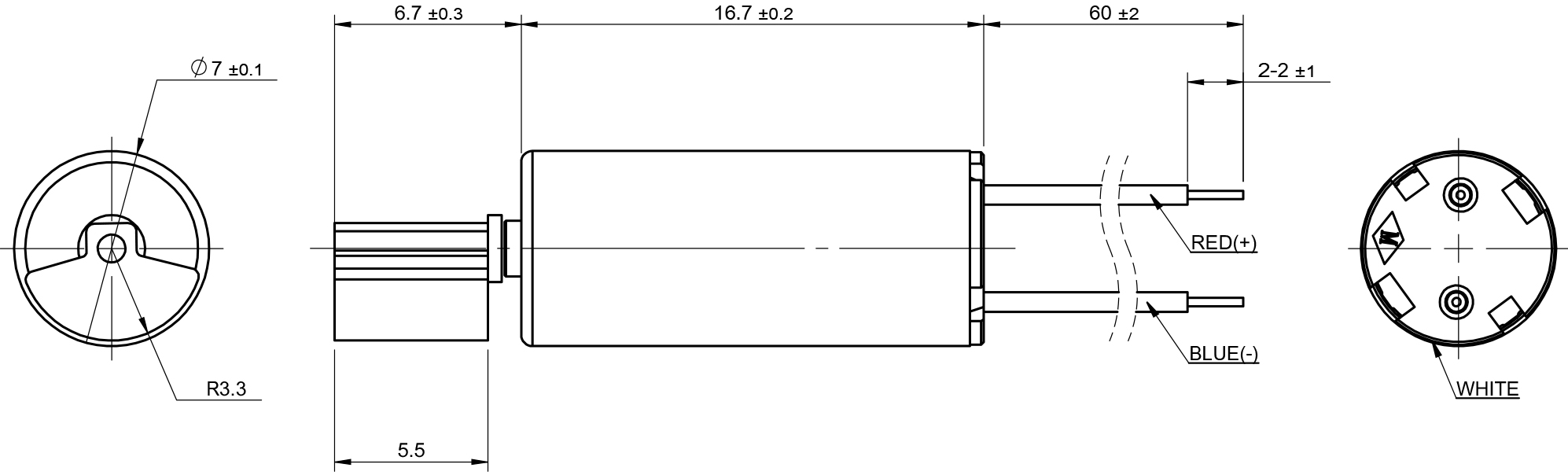

Width: 7mm; Length: 16.7mm; Voltage: 3.0v, 3.7v; Speed: 10500-14000rpm; Terminal resistance: 5.4-9.7Ω.

Applications: wearable products, mobile phones, tablet PC’s, health care products, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	12-105-3.0	61-130-3.0	91-140-3.7
Voltage	V	3.0	3.0	3.7
Terminal resistance	Ω	9.7	5.6	5.4
Speed	rpm	10500	13000	14000
Current	mA	110	180	260
Starting voltage	V	0.8	0.8	0.8
Stall current	mA	300	500	600
Weight	g	4	4	4
Operating temperature range	°C	-20～+80	-20～+80	-20～+80
