Products Brushless DC Motor Outer Rotor BO2316N2B
BO2316N2B
Outer Rotor

BO2316N2B

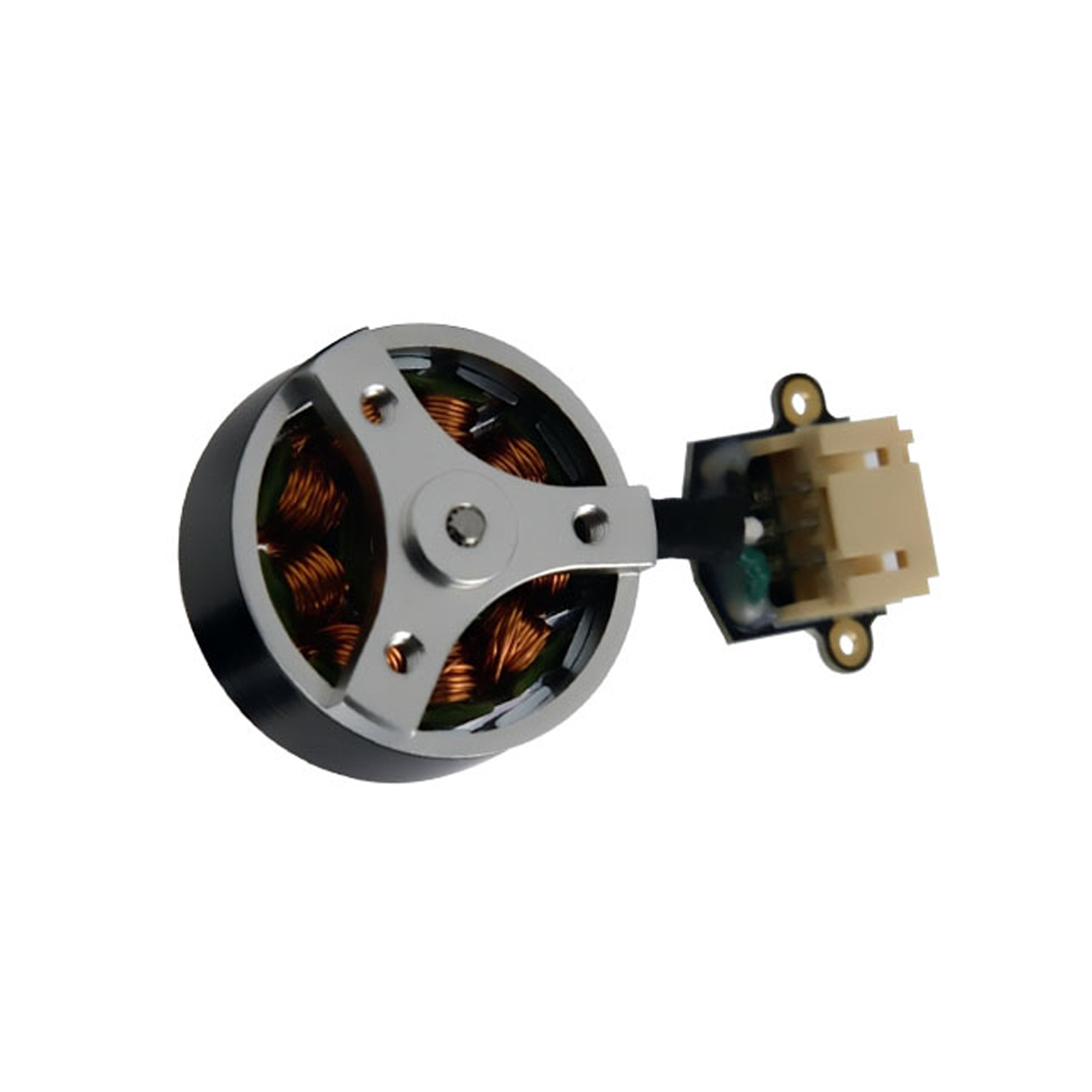

6V Outer Rotor Brushless DC Motor

Diameter: 23mm; Length: 15.9mm; Voltage: 6.0v, 9.0v, 12.0v; Max output power: 70-79W; Speed: 17000rpm; Rated torque: 30mNm.

Application : UAV, Plane, Aeromodelling, etc.
Customizable: Specifications, wires, shaft length, performance, bearings, gearbox, Hall sensors, driver

Ask for datasheet
Customized Assessment
Ask for a quotation

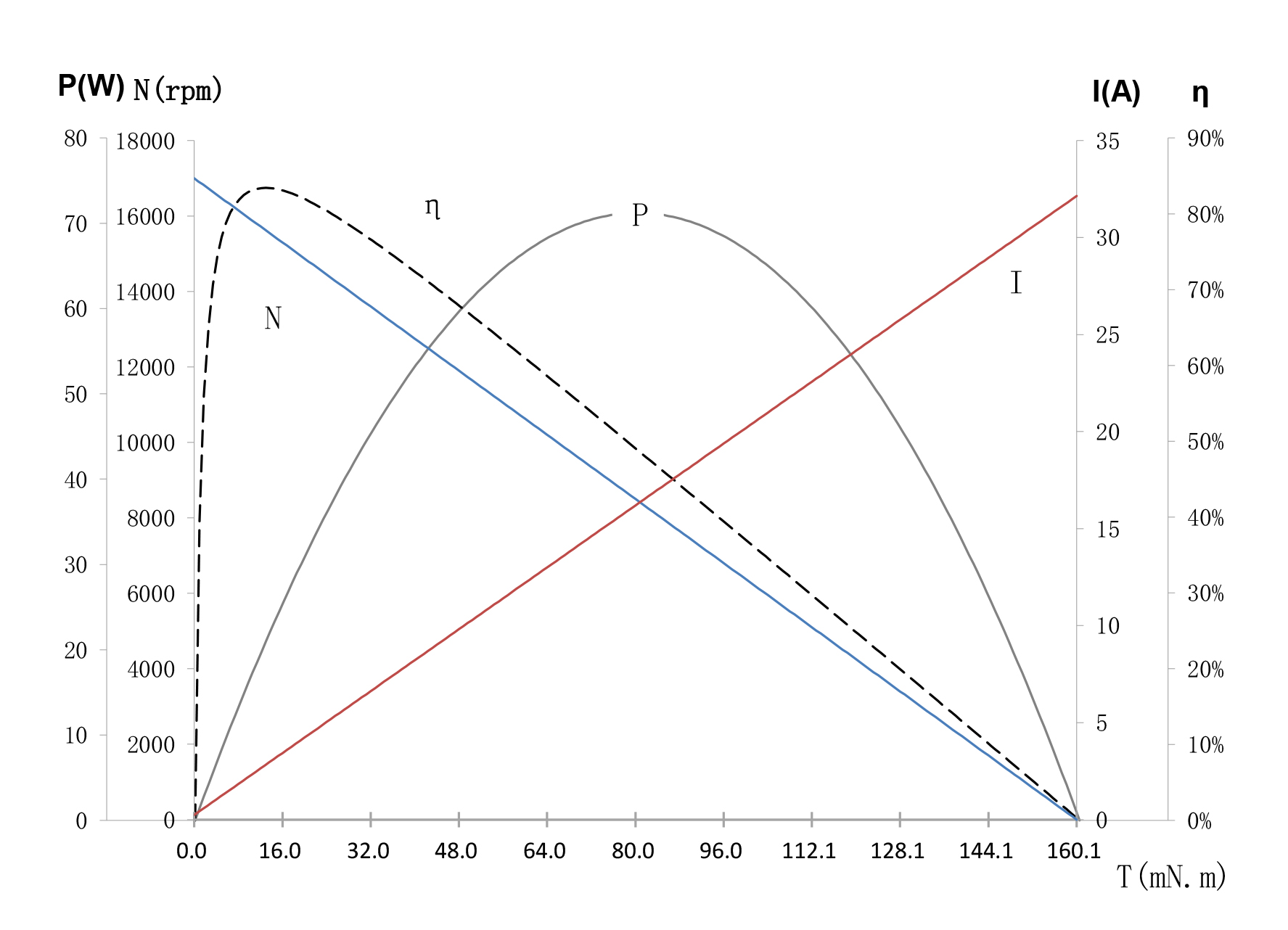

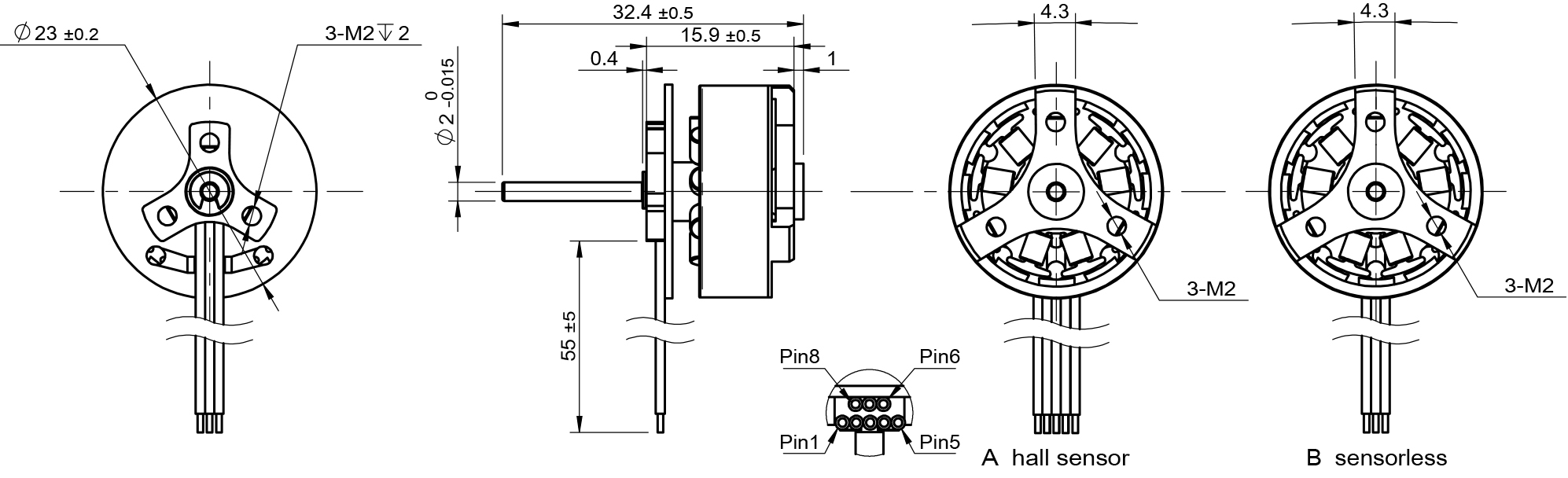

Parameter Outline Drawing Characteristic Curve Download
Characteristics UNIT 01-170-6.0 02-170-9.0 03-170-12.0
Voltage V 6.0 9.0 12.0
Terminal resistance Ω 0.13 0.28 0.45
No-load speed rpm 17000 17000 17000
No-load current A 0.34 0.24 0.19
Stall torque mNm 158 160 177
Stall current A 47.2 32.1 26.7
Nominal torque mNm 30.4 30 30
Nominal speed rpm 7310 9920 10560
Nominal current A 8.1 6.3 4.9
Max.output power W 70 71 79
Max.efficiency % 83.6 83.5 83.6
Back-EMF constant mV/rpm 0.4 0.5 0.7
Torque constant mNm/A 3.4 5 6.7
KV Value rpm/V 2810 1887 1420
Speed/torque gradient rpm/mNm 106.6 105.9 96.4
Rotor inertia gcm2 6.3 6.3 6.3
Weight g 15 15 15
BO2316N2B
