VL1015N5M

10mm DC Coreless Motor Series

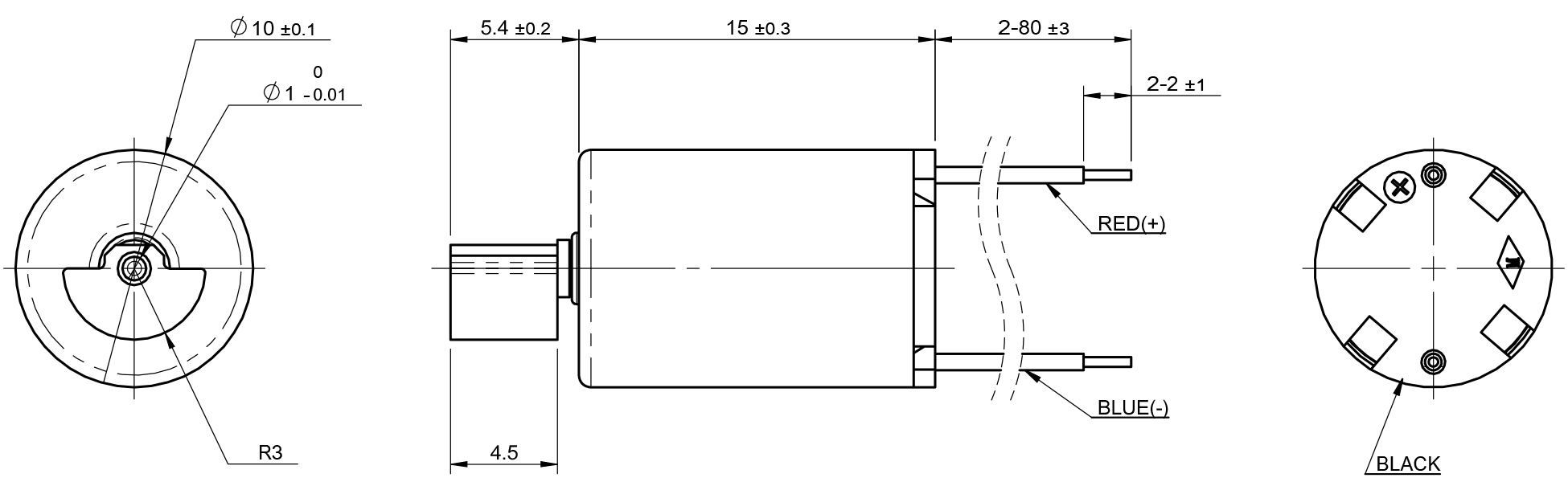

Width: 10mm; Length: 15mm; Voltage: 1.3v, 3.0v, 5.0v; Speed: 6670-12900rpm; Terminal resistance: 3.5-10.5Ω.

Applications: wearable products, mobile phones, tablet PC’s, health care products, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	96-129-5.0	99-66-3.0	65-70-1.3
Voltage	V	5.0	3.0	1.3
Terminal resistance	Ω	10.5	8.35	3.5
Speed	rpm	12900	6670	7000
Current	mA	80	137	140
Starting voltage	V	0.8	0.8	0.8
Stall current	mA	470	332	380
Weight	g	5.8	7.85	3.5
Operating temperature range	°C	-20～+65	-20～+65	-20～+65
