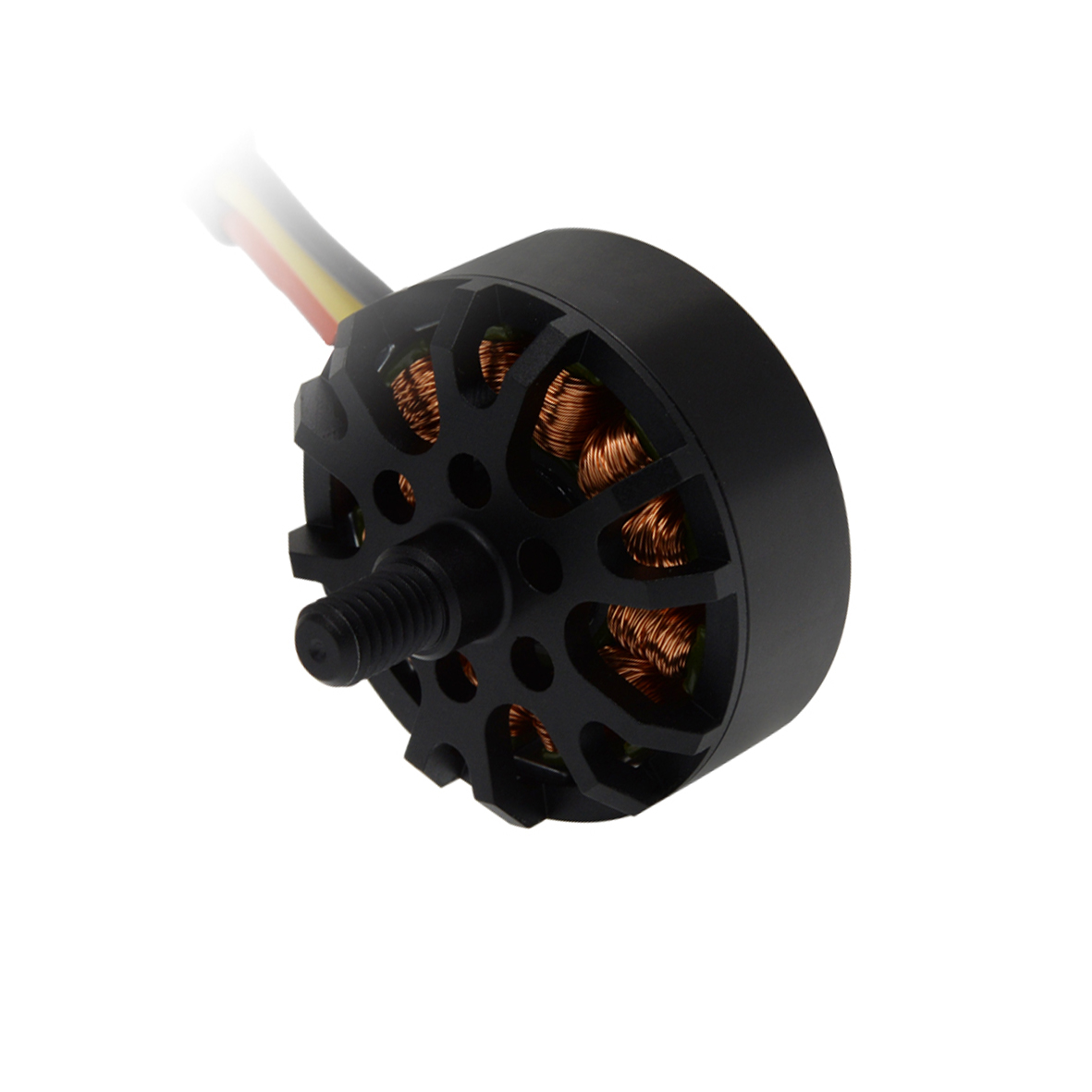

BO3823N2B

24V outor rotor brushless motor
Diameter: 37.6mm; Length: 23mm; Voltage: 12.0v, 24.0v, 36.0v; Max output power: 301-318W; Speed: 7900rpm; Rated torque: 163-173.5mNm.

Application: Drone, electric tools, automation equipment, smart home and other driving fields.
Customizable: Specifications, wires, shaft length, performance, bearings, gearbox, Hall sensors, encoders, driver.

Ask for datasheet

Customized Assessment

Ask for a quotation

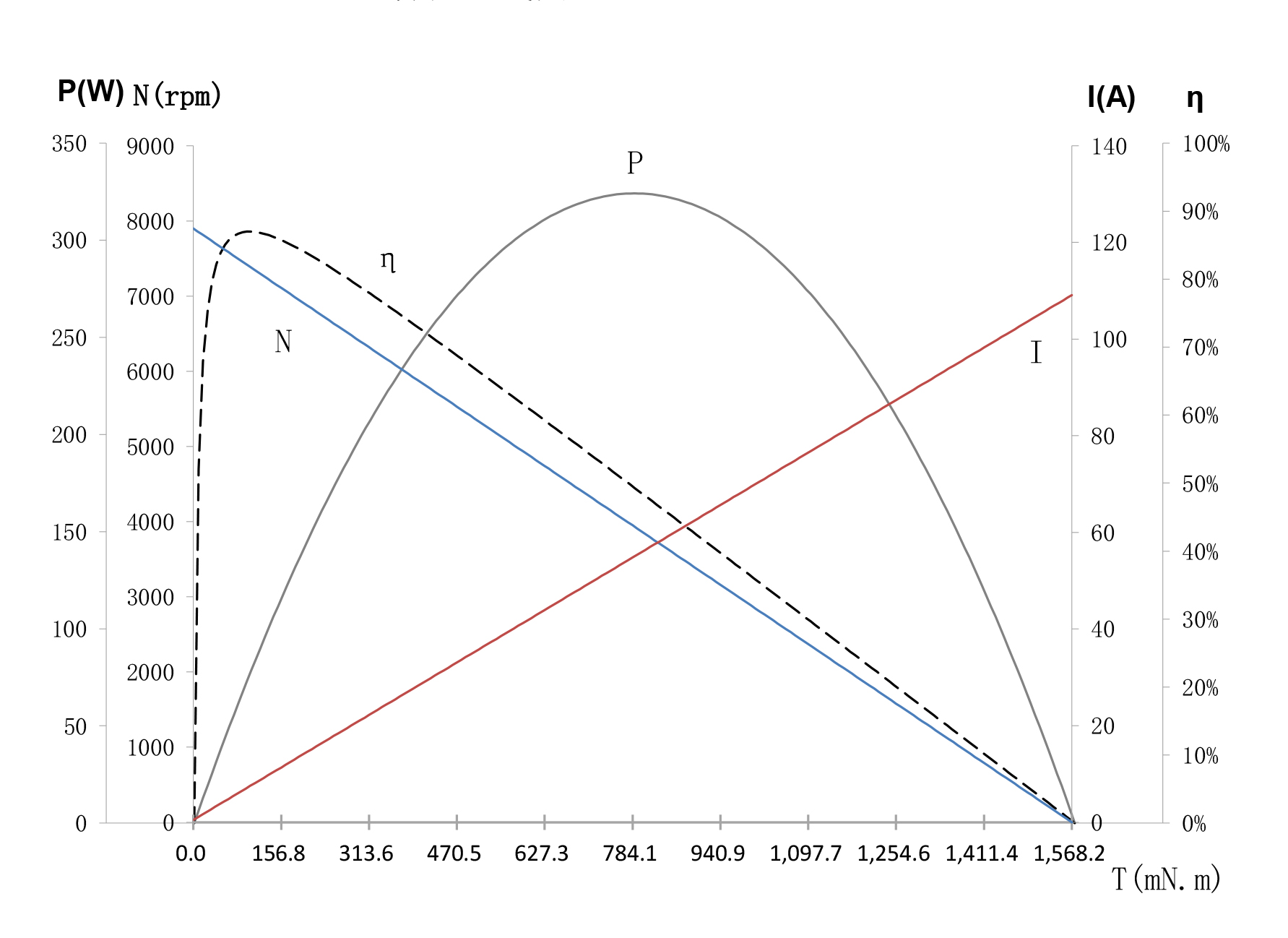

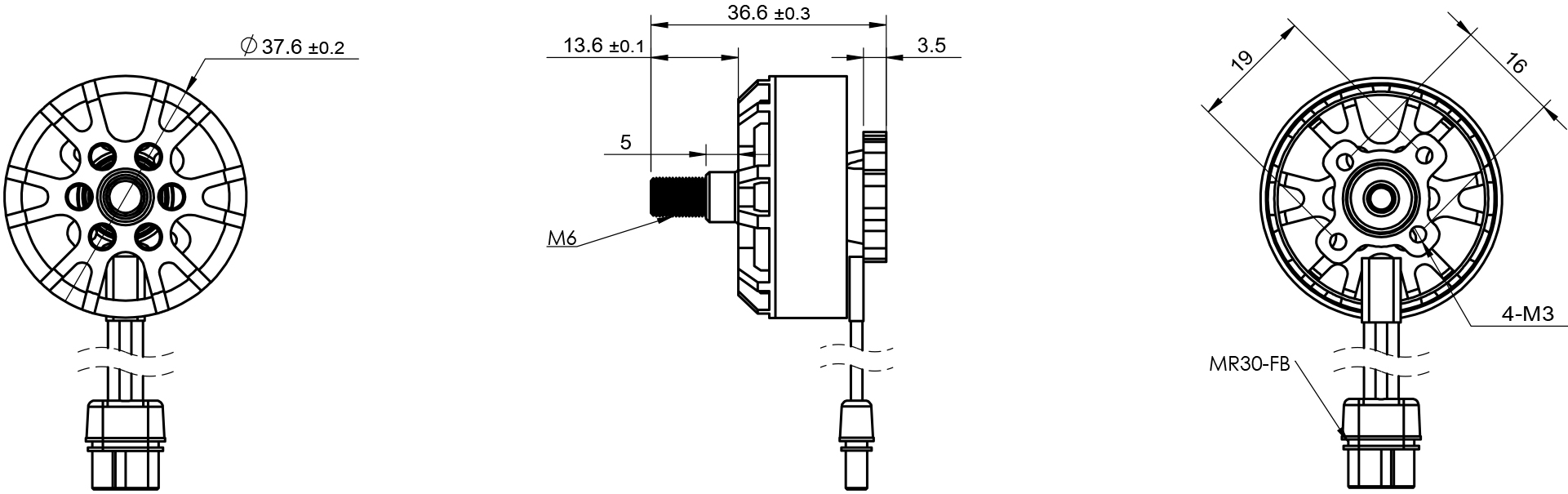

Parameter Outline Drawing Characteristic Curve Download

Characteristics	UNIT	01-79-12.0	02-79-24.0	03-79-36.0
Voltage	V	12.0	24.0	36.0
Terminal resistance	Ω	0.11	0.47	1.01
No-load speed	rpm	7900	7900	7900
No-load current	A	0.49	0.26	0.18
Stall torque	mNm	1534	1439	1529
Stall current	A	107.1	50.6	35.6
Nominal torque	mNm	173.5	163	164
Nominal speed	rpm	5690	6210	6300
Nominal current	A	12.3	5.8	3.8
Max.output power	W	318	301	317
Max.efficiency	%	86.9	86.2	86.4
Back-EMF constant	mV/rpm	1.5	3	4.5
Torque constant	mNm/A	14.4	28.6	43.2
KV Value	rpm/V	661	333	220
Speed/torque gradient	rpm/mNm	5.2	5.5	5.2
Rotor inertia	gcm²	42	42	42
Weight	g	73	73	73
