B01709NB2B

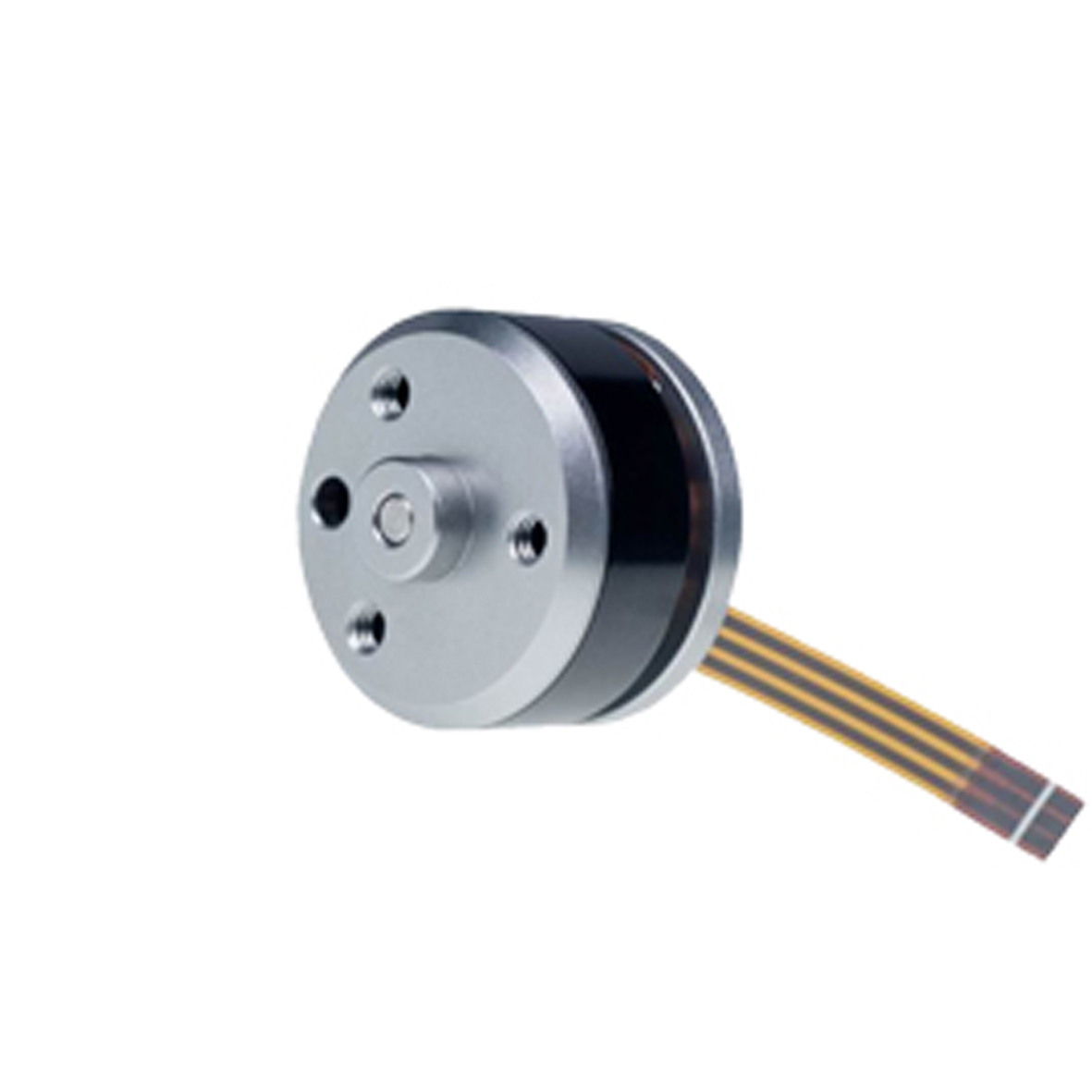

5V Brushless gimbal Motor

Diameter: 17mm; Length: 9.5mm; Voltage: 5V, 10V, 15V; Max output power: 5 - 5.2W; Speed: 26000 rpm; Rated torque: 1.9 mNm.

Application : UAV gimbal, LiDAR, laser scanning, handheld gimbal.
Customizable : Specifications, wires, shaft length, performance, bearings, gearbox, Hall sensors, encoders, drivers

Ask for datasheet

Customized Assessment

Ask for a quotation

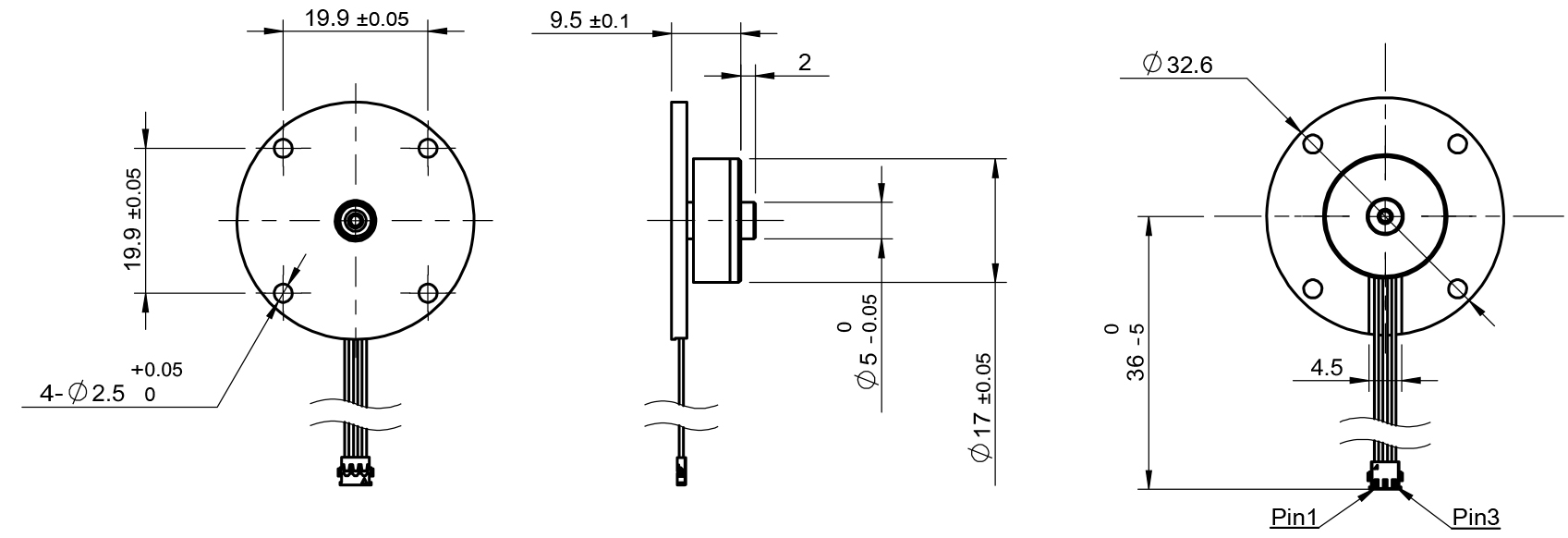

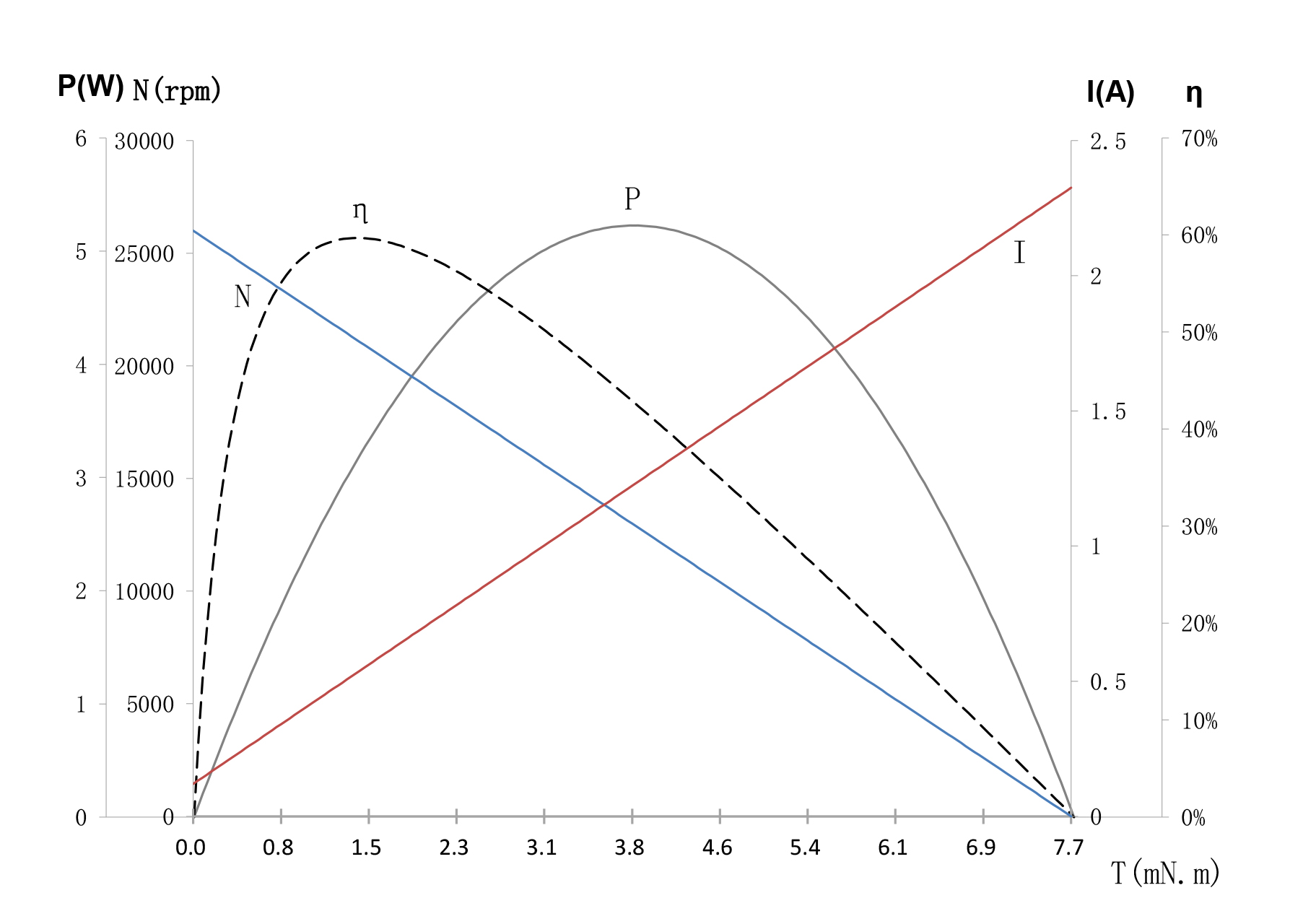

Parameter Outline Drawing Characteristic Curve Download

Characteristics	UNIT	02-260-5.0	01-260-10.0	03-260-15.0
Voltage	V	5.0	10.0	15.0
Terminal resistance	Ω	1.1	4.3	10
No-load speed	rpm	26000	26000	26000
No-load current	A	240	120	80
Stall torque	mNm	7.5	7.6	7.3
Stall current	A	4550	2300	1480
Nominal torque	mNm	1.9	1.9	1.9
Nominal speed	rpm	16250	16400	16120
Nominal current	A	1370	680	450
Max.output power	W	5.1	5.2	5.0
Max.efficiency	%	59	59	59
Back-EMF constant	mV/rpm	0.182	0.365	0.546
Torque constant	mNm/A	1.7	3.4	5.2
KV Value	rpm/V	5200	2600	1700
Speed/torque gradient	rpm/mNm	3460	3384	3540
Rotor inertia	gcm²	1.2	1.2	1.2
Weight	g	8.8	8.8	8.8
