Products Brushless DC Motor Outer Rotor BO1615N
BO1615N
Outer Rotor

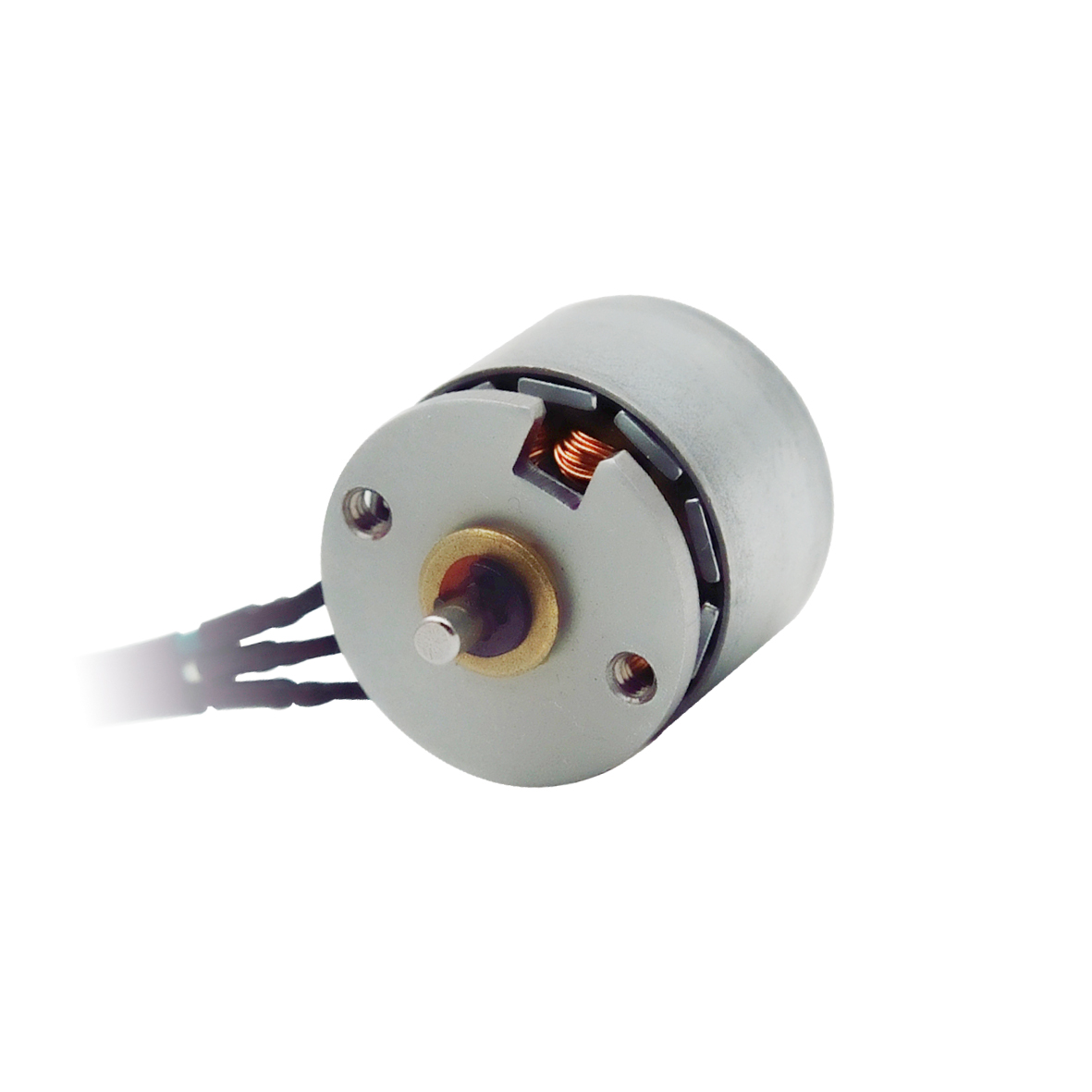

BO1615N

16mm UAV drive motor
Diameter: 16mm; Length: 15.7mm; Voltage: 3.7V; Max output power: 4.5W; Speed: 7300rpm; Rated torque: 4mNm.

Application: UAV, model aircraft, etc.
Customizable: Specifications, wires, shaft length, performance, bearings, gearbox, Hall sensors, driver

Ask for datasheet
Customized Assessment
Ask for a quotation

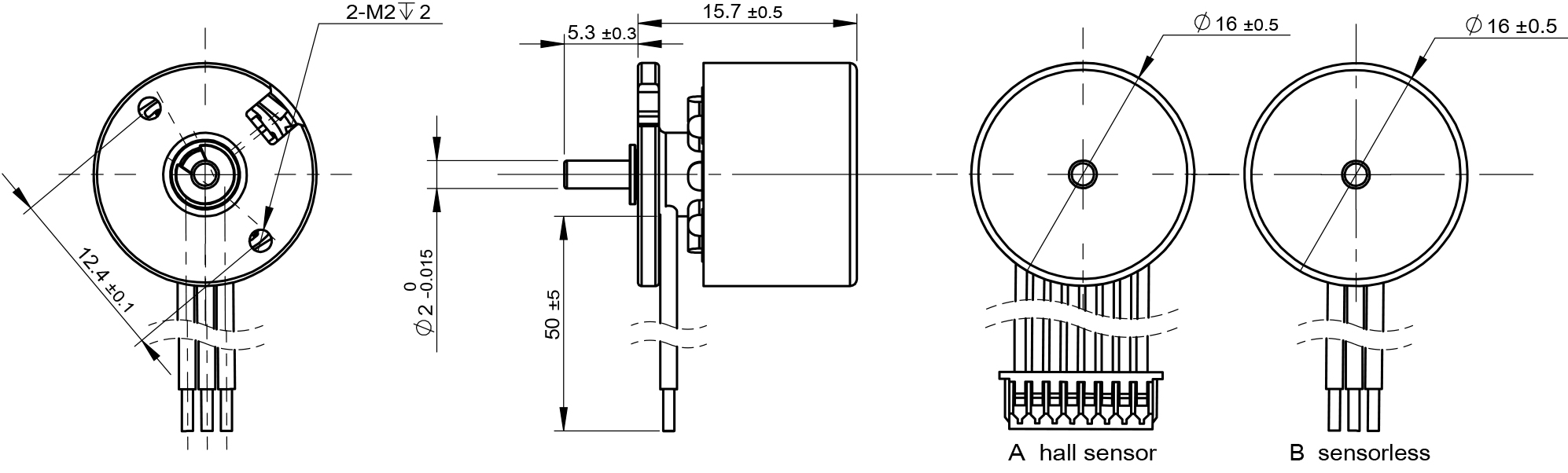

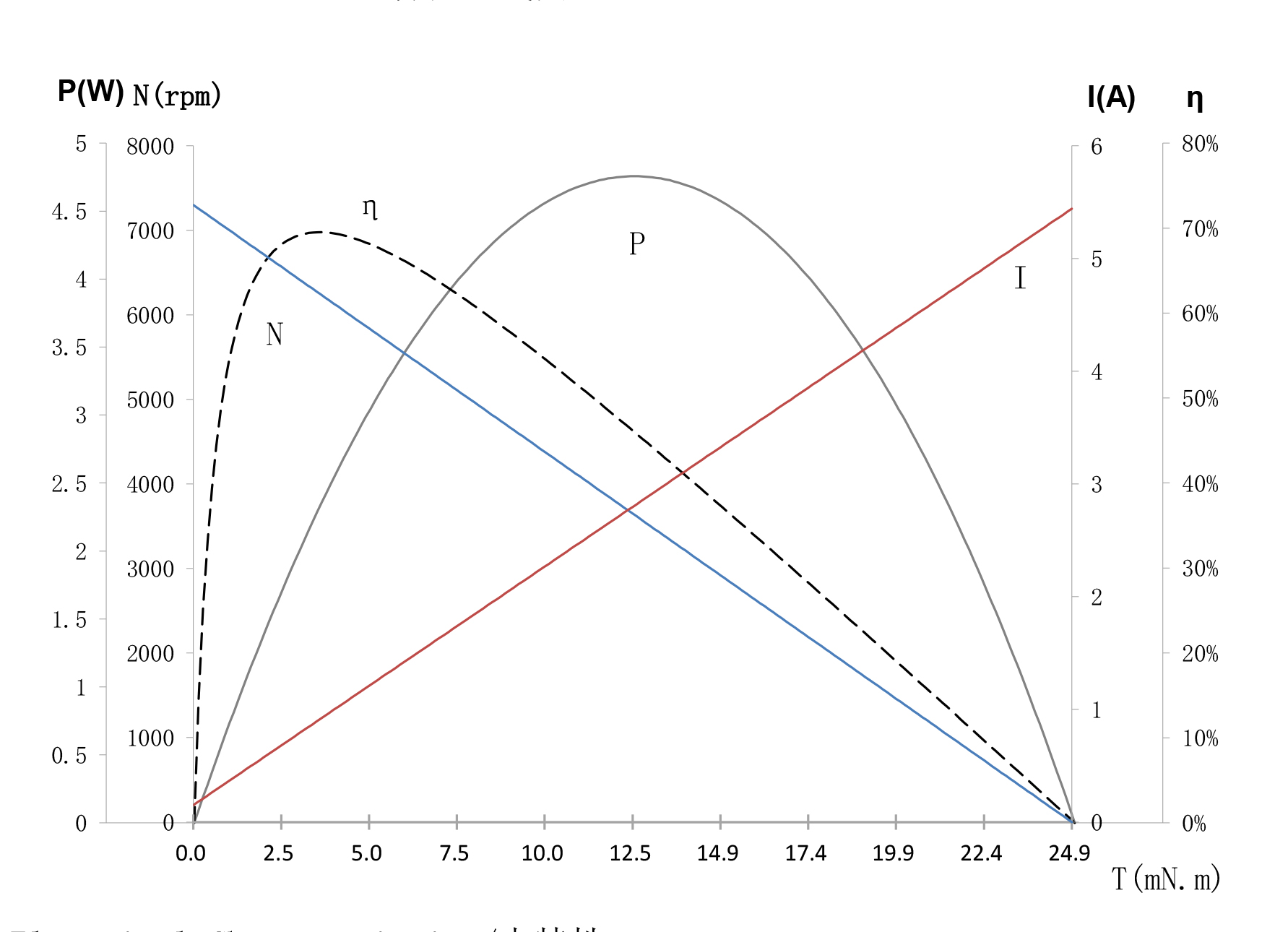

Parameter Outline Drawing Characteristic Curve Download
Characteristics UNIT 01-73-3.7
Voltage V 3.7
Terminal resistance Ω 0.68
No-load speed rpm 7300
No-load current A 0.15
Stall torque mNm 24.9
Stall current A 5.5
Nominal torque mNm 4
Nominal speed rpm 5930
Nominal current A 0.105
Max.output power W 4.5
Max.efficiency % 69
Back-EMF constant mV/rpm 0.5
Torque constant mNm/A 4.7
KV Value rpm/V 1970
Speed/torque gradient rpm/mNm 304
Rotor inertia gcm2 1.7
Weight g 13
