1434ZDF

14mm sonic vibration motor

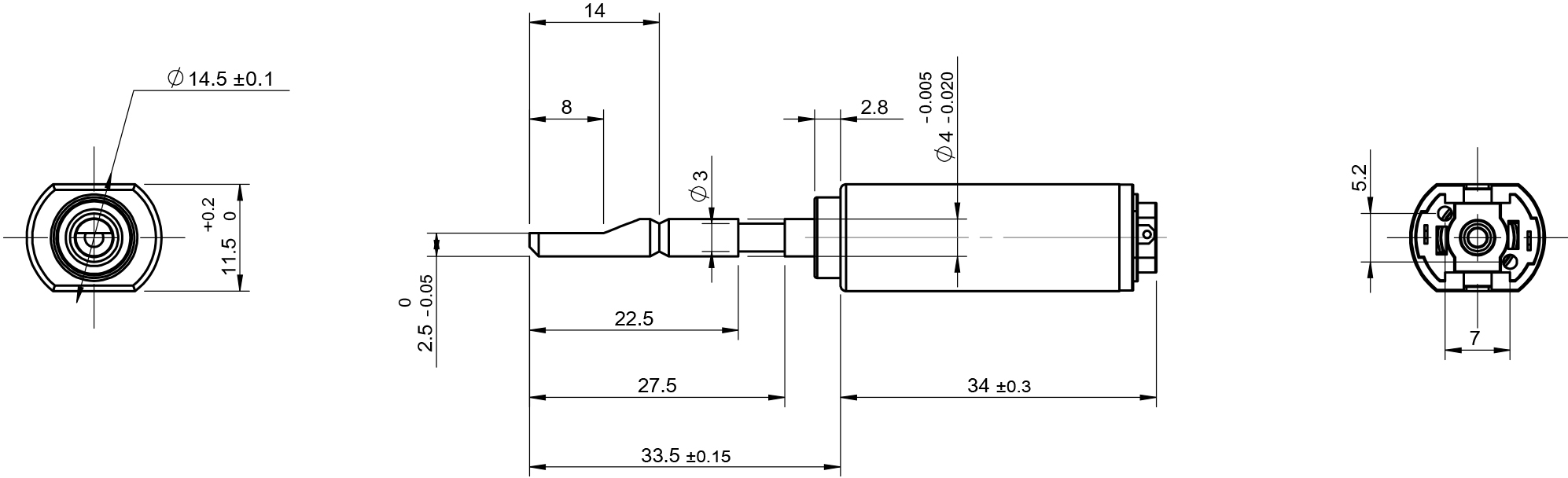

Diameter: 14.5mm; Length: 34mm; Voltage: 2.5v, 3.7v; Vibration frequency: 39600 times;

Lifespan: 2000H; Production plant: Shenzhen Guangming plant, Chongqing Fuling plant.

Applications:electric toothbrush, health care equipment, cleaning equipment, etc.

Customizable options: gauge, lead length, shaft length, performance.

Unit price: Quote according to customer quantity and solution requirements

Nombre	Unidad	1434ZDF-1-L1-3.7	1434ZDF-ET-L15-3.7	1434ZDF-1-L2-2.5
Voltage	V	3.7	3.7	2.5
Resistance	Ω	3.8	3.8	3.8

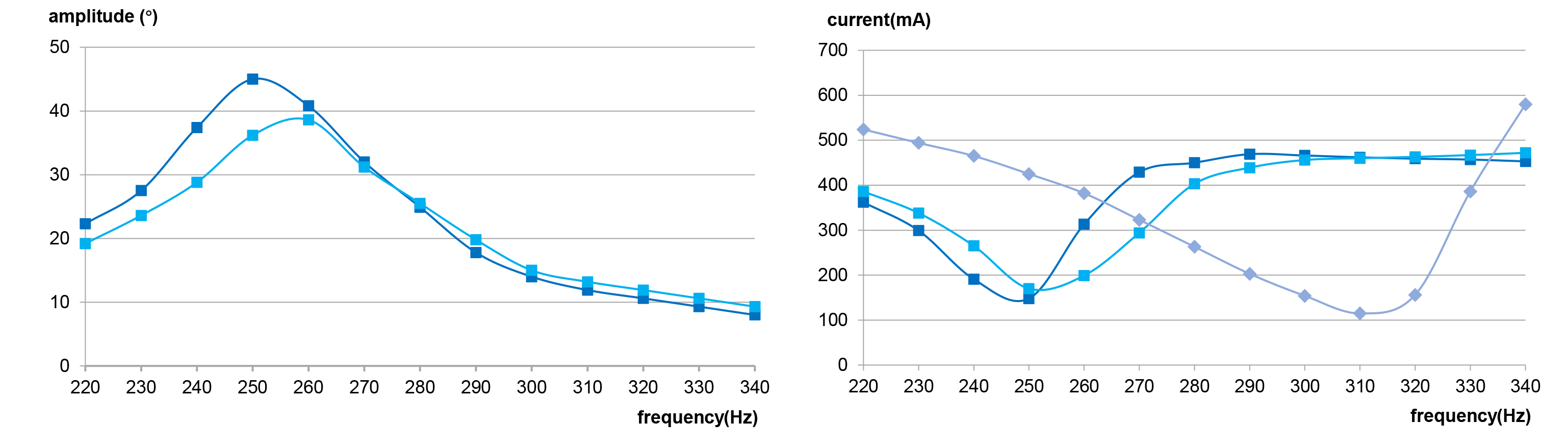

Operating frequency range	Hz	220~360	220~360	220~360
No-load vibration frequency	Times/minute	39600	39600	39600
No-load current	mA	90	95	80
Starting torque	mNm	12	12	8.5
Starting current	A	0.9	0.9	0.7
Rated load (Brush head)	g	3.8	3.8	3.8
Load vibration frequency	Times/minute	31200	31200	31200
Load current	mA	400	440	340
Rotor inertia	gcm²	1.0	1.0	1.0
Weight	g	19	19	19
Operating temperature range	°C	-10～+60	-10～+60	-10～+60
