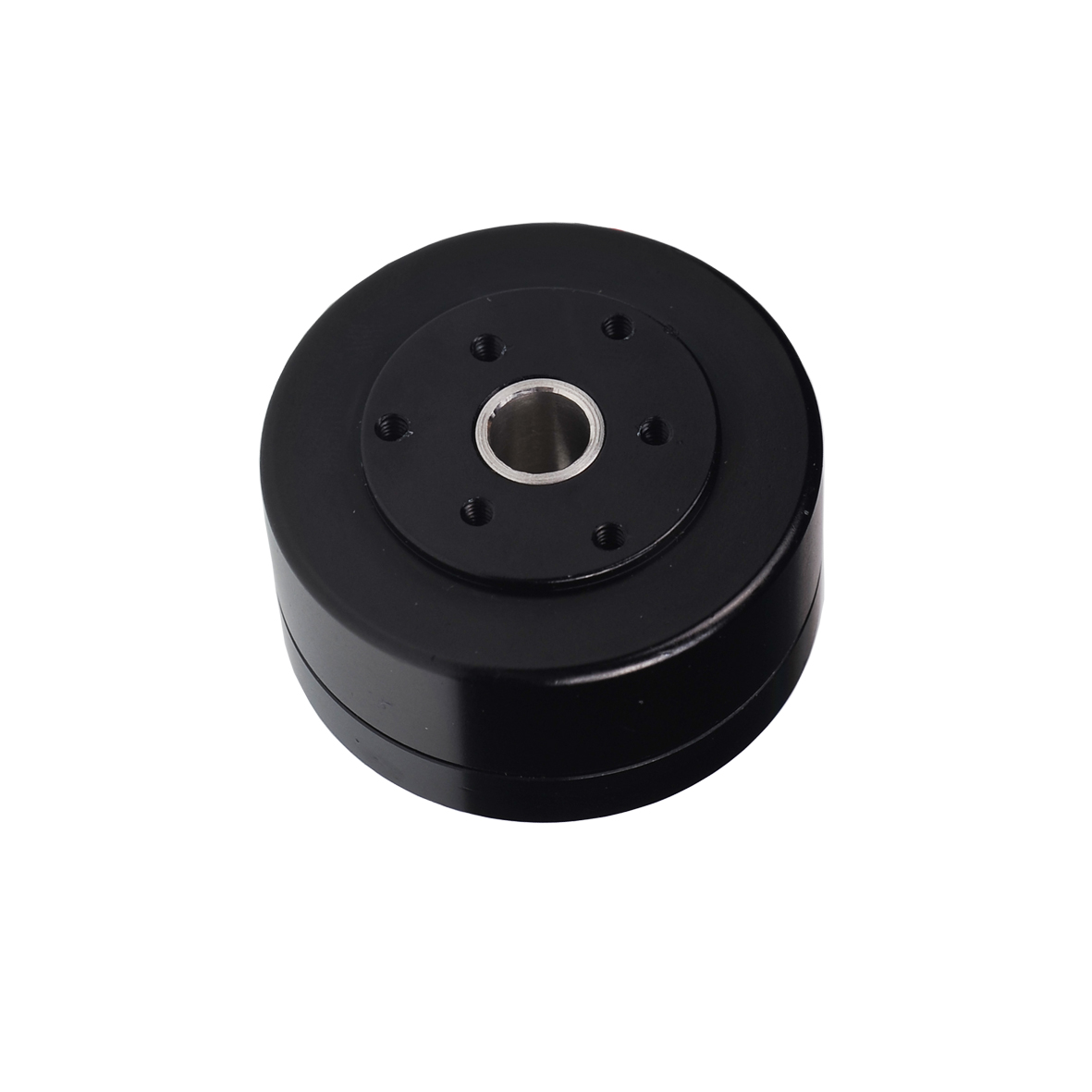

Products Brushless DC Motor Outer Rotor BO3518NB2B
BO3518NB2B
Outer Rotor

BO3518NB2B

3515 200kv gimbal motor

Diameter: 34.5mm; Length: 18mm; Voltage: 5.0v, 12.0v, 24.0v; Max output power: 3 - 3.34W; Speed: 2400rpm; Rated torque: 31 - 32mNm.

Application : UAV gimbal, LiDAR, laser scanning, handheld gimbal.
Customizable: Specifications, wires, shaft length, performance, bearings, gearboxes, encoders, driver.

Ask for datasheet
Customized Assessment
Ask for a quotation

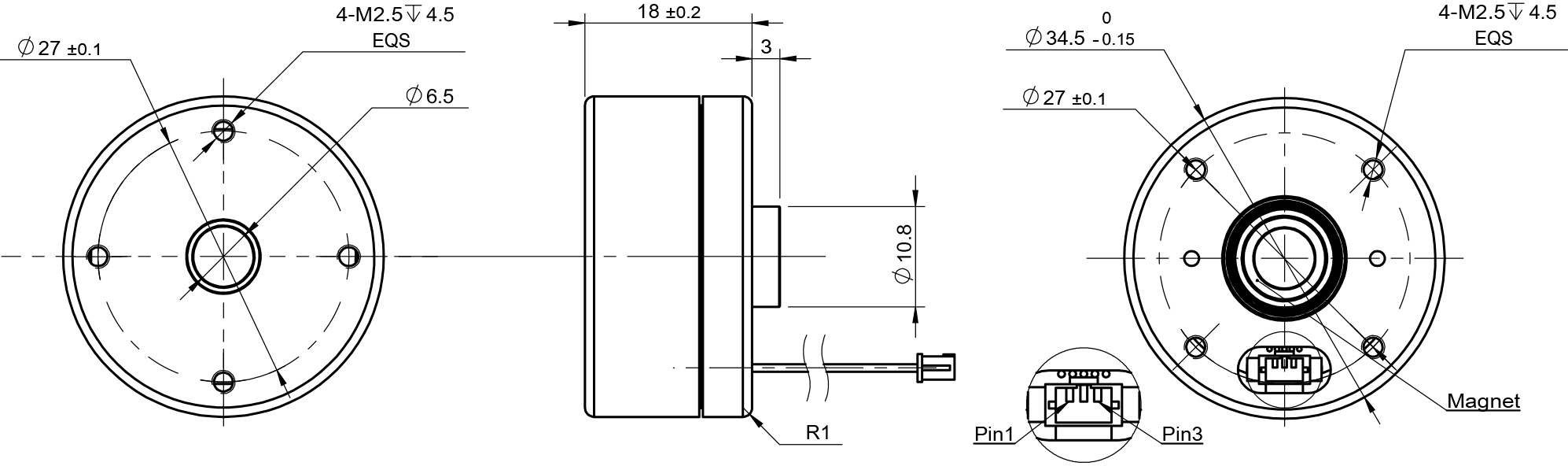

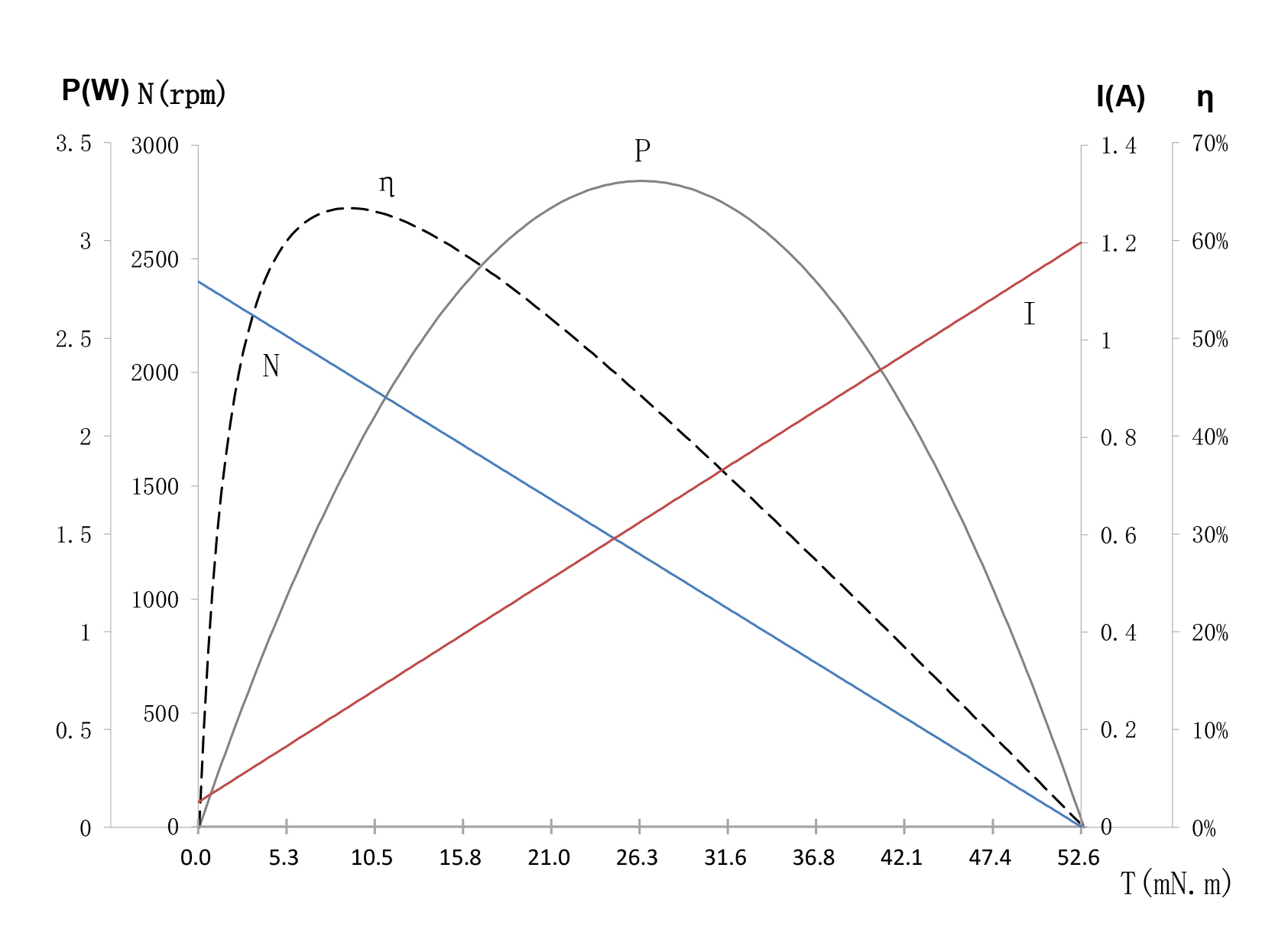

Parameter Outline Drawing Characteristic Curve Download
名称 单位 10-24-5.0 02-24-12.0 11-24-24.0
电压 V 5.0 12.0 24.0
端电阻 Ω 1.9 10 38.3
空载转速 rpm 2400 2400 2400
空载电流 A 120 50 25
堵转转矩 mNm 49 52.6 55
堵转电流 A 2680 1200 626
额定转矩 mNm 31 32 32
额定转速 rpm 210 300 348
额定电流 A 1750 755 384
最大输出功率 W 3 3.3 3.4
最大效率 % 62 63 64
反电势常数 mV/rpm 2 4.8 9.6
转矩常数 mNm/A 19.1 45.7 91.6
KV值 rpm/V 476 200 100
转速/转矩斜率 rpm/mNm 48.6 45.6 43.5
转子惯量 gcm2 68 68 68
 重量 g 64 64 64
