Compact Brushless Motor Driver

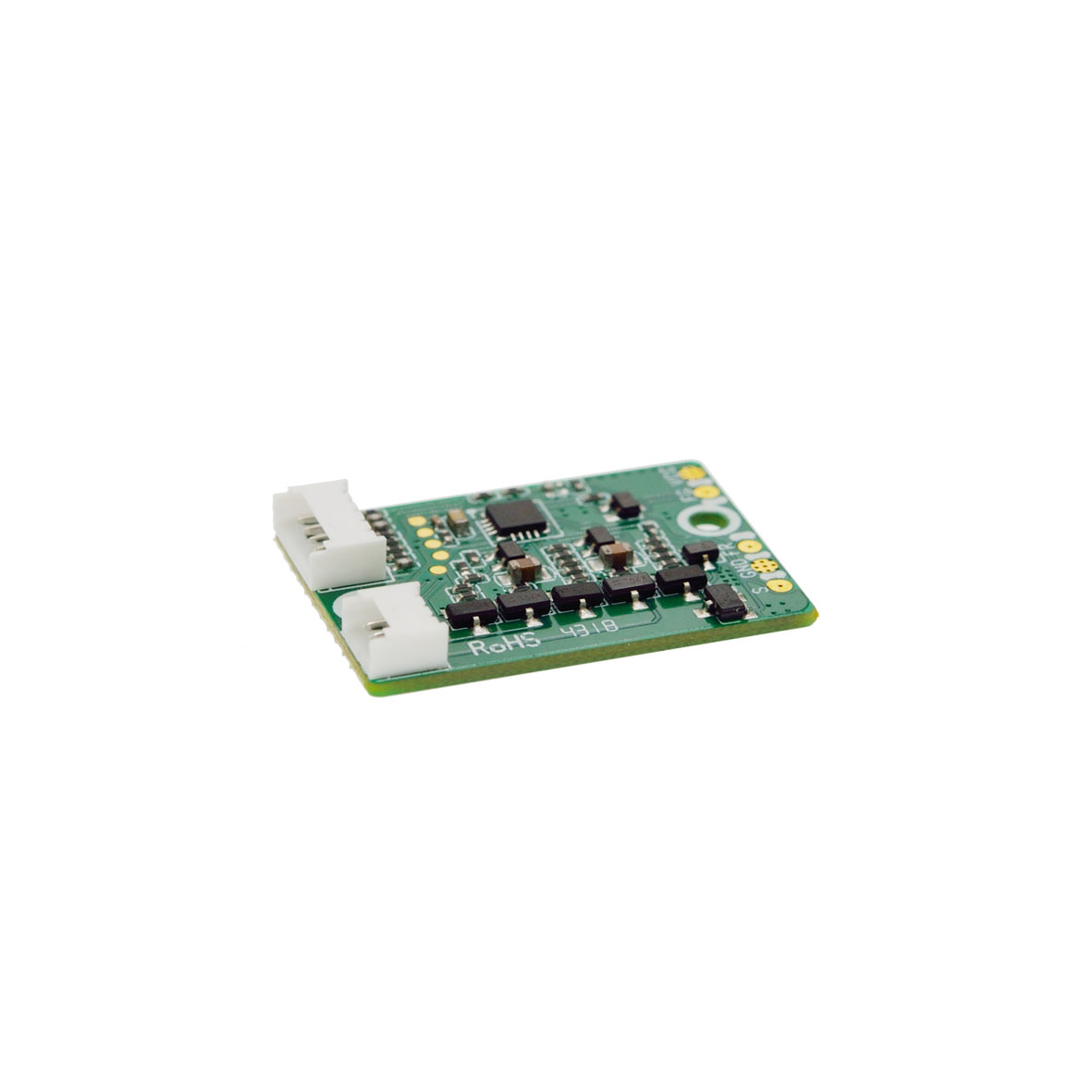

S13-071502H / A18-154820H
Compact ESC for Sensored BLDC Motor
Size: 28.5*20*6.1mm / 78*55*29.4mm ; Voltage: 7~15V/15~48V; Peak current(10s): 3A, 30A.
Applications: blowers, electrical tools, pumps, etc.
Options: Special coils.
| Characteristics | Unit | S13-071502H | A18-154820H |
| Constant current | A | 2 | 20 |
| Peak current(10s) | A | 3 | 30 |
| Input voltage range | V | 7~15 | 15~48 |

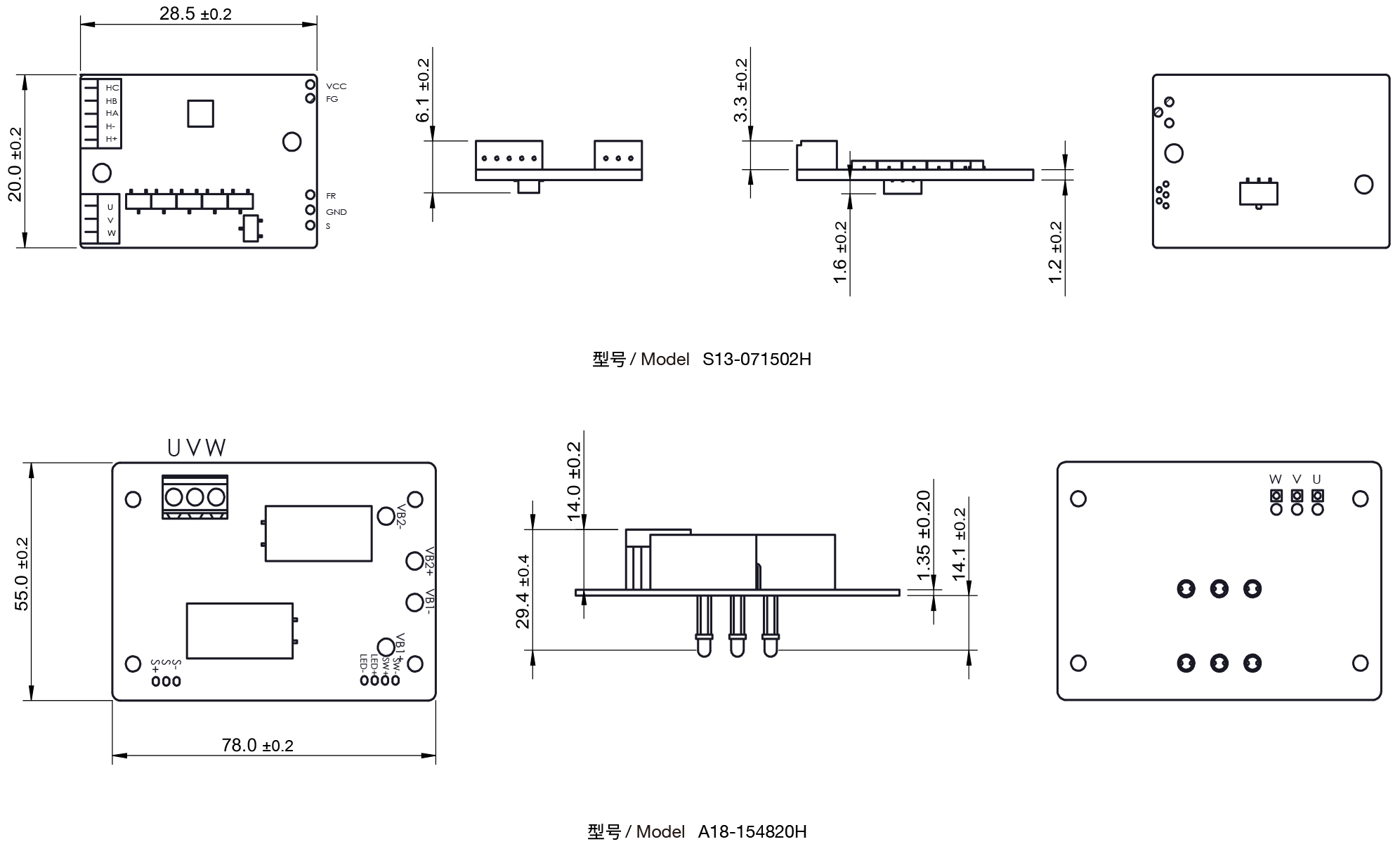

| Size | mm | 28.5*20*6.1 | 78*55*29.4 |
| Speed control signal | Analog voltage/PWM | Analog voltage/PWM | |
| Overload protection | No | Yes | |
| Blockage protection | Yes | Yes | |
| Thermal overload protection | Yes | Yes | |
| Inverse-polarity protection | No | No | |
| CW/CCW direction control | Optional | Optional | |
| Enable | Optional | Optional | |
| Speed feedback output(6 pulses*pole pairs) | Optional | Optional | |
| Operating temperature | °C | -20~+60 | -20~+60 |
| Sensorless or sensored | Sensored | Sensored |
