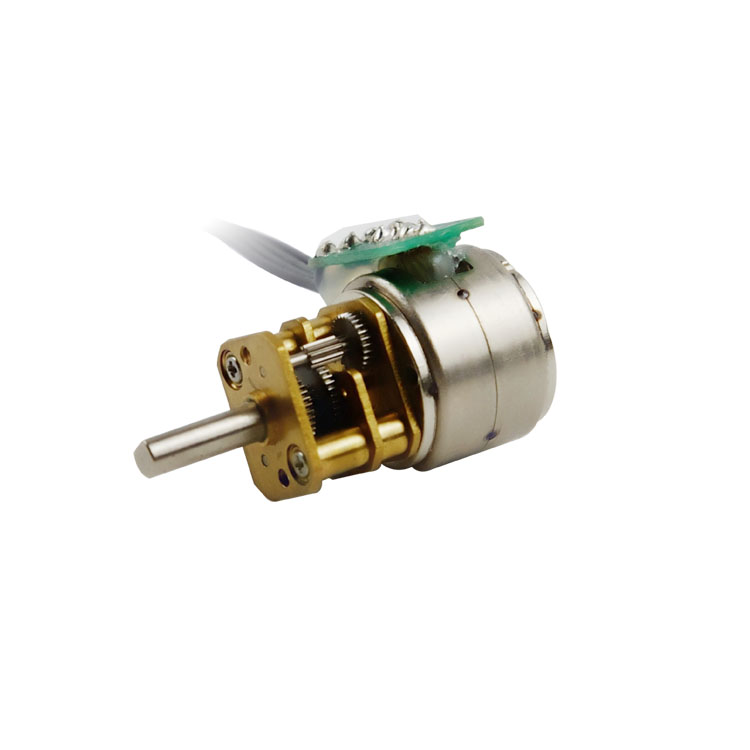

Precision Gearmotor
Diameter: 15mm; Length: 20mm; Voltage: 5~6.5V; Gearbox: Metal / Metal CNC; Matched motor type: Step motor.
Applications: medical equipment, scientific instruments, industrial equipment, etc.
Options: Lead wires length, Shaft length, Special coils, Gearheads.
Characteristics | Unit | 1511P0209-013-5.0-0008 | 1511P0209-013-5.0-002 | 1511P0209-013-6.5-0019 | |||
No. of phase | 2 | 2 | 2 | ||||
Excitation mode | 1-2 | 2-2 | 2-2 | ||||
Voltage | V | 5.0 | 5.0 | 5.0 | |||
Resistance | Ω | 12.6 | 12.6 | 12.6 | |||
Step angle | Deg | 9° | 18° | 18° | |||
Current | A | 0.4 | 0.4 | 0.4 | |||
No-load pull-in frequency | pps | ≥1500 | ≥1200 | ≥1200 | |||
No-load pull-out frequency | pps | ≥2200 | ≥1300 | ≥1300 | |||
Detent torque | mNm | 0.4 | 0.4 | 0.4 | |||
Pull-in torque | mNm | 1 | 1 | 1 | |||
Load pull-in frequency | pps | ≥1000 | ≥800 | ≥800 | |||
Weight | g | 9 | 9 | 9 | |||
Gearbox | |||||||
Number of stages | 2 | 4 | 4 | 5 | 5 | 7 | |
Reduction ratio | 3,5,10 | 17,20,30,36 | 50,63,100 | 110,150 | 210,250,298,380 | 372,625,1000 | |
Max. rated torque | mNm | 20 | 30 | 40 | 50 | 80 | 100 |
Max. momentary torque | mNm | 60 | 90 | 120 | 150 | 240 | 300 |

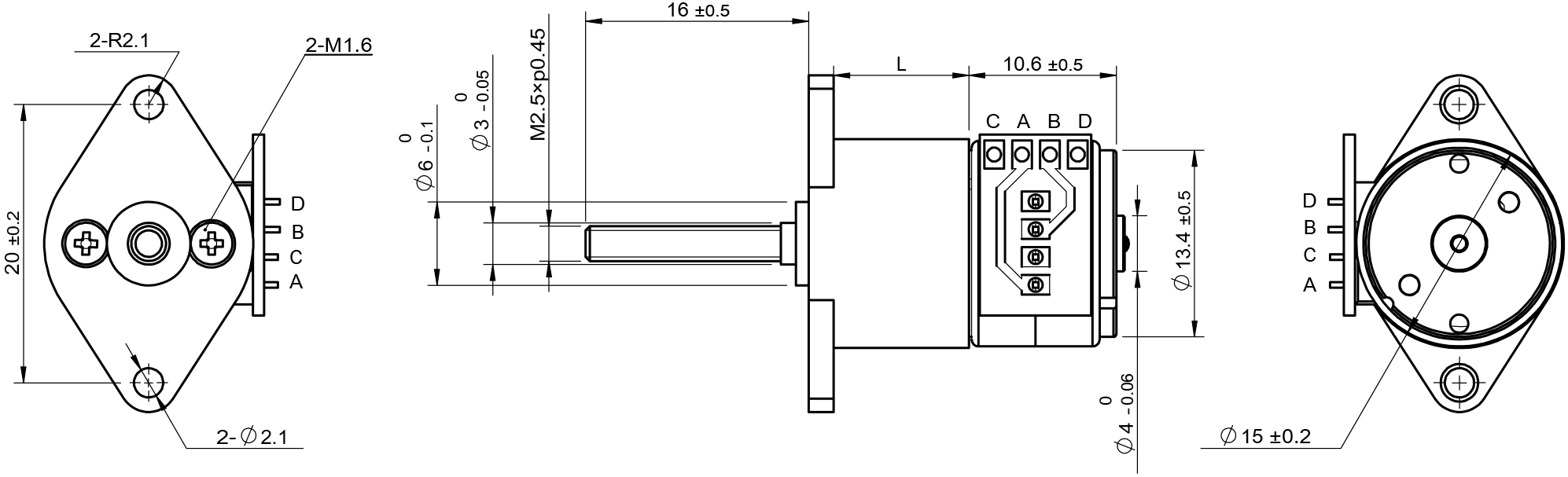

Length(L) | mm | 9 | 9 | 9 | 9 | 9 | 12 |
Shell material | Metal | ||||||
Gear processing technology | Metal CNC |
