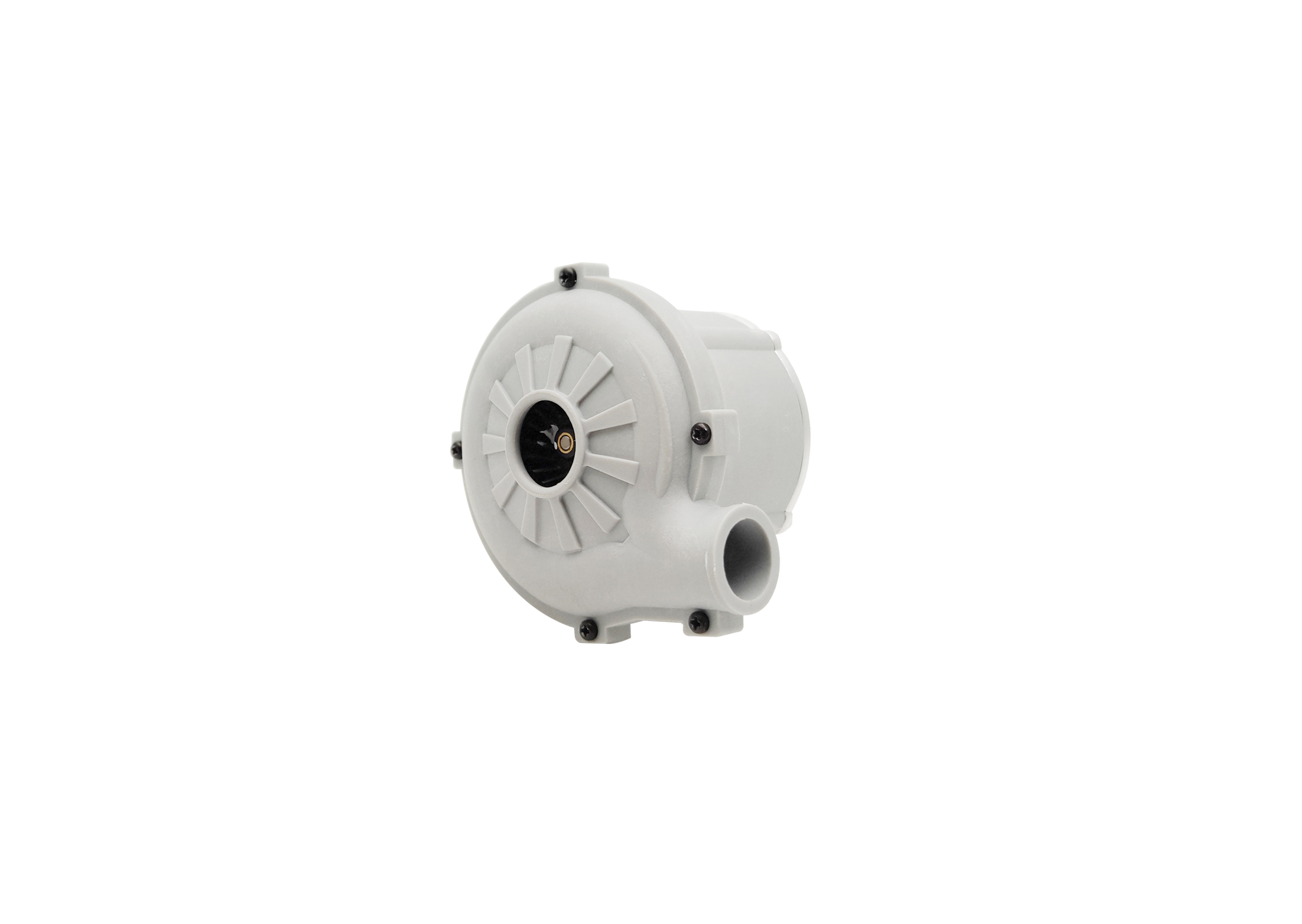

6443ZWF

64mm Brushless blower
Diameter: 64mm Height: 43mm Voltage: 24v ; Input power: 81W Flow rate: 430L/min; Air pressure: 6200 - 10190Pa. Production location: Shenzhen Guangming Factory, Chongqing Fuling Factory
Sample time: 2-5 days for regular production Daily output: 2,000 - 3,000 units

Application: Household ventilators, medical ventilators, non-invasive ventilators, industrial equipment.
Customizable: Specifications, performance, drive

Ask for datasheet

Customized Assessment

Ask for a quotation

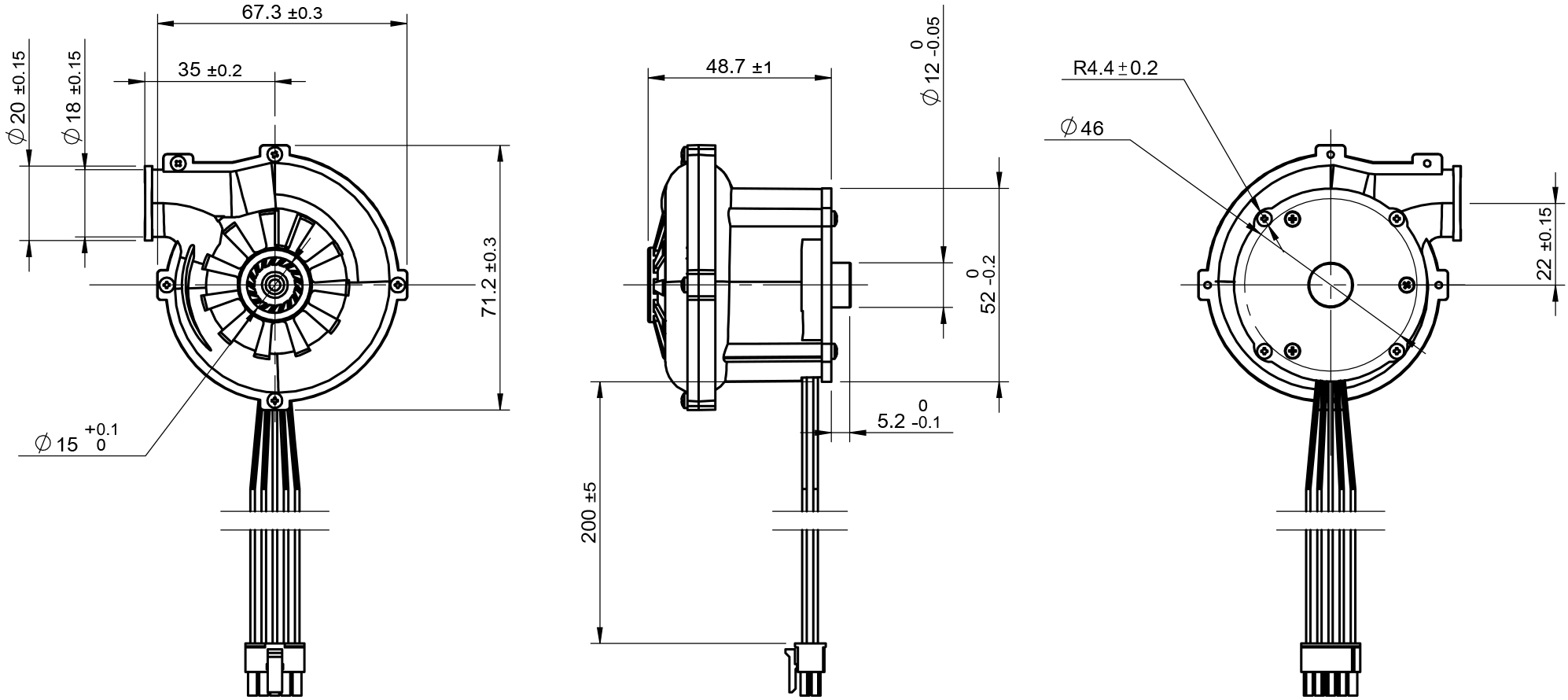

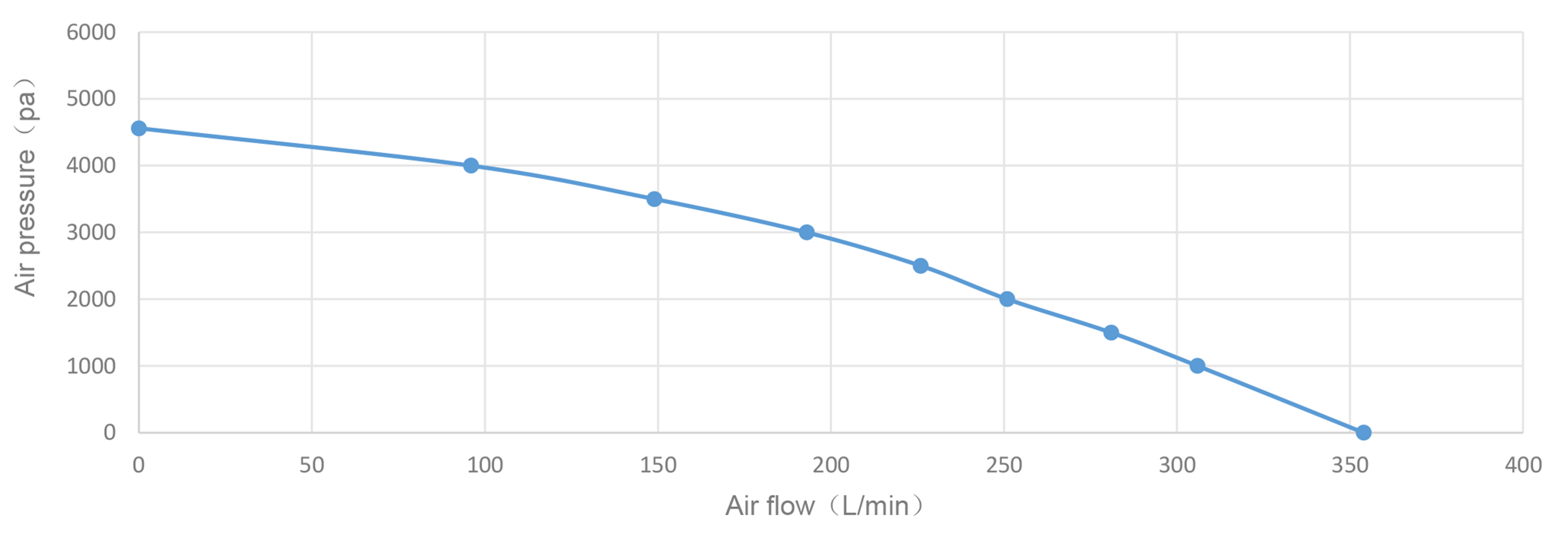

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	6443ZWF-2-24.0	6443ZWF-3-24.0	6443ZWF-4-24.0
Voltage	V	24.0	24.0	24.0
Terminal resistance	Ω	0.83	0.24	1.33
NO. of phase		3	3	3
Input power	W	81	112	48
Rated Load		风叶/Blades (出气孔/Blow hole: 4mm)	风叶/Blades (出气孔/Blow hole: 4mm)	风叶/Blades (出气孔/Blow hole: 4mm)
Load speed	rpm	37400	43700	33000
Load current	A	3.4	4.7	2
Air pressure	Pa	8160	10190	6200
Air flow	L/min	430	425	360
Noise	dB	≤45	≤45	≤45
Weight	g	190	190	190
Operating temperature range	°C	10~70	10~70	10~70
