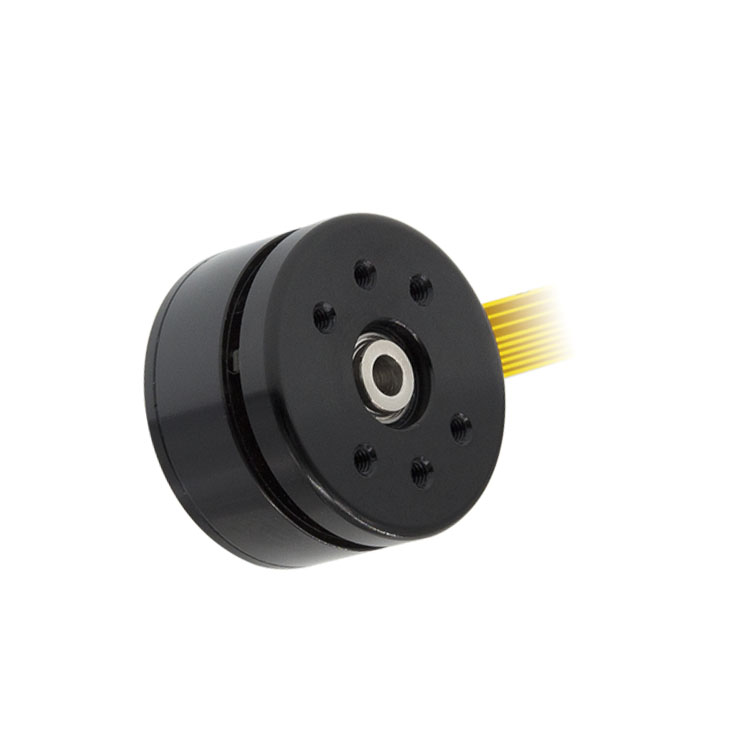

BO2414NBH2B

24mm brushless gimbal motor

Diameter: 24.5mm; Length: 14mm; Voltage: 12.0v, 18.0v, 24.0v; Max output power: 7.8 - 8.6W; Speed: 8000 - 8160rpm; Rated torque: 12.3mNm.

Application : UAV gimbal, LiDAR, laser scanning, handheld gimbal.
Customizable: Specifications, wires, shaft length, performance, bearings, gearboxes, encoders, driver.

Ask for datasheet

Customized Assessment

Ask for a quotation

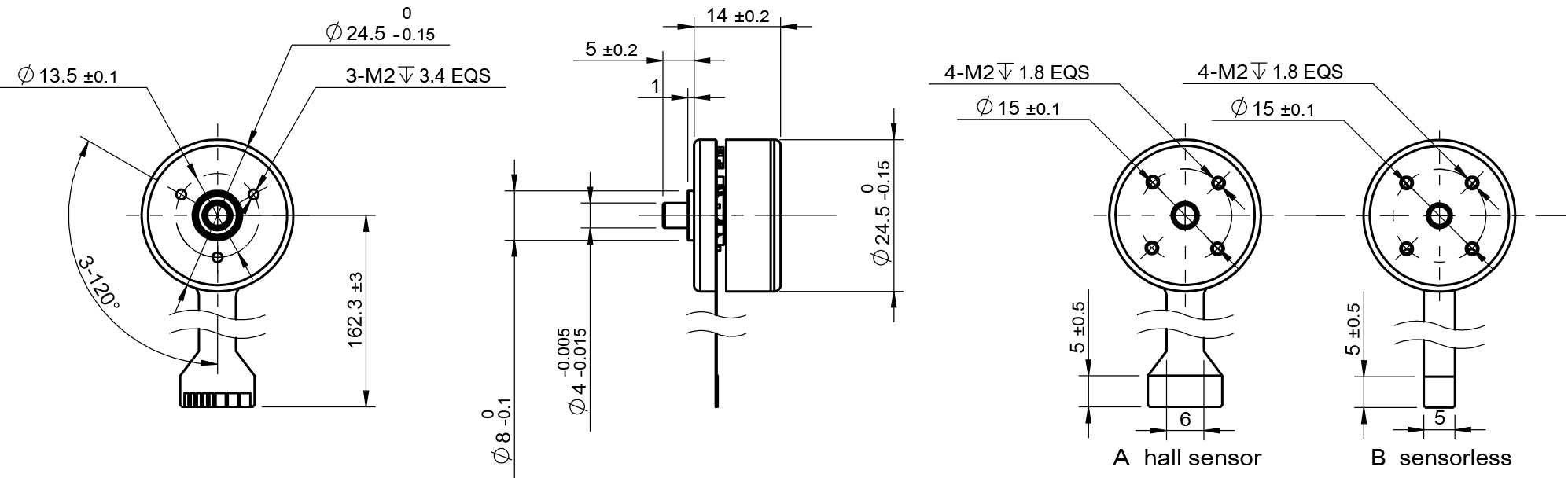

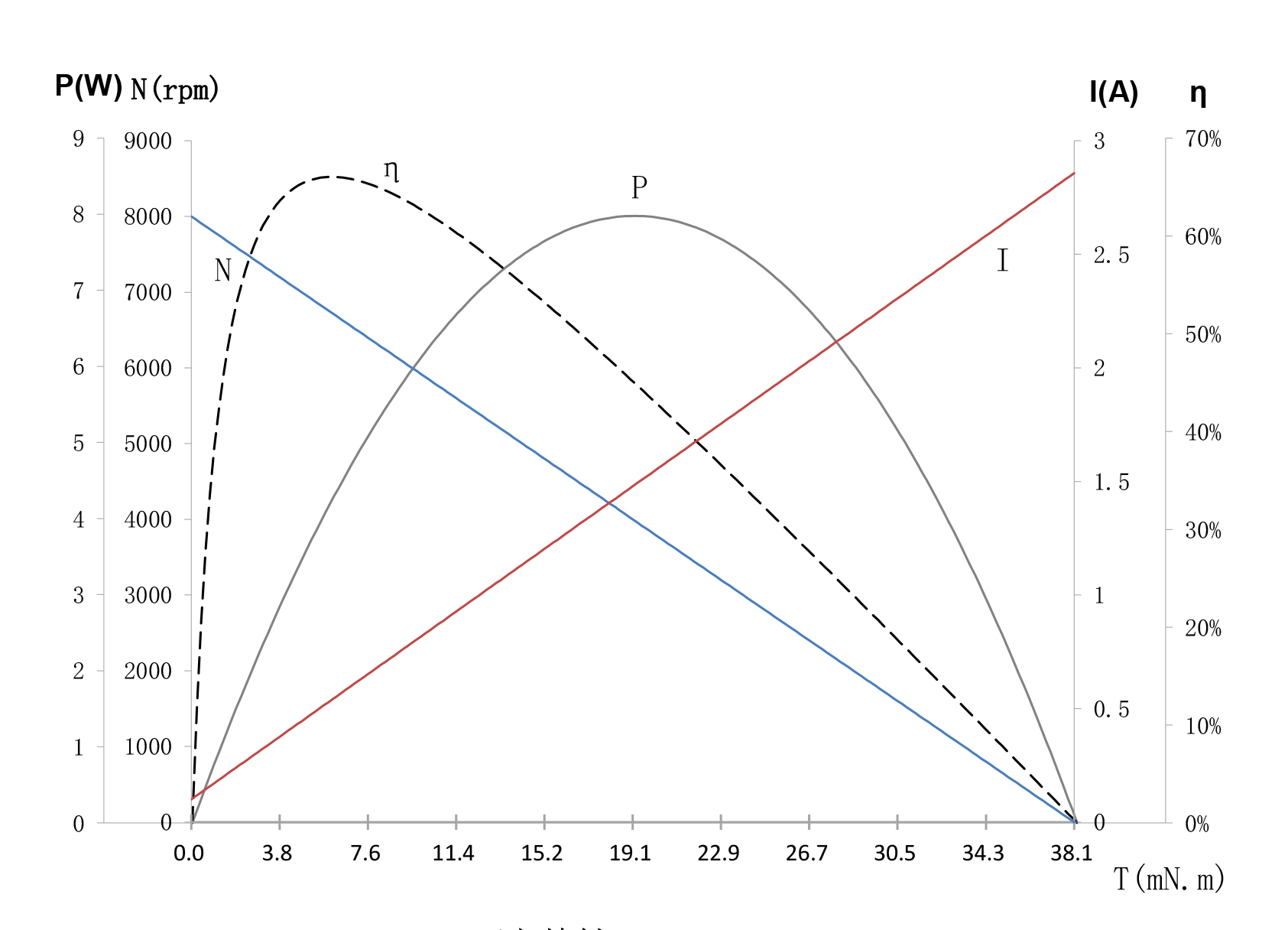

Parameter Outline Drawing Characteristic Curve Download

Characteristics	UNIT	05-80-12.0	11-81-18.0	10-81-24.0
Voltage	V	12.0	18.0	24.0
Terminal resistance	Ω	4.2	8.8	15.7
No-load speed	rpm	8000	8160	8160
No-load current	A	0.1	0.06	0.05
Stall torque	mNm	37.4	39.8	39.9
Stall current	A	2.8	2	1.5
Nominal torque	mNm	12.3	12.3	12.3
Nominal speed	rpm	4480	5700	5670
Nominal current	A	0.9	0.65	0.5
Max.output power	W	7.8	8.6	8.5
Max.efficiency	%	67.3	68	67
Back-EMF constant	mV/rpm	1.45	2.13	2.84
Torque constant	mNm/A	13.9	20.3	27.1
Terminal inductance	mH	1.3	2.81	4.99
Speed/torque gradient	rpm/mNm	214	204	204
Rotor inertia	gcm²	7.2	7.2	7.2
Weight	g	21.5	21.5	21.5
