2724ZDR

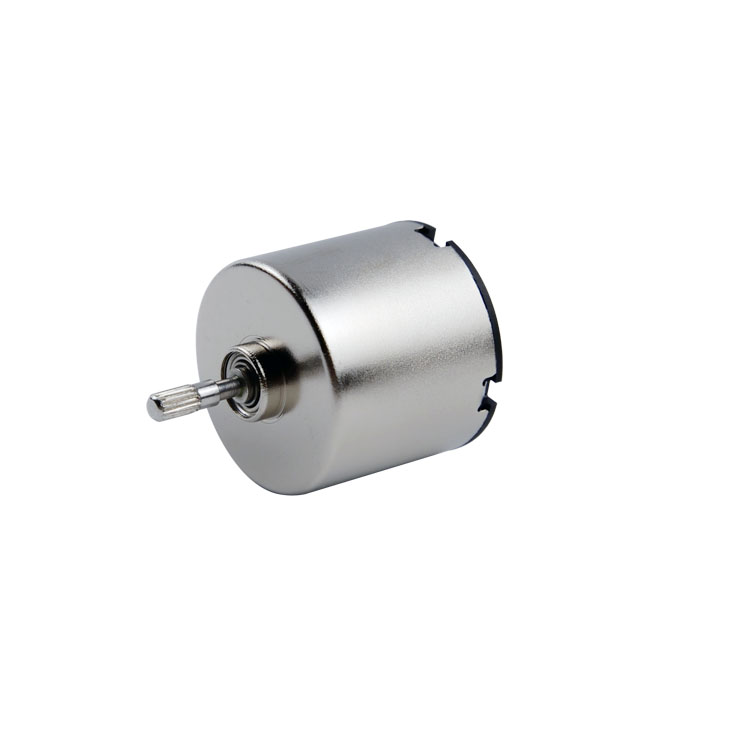

27mm sonic vibration motor

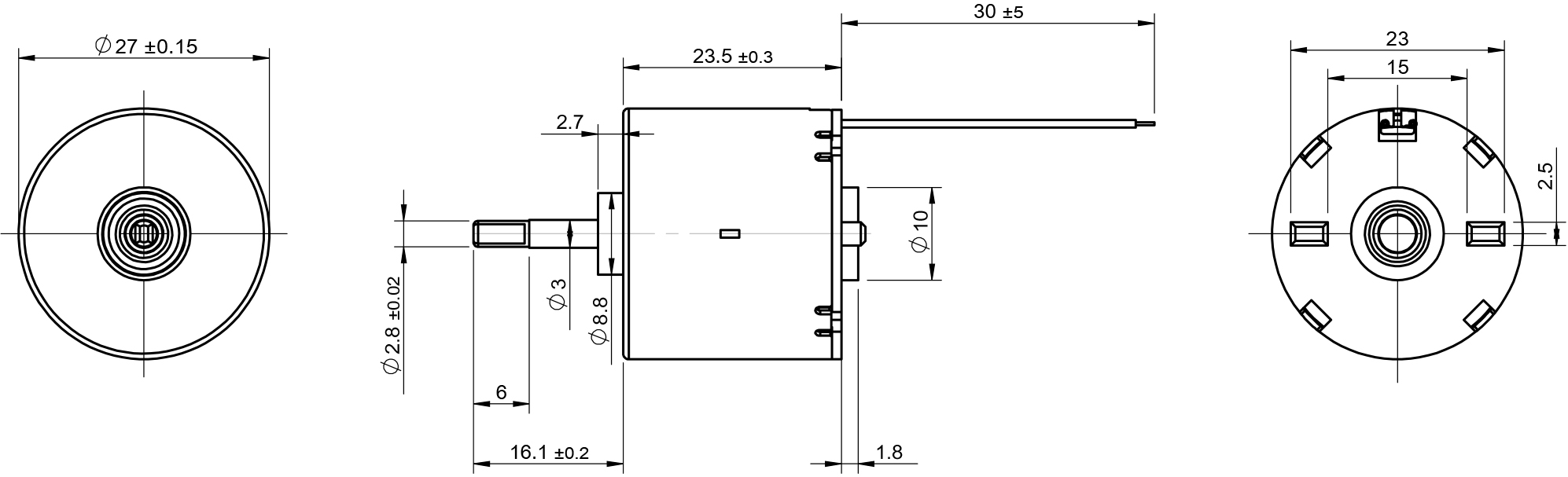

Diameter: 27mm; Length: 23.5mm; Voltage: 2.5v, 3.7v, 5.0v; Vibration frequency: 26400 times;

Lifespan: 2000H; Production plant: Shenzhen Guangming plant, Chongqing Fuling plant.

Applications: facial brushes, facial massagers, health care products, cleaning equipment, etc.

Customizable options: gauge, lead length, shaft length, performance.

Unit price: Quote according to customer quantity and solution requirements

Nombre	Unidad	2724ZDR-1-L7-30-3.7	2724ZDR-1-L14-50-2.5	2724ZDR-1-L19-35-5.0
Voltage	V	3.7	2.5	5.0
Resistance	Ω	2.2	2.2	2.2
Operating frequency range	Hz	100~220	100~220	100~220
No-load vibration frequency	Times/minute	26400	26400	26400
No-load current	mA	150	135	180
Starting torque	mNm	40	27	54
Starting current	A	1.7	1.15	2.3
Rated load (Brush head weight/diameter)	g	10/31	10/31	10/31
Load vibration frequency	Times/minute	20400	20400	20400
Load current	mA	450	410	500
Rotor inertia	gcm²	1.35	1.35	1.35
Weight	g	49	49	49
Operating temperature range	°C	-10～+60	-10～+60	-10～+60
