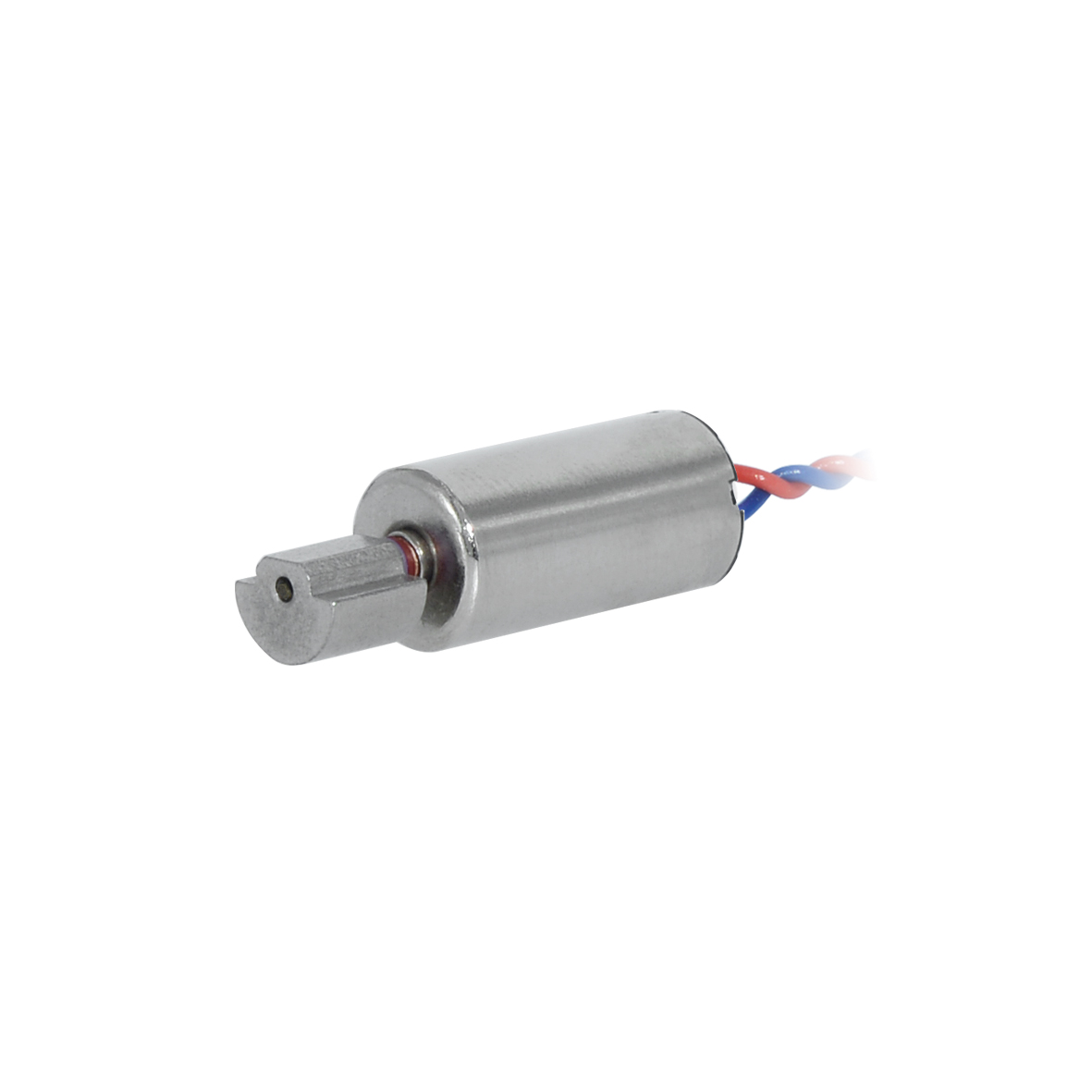

VL0614N5M

6mm DC Coreless Motor Series

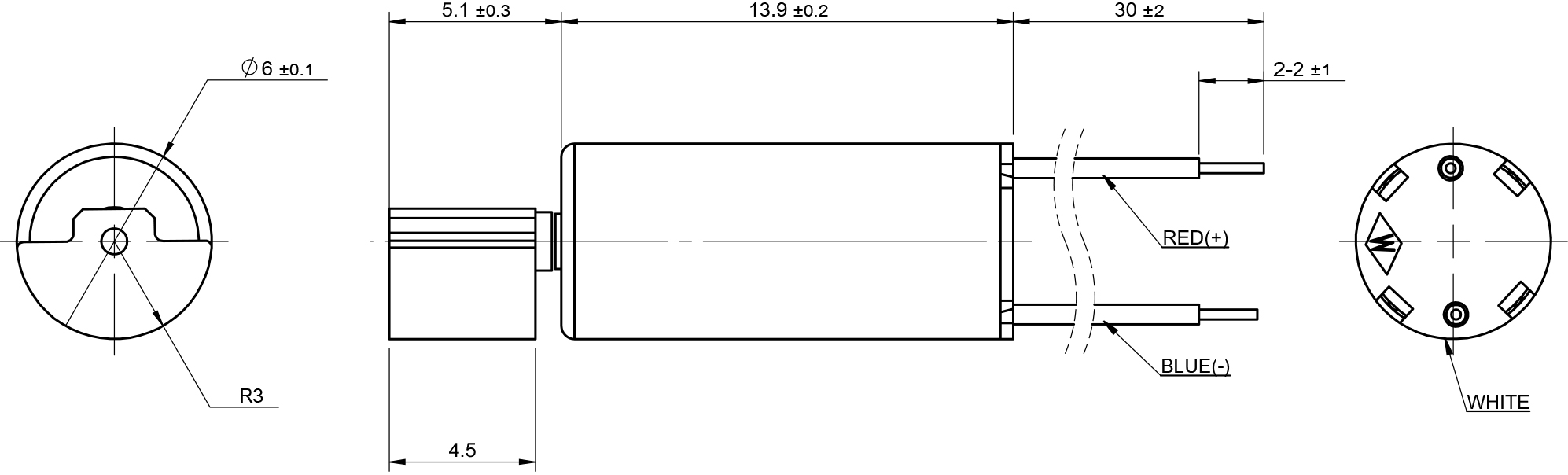

Width: 6mm; Length: 13.9mm; Voltage: 1.3v, 1.5v, 3.0v; Speed: 7100-15000rpm; Terminal resistance: 3.3-18Ω.

Applications: wearable products, mobile phones, tablet PC’s, health care products, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	51-102-3.0	17-150-1.5	41-71-1.3
Voltage	V	3.0	1.5	1.3
Terminal resistance	Ω	18	3.3	8.1
Speed	rpm	10200	15000	7100
Current	mA	50	100	50
Starting voltage	V	0.6	0.6	0.6
Stall current	mA	180	170	170
Weight	g	2.9	2.25	2.8
Operating temperature range	°C	-10～+65	-10～+65	-10～+65
