1640ZDT

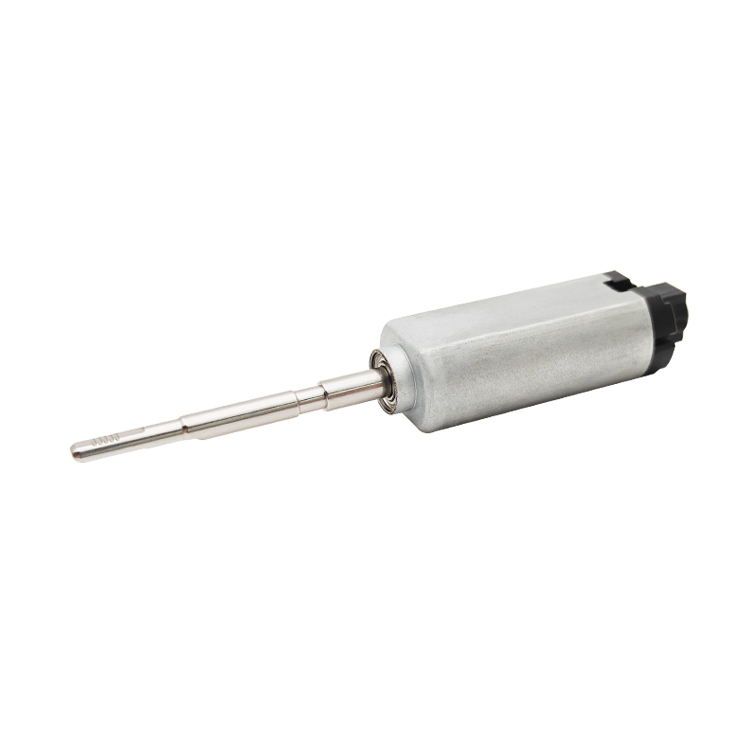

16mm sonic vibration motor

Diameter: 16mm; Length: 39.8mm; Voltage: 3.7v; Vibration frequency: 45600/48000 times;

Lifespan: 2000H; Production plant: Shenzhen Guangming plant, Chongqing Fuling plant.

Applications:electric toothbrush, health care equipment, cleaning equipment, etc.

Customizable options: gauge, lead length, shaft length, performance.

Unit price: Quote according to customer quantity and solution requirements

Nombre	Unidad	1640ZDT-1-L196-30-3.7	1640ZDT-2-L197-30-3.7	1640ZDT-2T-L207-15-3.7
Voltage	V	3.7	3.7	3.7
Resistance	Ω	3.7	4.0	4.0

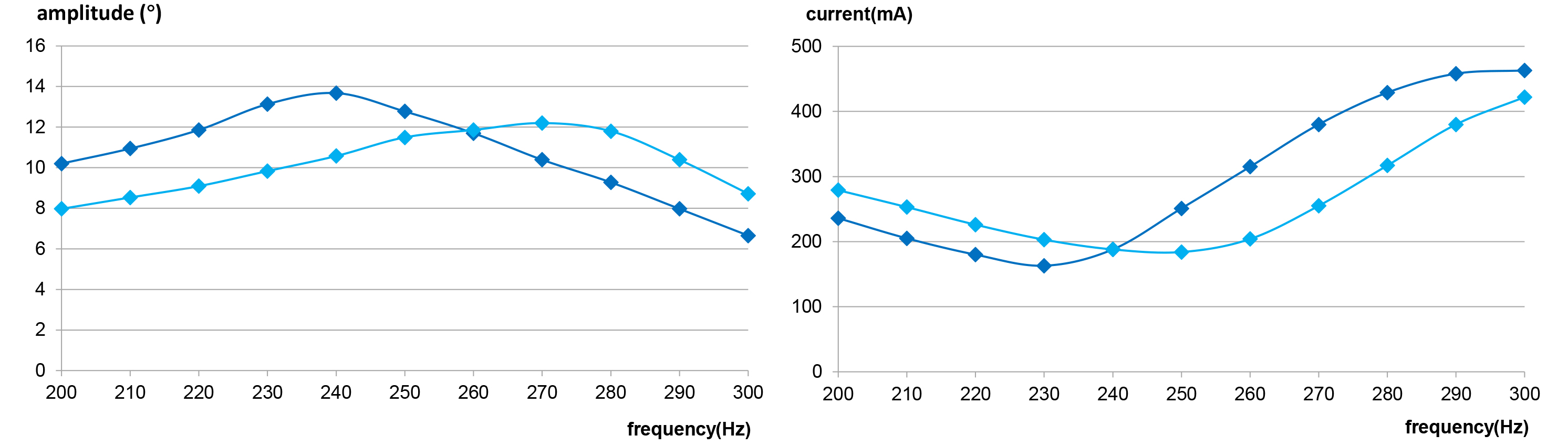

Operating frequency range	Hz	200~400	200~400	200~400
No-load vibration frequency	Times/minute	45600	45600	48000
No-load current	mA	90	85	85
Starting torque	mNm	19	17	17
Starting current	A	0.9	0.8	0.8
Rated load (Brush head)	g	4.6	4.6	5.0
Load vibration frequency	Times/minute	31200	31200	31200
Load current	mA	450	380	350
Rotor inertia	gcm²	0.35	0.27	0.27
Weight	g	23.6	21.8	22
Operating temperature range	°C	-10～+60	-10～+60	-10～+60
