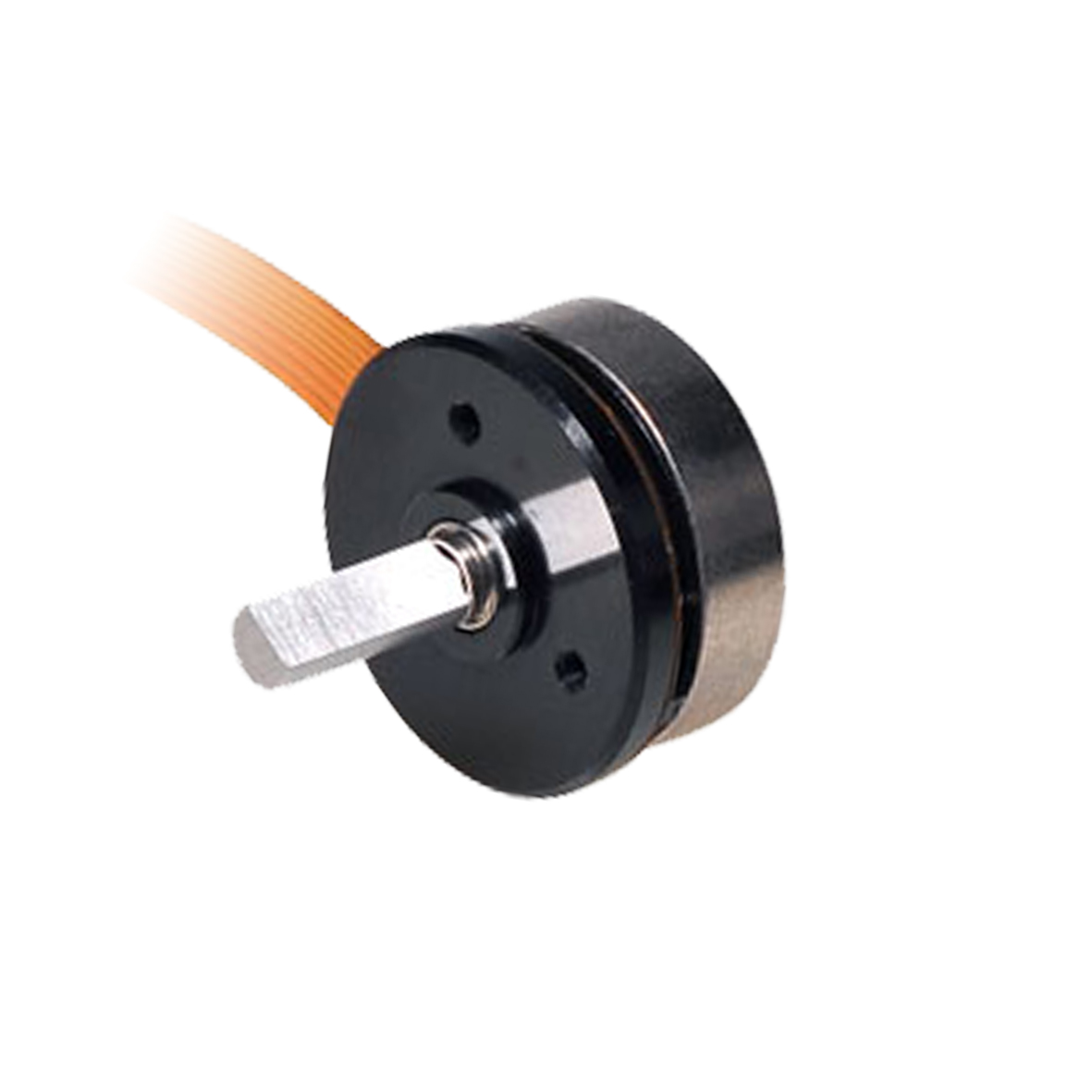

Products Brushless DC Motor Outer Rotor BO2010NB2B
BO2010NB2B
Outer Rotor

BO2010NB2B

20mm flat brushless motor

Diameter: 20mm; Length: 9.8mm; Voltage: 6.0v, 9.0v, 12.0v; Max output power: 13.8 - 15W; Speed: 27750 - 28000 rpm; Rated torque: 3.5mNm.

Application : UAV gimbal, LiDAR, laser scanning, handheld gimbal.
Customizable: Specifications, wires, shaft length, performance, bearings, gearboxes, encoders, drivers

Ask for datasheet
Customized Assessment
Ask for a quotation

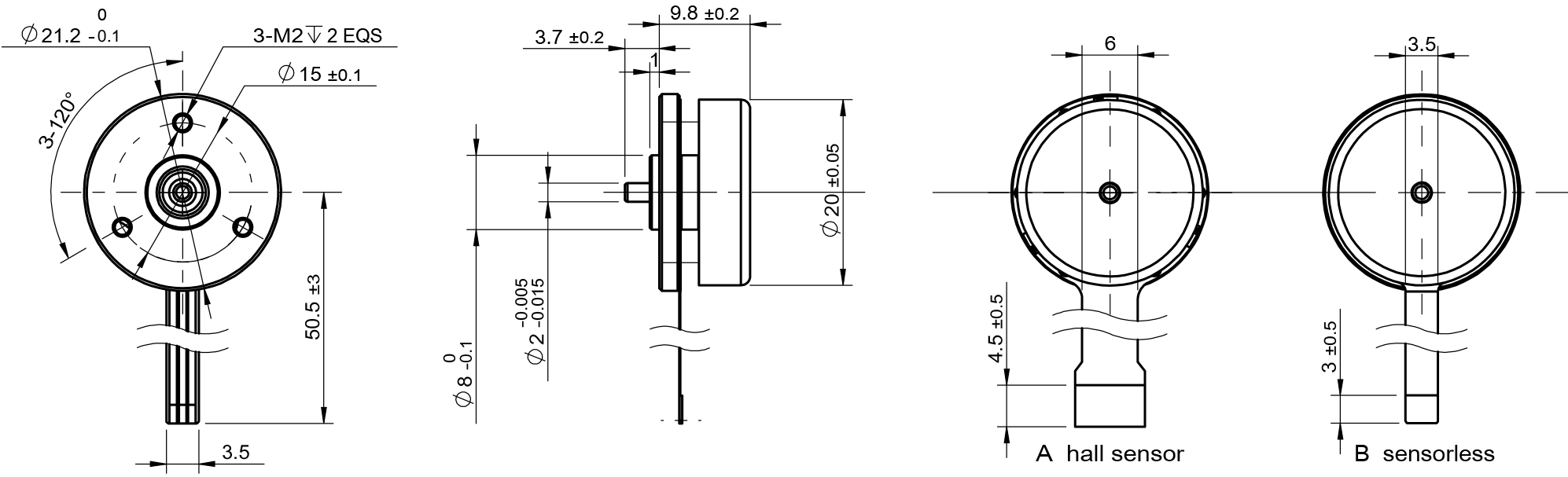

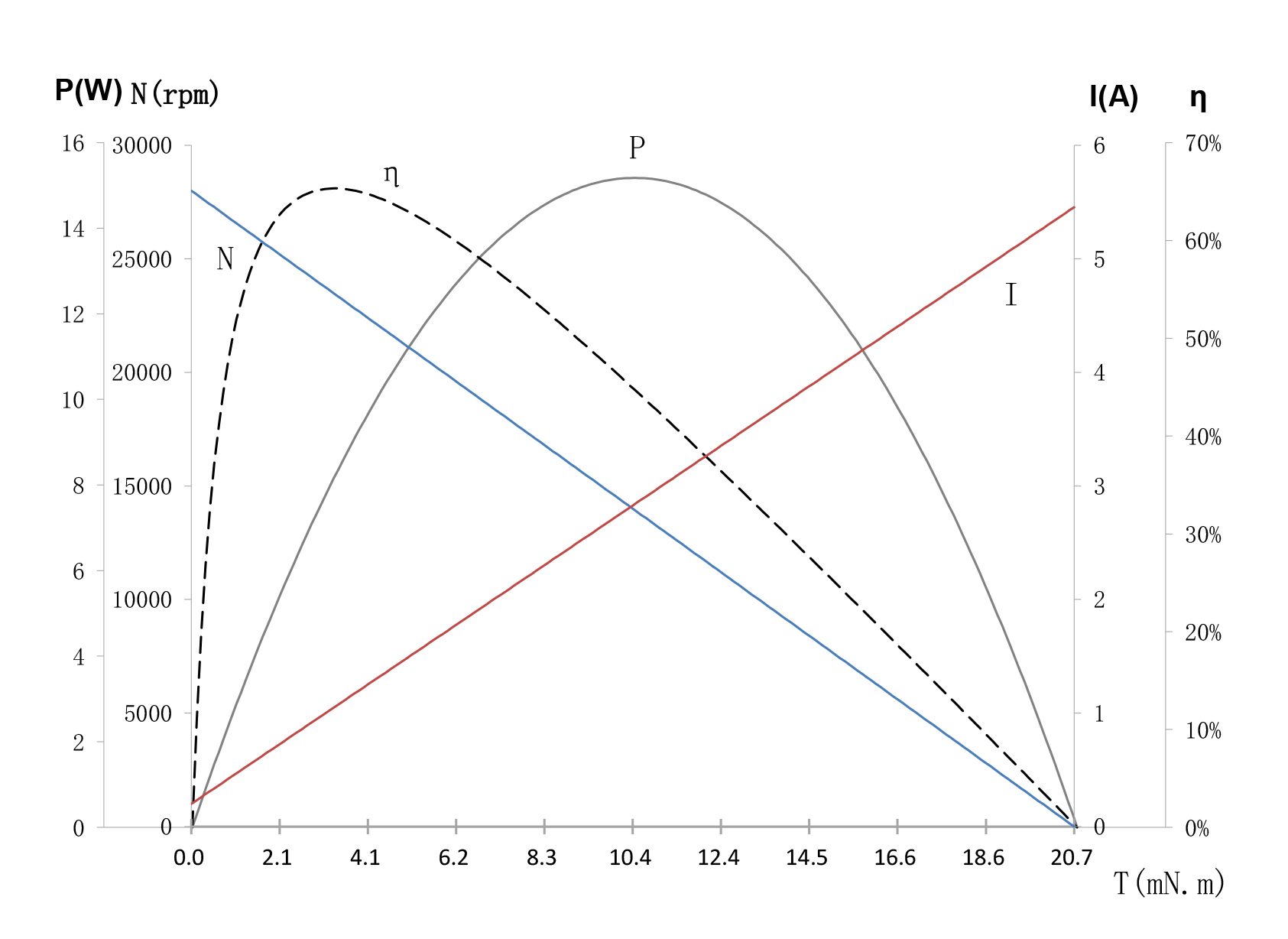

Parameter Outline Drawing Characteristic Curve Download
名称 单位 14-280-6.0 13-277-9.0 11-280-12.0
电压 V 6.0 9.0 12.0
端电阻 Ω 0.55 1.35 2.2
空载转速 rpm 28000 27750 28000
空载电流 A 0.4 0.27 0.2
堵转转矩 mNm 20.7 19 20.7
堵转电流 A 10.9 6.6 5.5
额定转矩 mNm 3.5 3.5 3.5
额定转速 rpm 23240 22820 21420
额定电流 A 2.2 1.5 1.0
最大输出功率 W 15 13.8 15
最大效率 % 65 63 65
反电势常数 mV/rpm 0.2 0.31 0.4
转矩常数 mNm/A 1.97 2.97 3.9
电感 mH 0.07 0.16 0.29
转速/转矩斜率 rpm/mNm 1351 1456 1311
转子惯量 gcm2 2.8 2.8 2.8
 重量 g 11 11 11
BO2010NB2B
