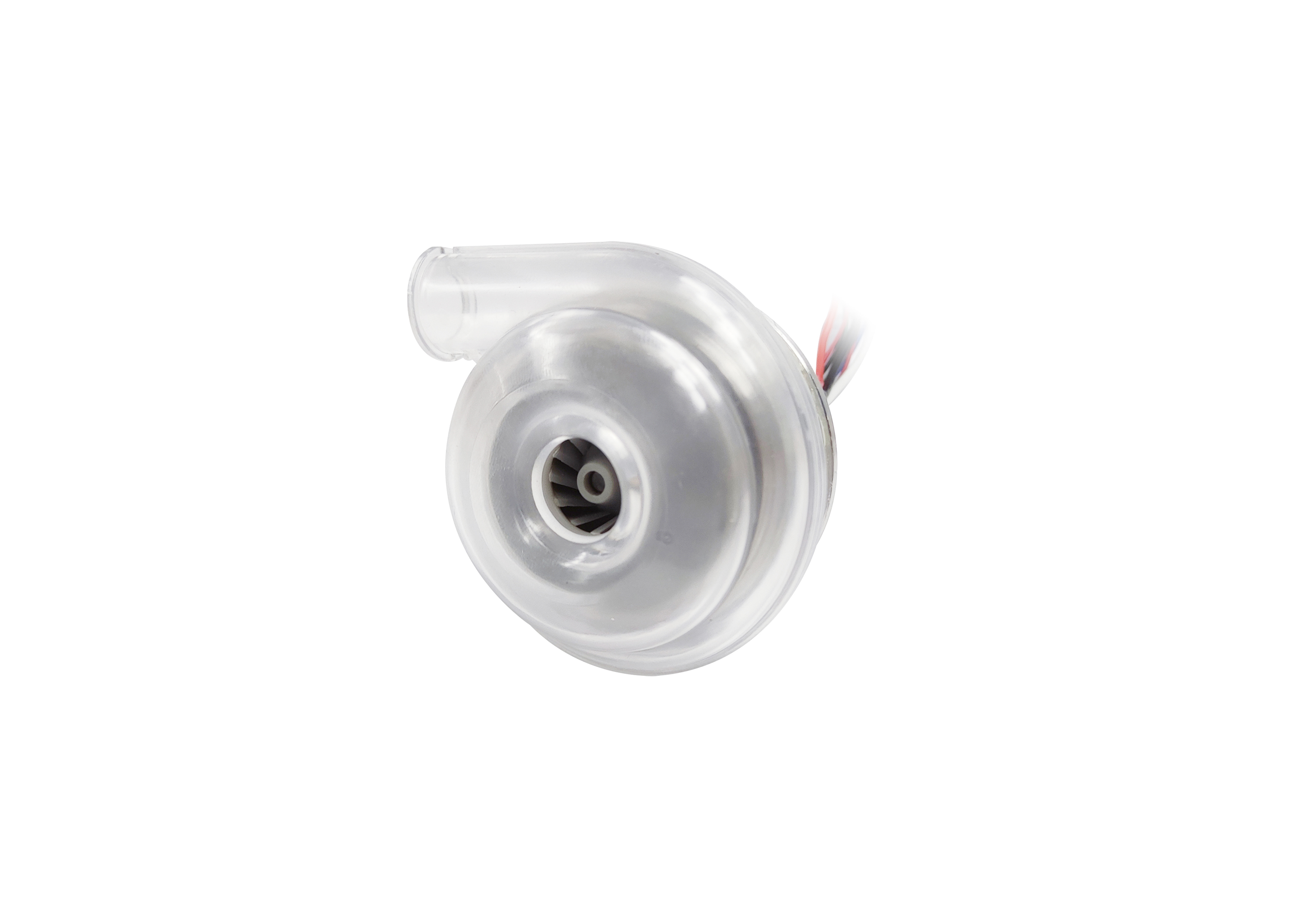

6568ZWF

24v brushless blower fan

Diameter: 65mm Height: 68mm Voltage: 24v ; Input power: 200W Flow rate: 600L/min; Air pressure: 13000Pa. Production location: Shenzhen Guangming Factory, Chongqing Fuling Factory ；Sample time: 2-5 days for regular production Daily output: 2,000 - 3,000 units

Application: Household ventilators, medical ventilators, non-invasive ventilators, industrial equipment.
Customizable: Specifications, performance, drive

Ask for datasheet

Customized Assessment

Ask for a quotation

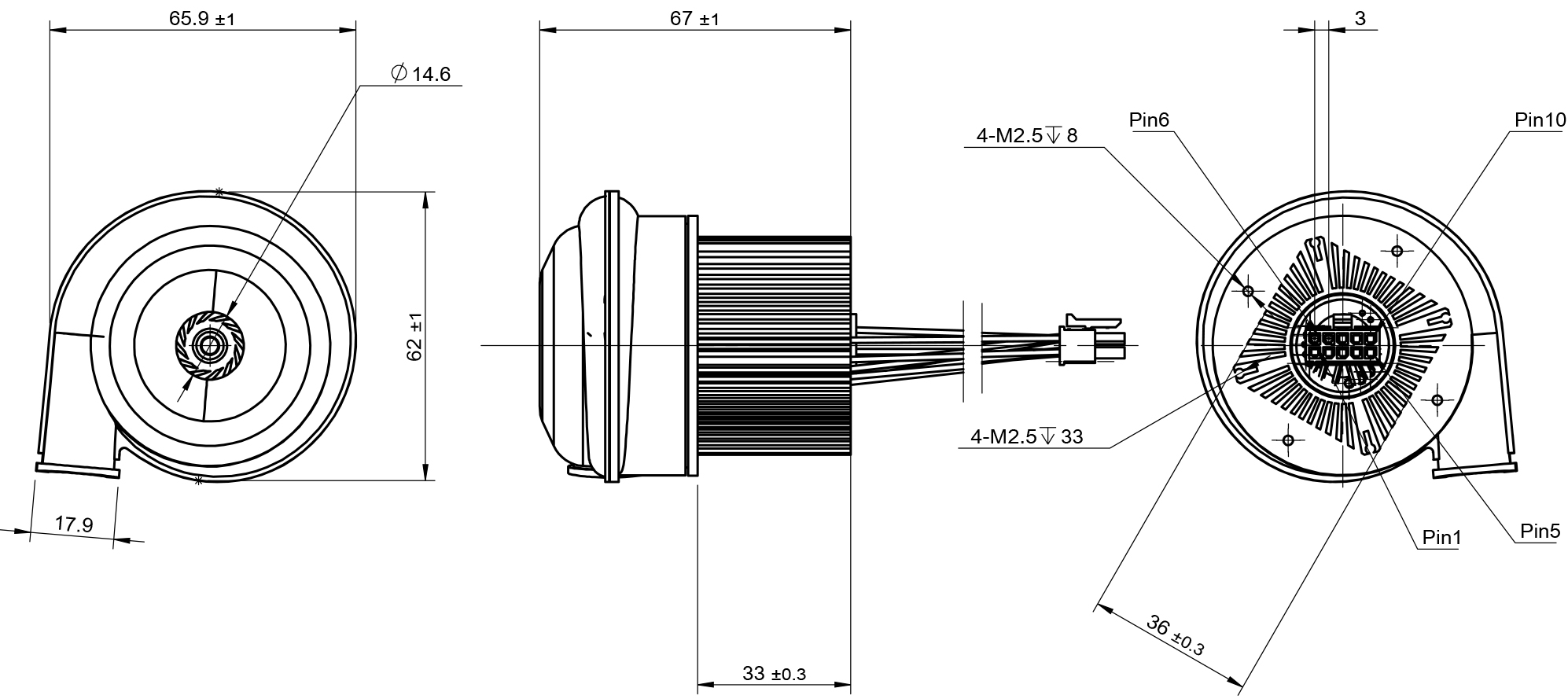

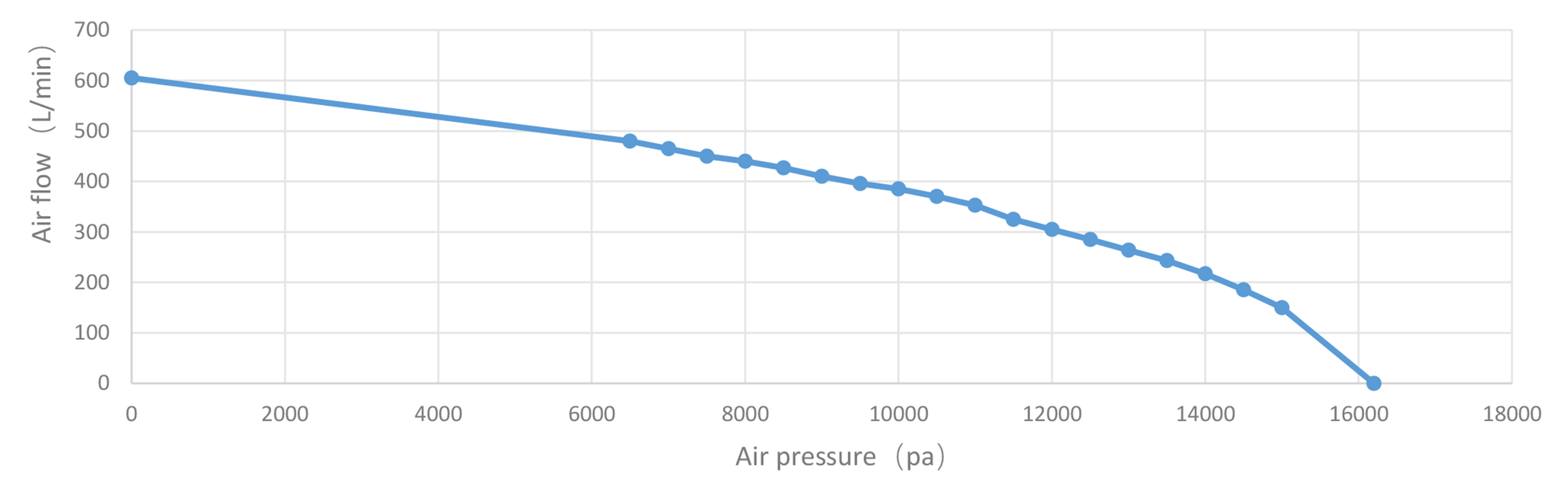

Parameter Outline Drawing Characteristic Curve Download

Characteristics	Unit	6568ZWF-3-24.0
Voltage	V	24.0
Terminal resistance	Ω	0.2
NO. of phase		3
Input power	W	200
Rated Load		风叶/Blades (出气孔/Blow hole: 4mm)
Load speed	rpm	66000
Load current	A	9.0
Air pressure	Pa	13000
Air flow	L/min	600
Noise	dB	≤40
Weight	g	237
Operating temperature range	°C	10~70
