2038ZDF/2040ZDF

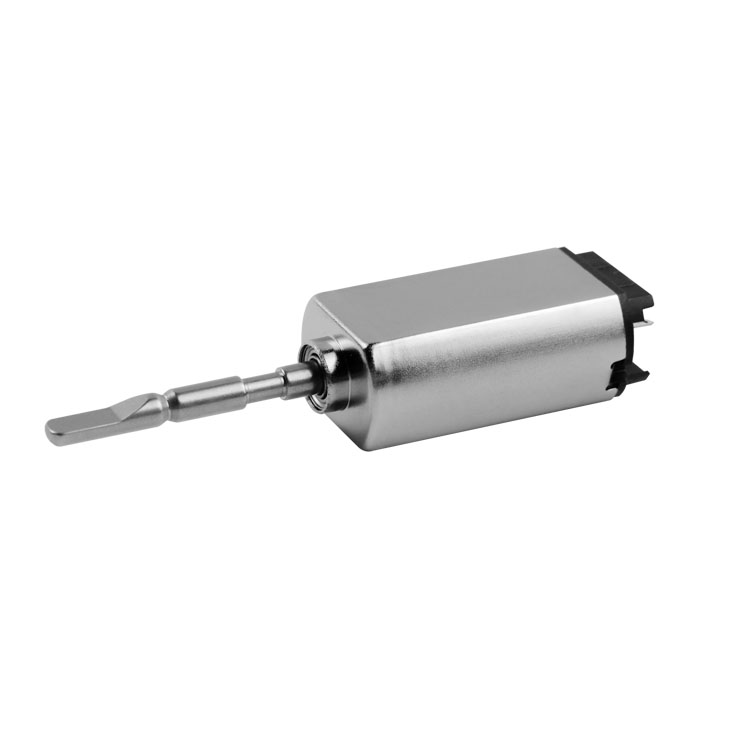

20mm sonic vibration motor

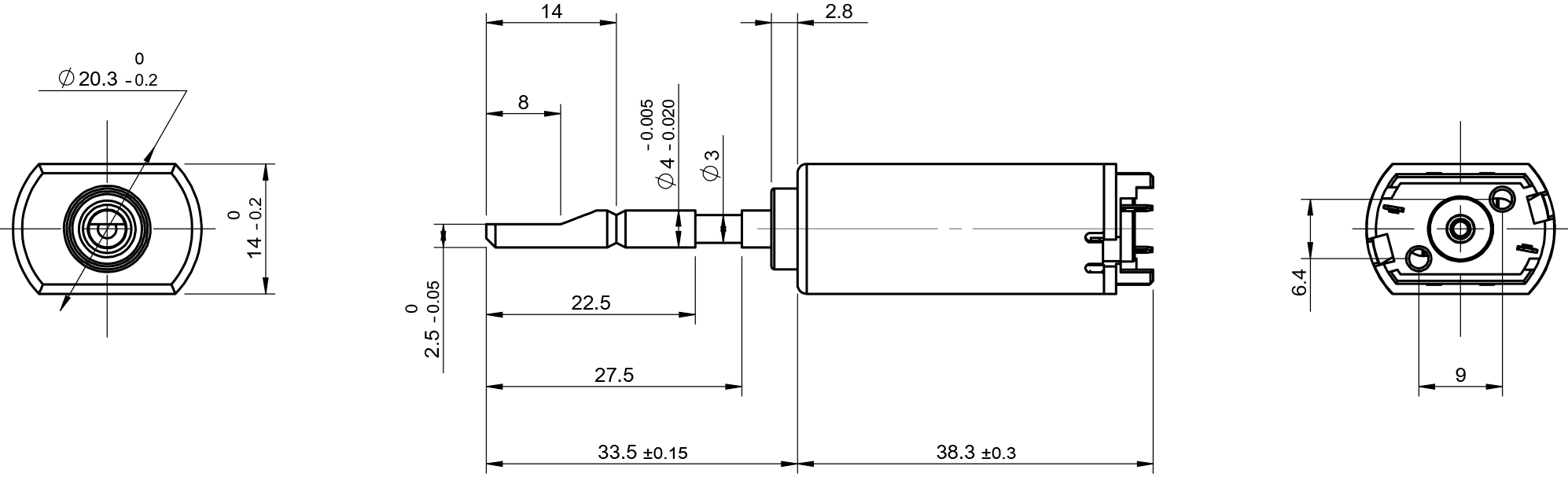

Diameter: 20.3mm; Length: 38.3/40mm; Voltage: 3.7v; Vibration frequency: 34800 times;

Lifespan: 2000H; Production plant: Shenzhen Guangming plant, Chongqing Fuling plant.

Applications:electric toothbrush, health care equipment, cleaning equipment, etc.

Customizable options: gauge, lead length, shaft length, performance.

Unit price: Quote according to customer quantity and solution requirements

Nombre	Unidad	2038ZDF-BW-3-L4-3.7	2040ZDF-3-L1-3.7	2038ZDF-ET-L4-3.7
Voltage	V	3.7	3.7	3.7
Resistance	Ω	3.2	3.2	3.2
Operating frequency range	Hz	230~330	220~320	220~320
No-load vibration frequency	Times/minute	34800	34800	34800
No-load current	mA	90	90	95
Starting torque	mNm	22	23	22
Starting current	A	1.15	1.2	1.15
Rated load (Brush head)	g	4.4	4.4	4.4
Load vibration frequency	Times/minute	31000	31000	31000
Load current	mA	400	500	450
Rotor inertia	gcm²	2.4	2.4	2.4
Weight	g	31	31	31
Operating temperature range	°C	-10～+60	-10～+60	-10～+60
