VL0612N3M

6mm DC Coreless Motor Series

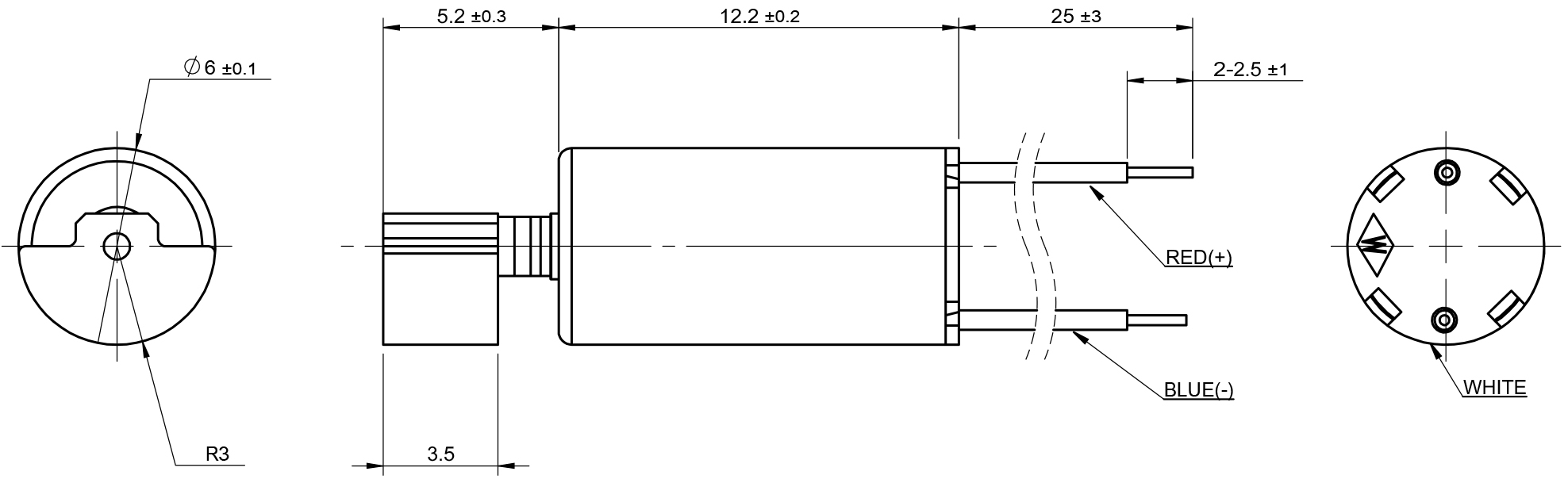

Width: 6mm; Length: 12.2mm; Voltage: 1.3v, 1.5v, 3.7v; Speed: 9500-13000rpm; Terminal resistance: 6.4-26.4Ω.

Applications: wearable products, mobile phones, tablet PC’s, health care products, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	42-95-1.3	24-125-3.7	52-130-1.5
Voltage	V	1.3	3.7	1.5
Terminal resistance	Ω	7.8	26.4	6.4
Speed	rpm	9500	12500	13000
Current	mA	70	80	90
Starting voltage	V	0.8	1.5	0.8
Stall current	mA	200	200	200
Weight	g	2.3	2.49	2.1
Operating temperature range	°C	-10～+65	-10～+65	-10～+65
