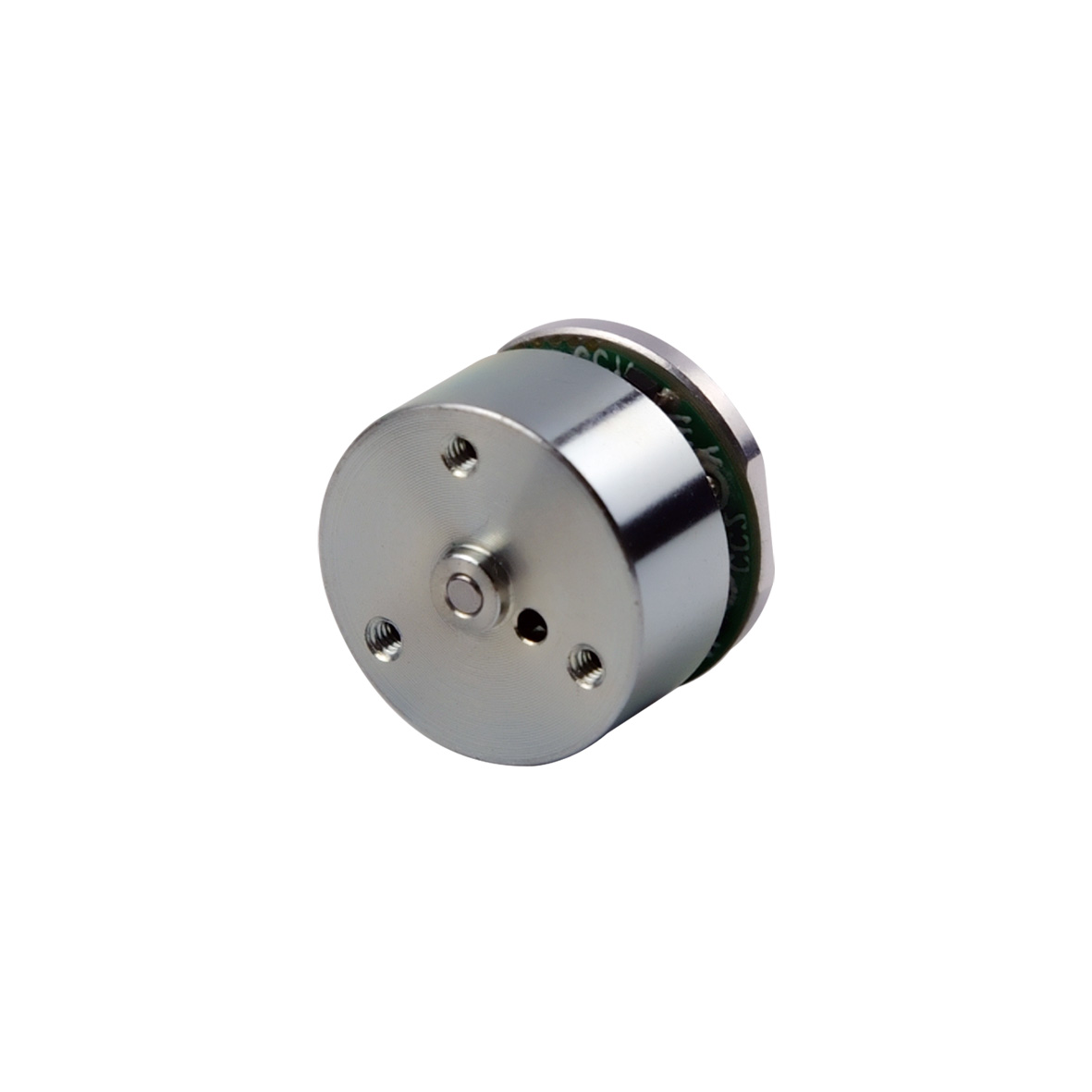

BO1410NBH2B

Micro Gimble Motor
Diameter: 13.8mm; Length: 9.5mm; Voltage: 7.6v, 9v; Max output power: 1.7W; Speed: 14200rpm; Rated torque: 1.3 - 1.5mNm.

Application : UAV gimbal, LiDAR, laser scanning, handheld gimbal.
Customizable : Specifications, wires, shaft length, performance, bearings, gearbox, Hall sensors, encoders, drivers

Ask for datasheet

Customized Assessment

Ask for a quotation

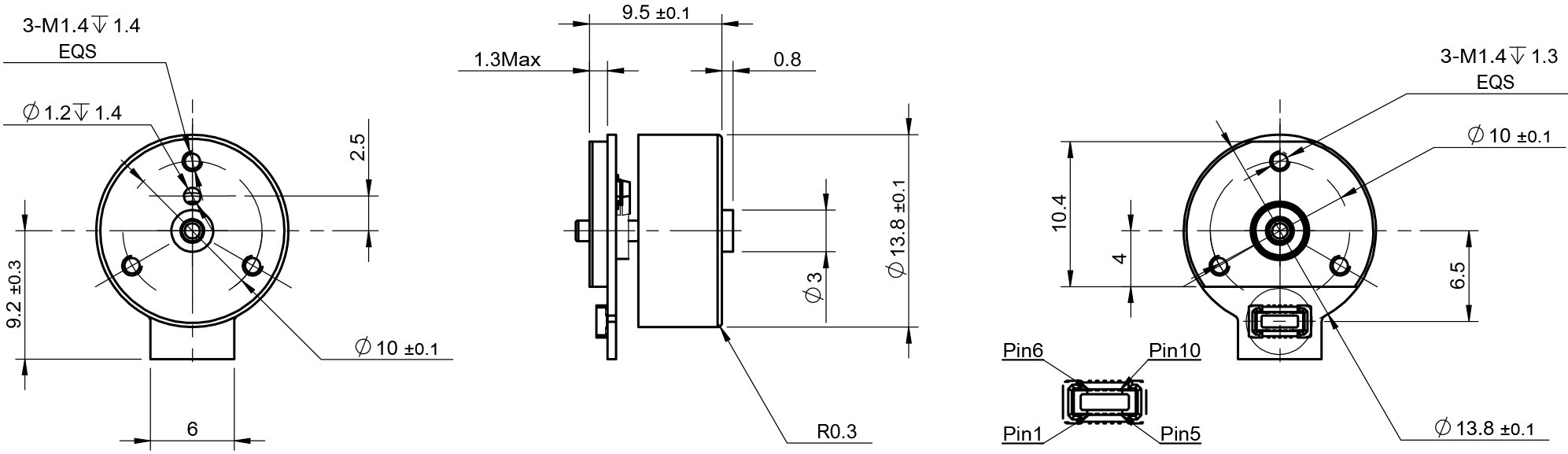

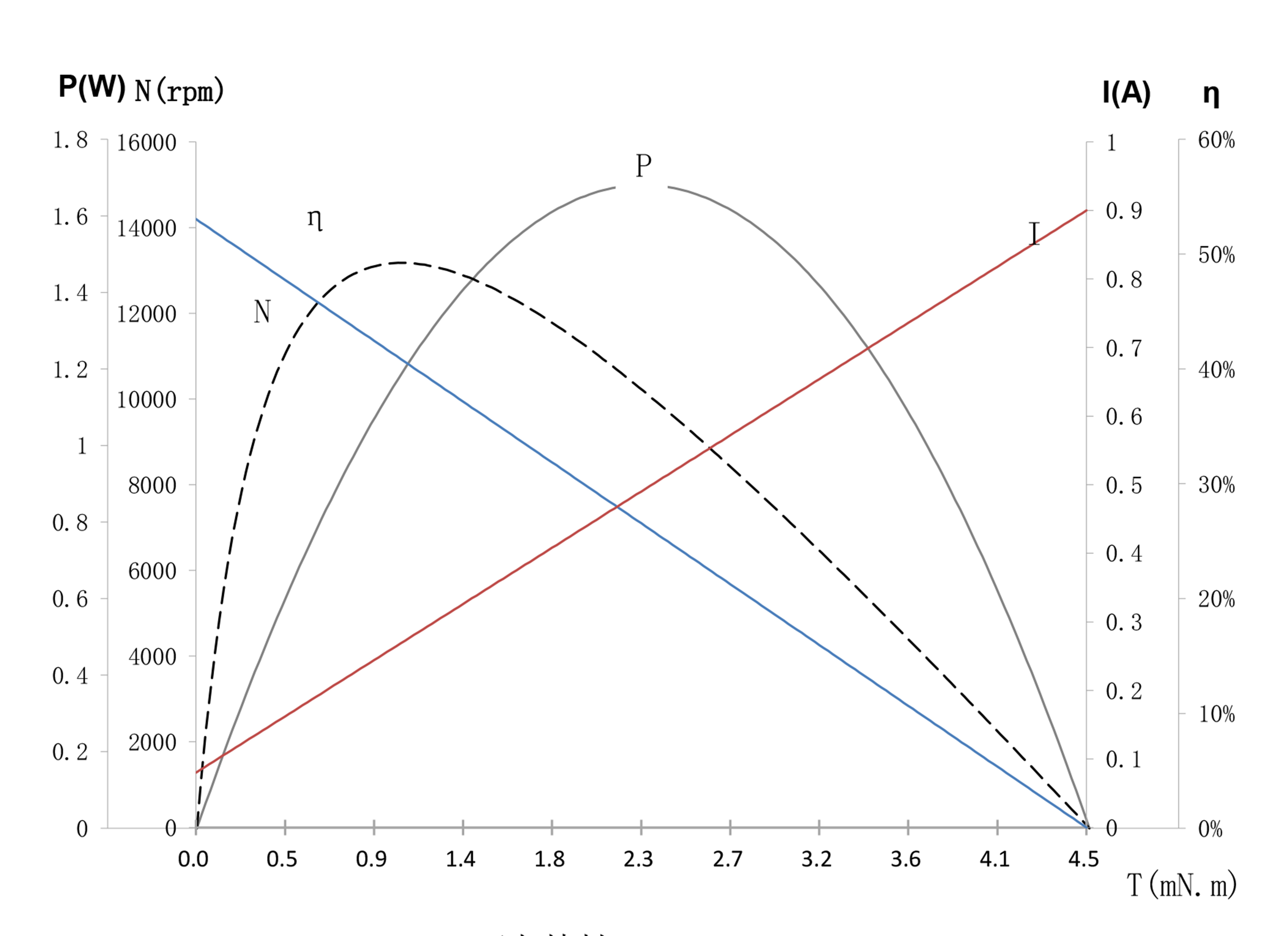

Parameter Outline Drawing Characteristic Curve Download

Characteristics	UNIT	01-142-9.0	02-142-7.6
Voltage	V	9.0	7.6
Terminal resistance	Ω	10	7
No-load speed	rpm	14200	14200
No-load current	mA	80	90
Stall torque	mNm	4.5	4.6
Stall current	mA	900	1080
Nominal torque	mNm	1.3	1.5
Nominal speed	rpm	7950	7650
Nominal current	mA	350	430
Max.output power	W	1.7	1.7
Max.efficiency	%	49.2	50.7
Back-EMF constant	mV/rpm	0.57	0.49
Torque constant	mNm/A	5.5	4.7
Terminal Inductance	mH	0.65	0.46
Speed/torque gradient	rpm/mNm	3140	3020
Rotor inertia	gcm²	1	1
Weight	g	5.4	5.4
