VL0408N3M

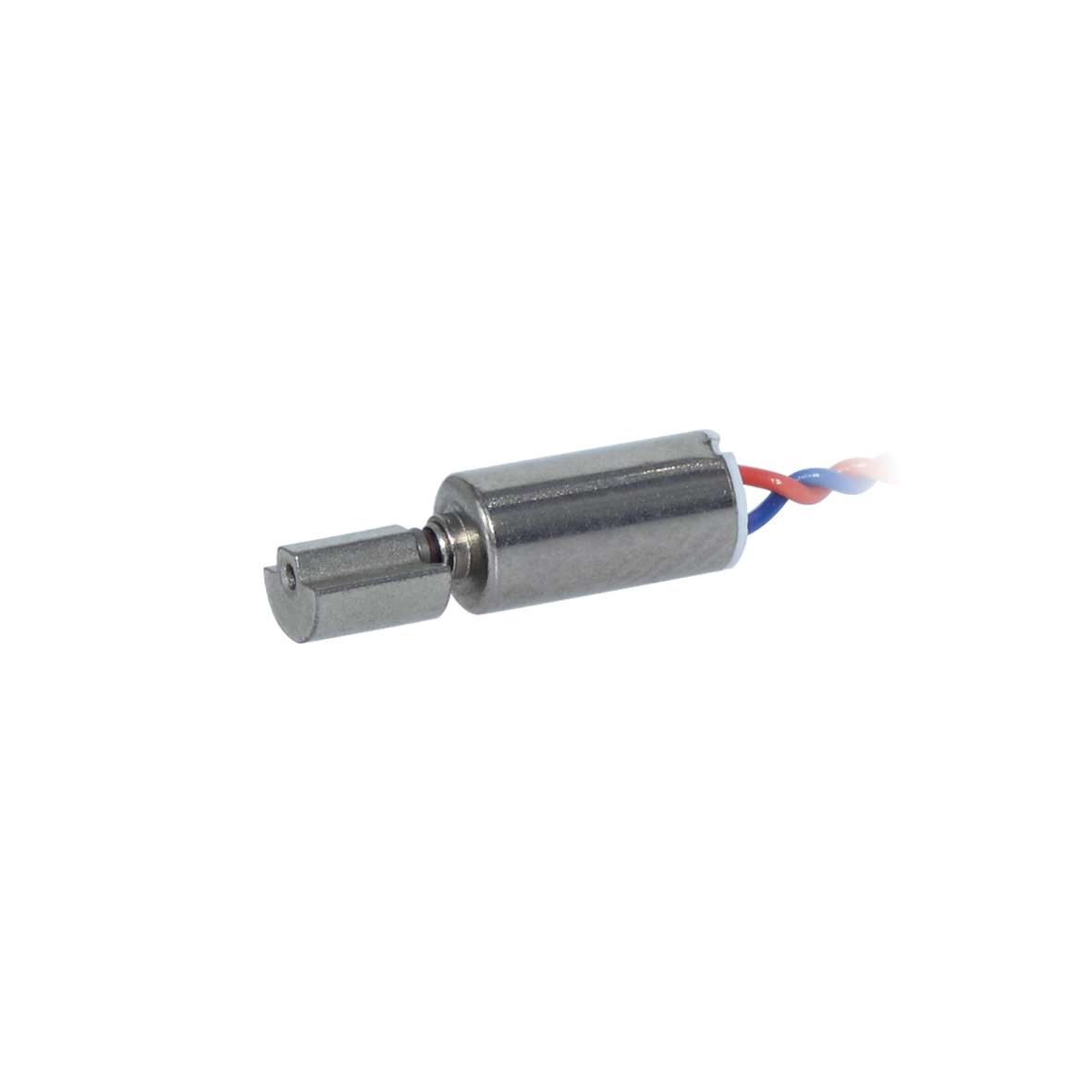

4mm DC Coreless Motor Series

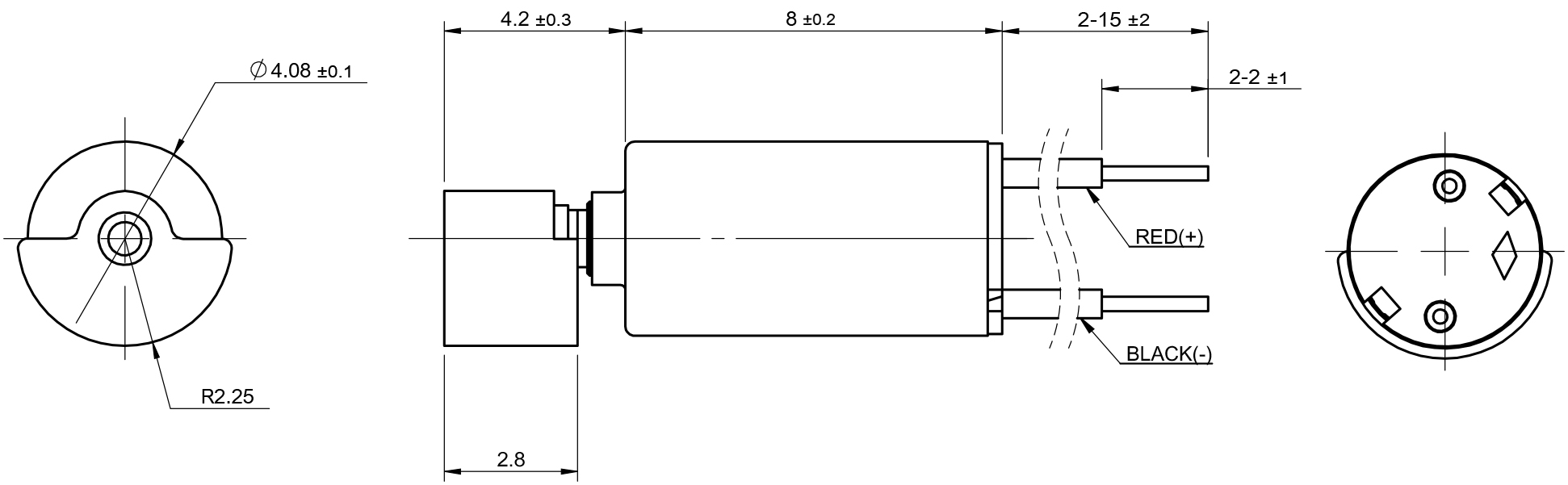

Width: 4.08mm; Length: 8mm; Voltage: 2.7v, 3.0v; No-load speed: 8500-20000rpm; Terminal resistance: 12.8-32Ω.

Applications: wearable products, mobile phones, tablet PC’s, health care products, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	10-120-3.0	10-85-2.7	70-220-3.0
Voltage	V	3.0	2.7	3.0
Terminal resistance	Ω	32	32	12.8
Speed	rpm	12000	8500	20000
Current	mA	75	70	185
Starting voltage	V	1.4	1.5	1.5
Stall current	mA	95	100	230
Weight	g	0.8	1.15	0.85
Operating temperature range	°C	-10～+65	-10～+65	-10～+65
