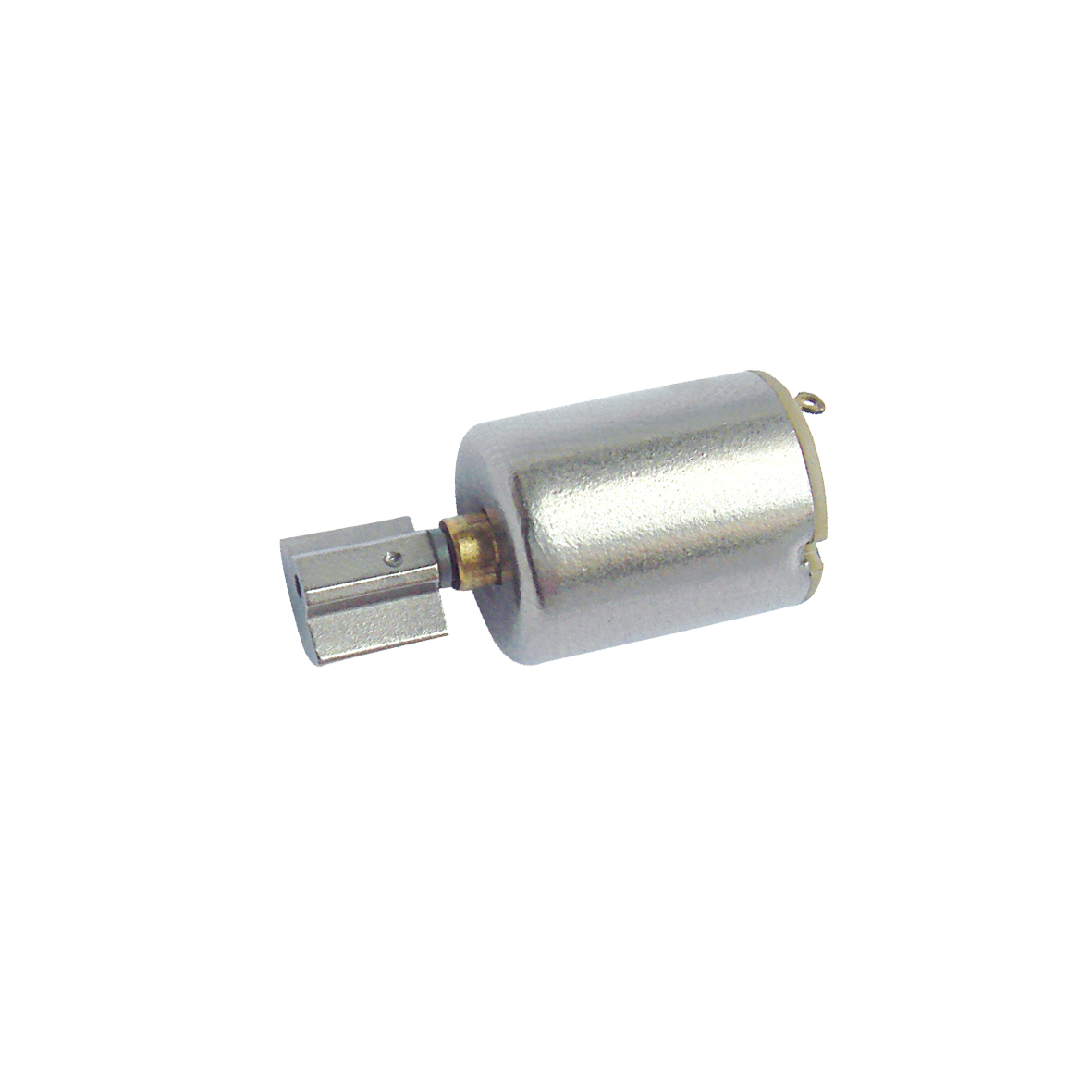

VL1013N5M

10mm DC Coreless Motor Series

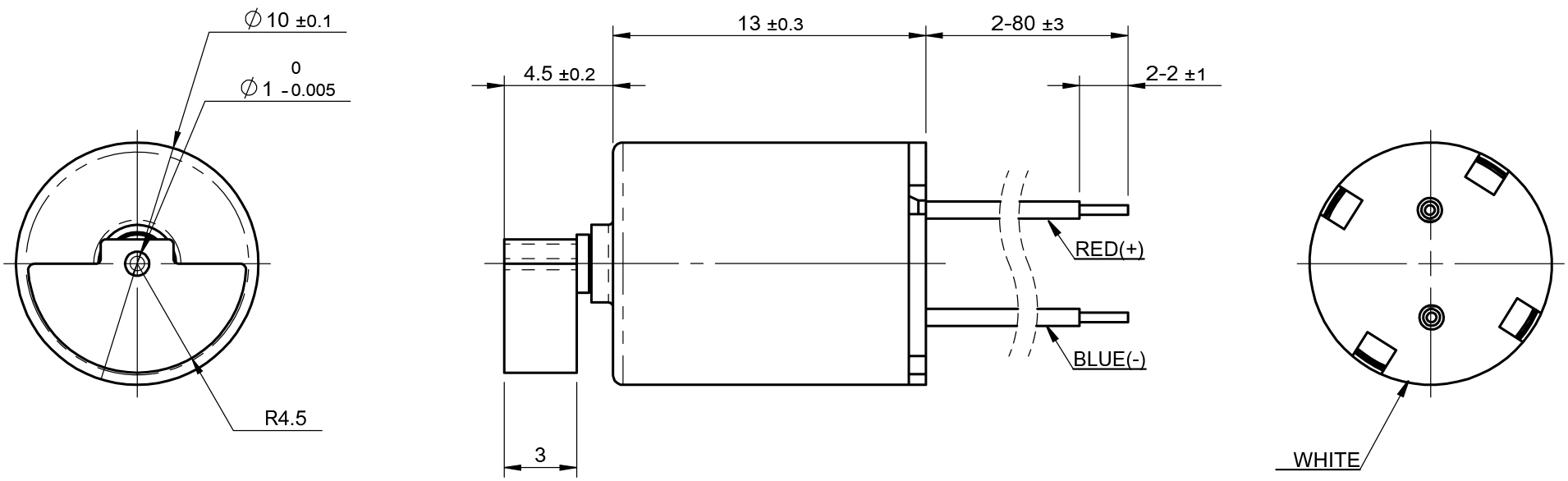

Width: 10mm; Length: 13mm; Voltage: 1.3v, 3.0v, 3.7v; Speed: 4100-8900rpm; Terminal resistance: 7.1-26.4Ω.

Applications: wearable products, mobile phones, tablet PC’s, health care products, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	09-89-3.0	10-73-3.7	25-41-1.3
Voltage	V	3.0	3.7	1.3
Terminal resistance	Ω	7.7	26.4	7.1
Speed	rpm	8900	7200	4100
Current	mA	119	26	130
Starting voltage	V	0.8	0.8	0.8
Stall current	mA	380	140	200
Weight	g	6.1	7.8	6.7
Operating temperature range	°C	-20～+65	-20～+65	-20～+65
