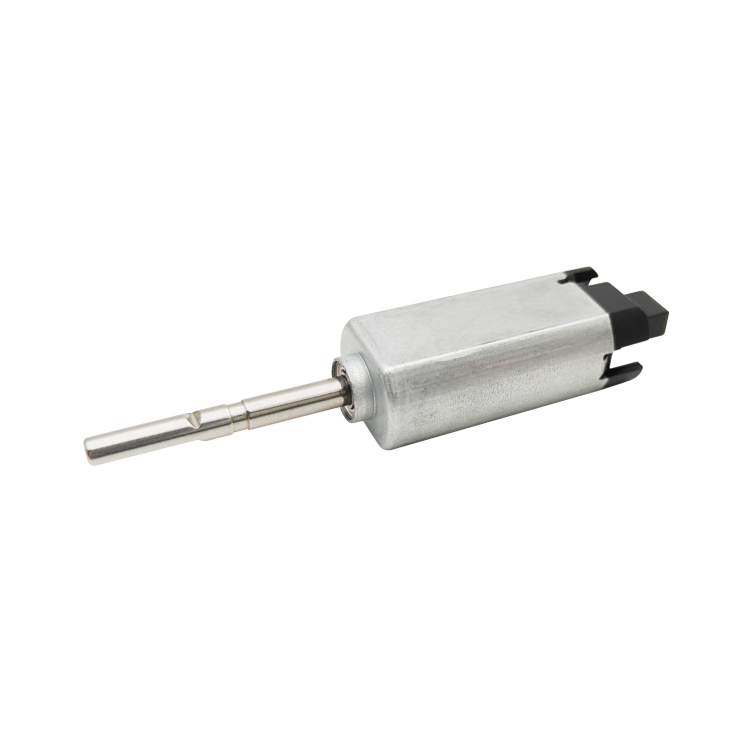

1840ZDT

18mm sonic vibration motor

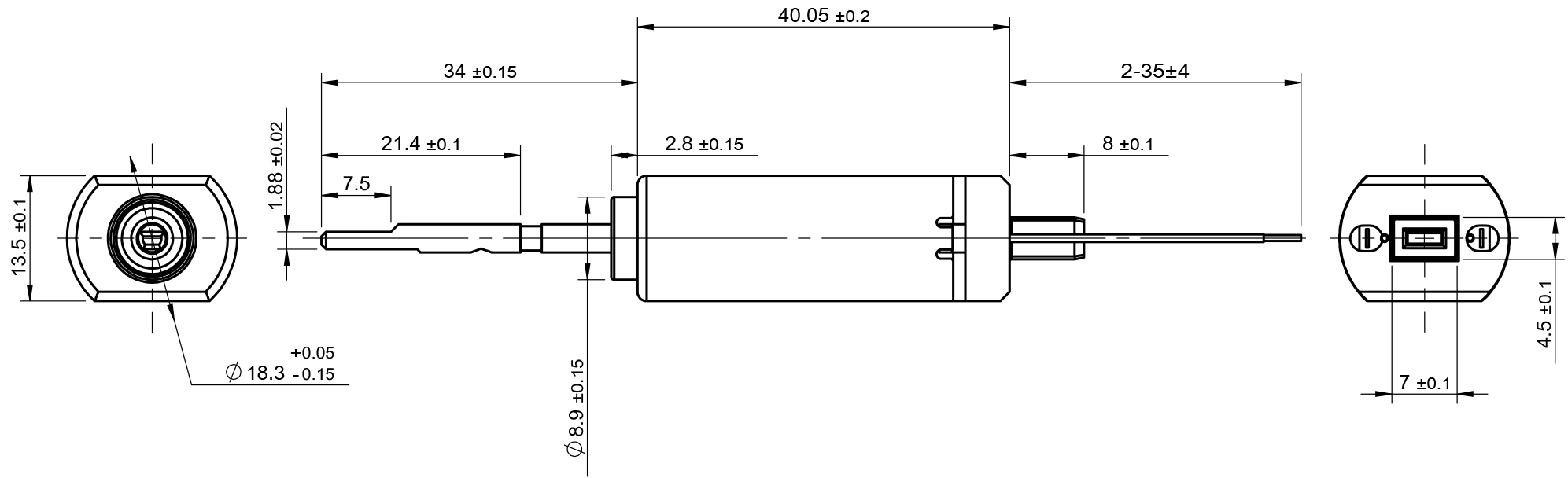

Diameter: 18.3mm; Length: 40.05mm; Voltage: 3.7v; Vibration frequency: 43200/45600 times;

Lifespan: 2000H; Production plant: Shenzhen Guangming plant, Chongqing Fuling plant.

Applications:electric toothbrush, health care equipment, cleaning equipment, etc.

Customizable options: gauge, lead length, shaft length, performance.

Unit price: Quote according to customer quantity and solution requirements

Nombre	Unidad	1840ZDT-2-L202-30-3.7	1840ZDT-3T-L212-35-3.7	1836ZDT-1-L1-30-3.7
Voltage	V	3.7	3.7	3.7
Resistance	Ω	8	5.1	3.1

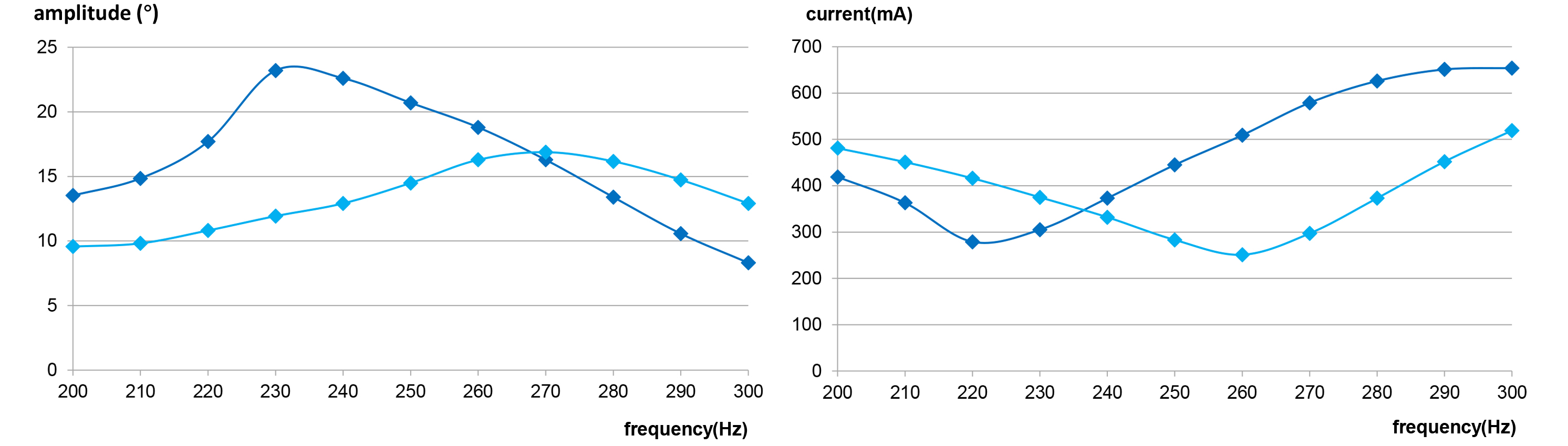

Operating frequency range	Hz	200~400	200~400	200~400
No-load vibration frequency	Times/minute	45600	43200	45600
No-load current	mA	55	70	105
Starting torque	mNm	19	21	22
Starting current	A	0.8	0.9	1.0
Rated load (Brush head)	g	4.2	3.5	4.5
Load vibration frequency	Times/minute	33600	34800	33000
Load current	mA	240	400	480
Rotor inertia	gcm²	0.27	0.47	0.26
Weight	g	25	27	27
Operating temperature range	°C	-10～+60	-10～+60	-10～+60
