Sonic Motor

1339ZDF

13mm sonic vibration motor

Diameter: 13.5mm; Length: 39mm; Voltage: 2.5v, 3.7v, 5.0v; Vibration frequency: 39600 times;

Lifespan: 2000H; Production plant: Shenzhen Guangming plant, Chongqing Fuling plant.

Applications:electric toothbrush, health care equipment, cleaning equipment, etc.

Customizable options: gauge, lead length, shaft length, performance.

Unit price: Quote according to customer quantity and solution requirements

Ask for datasheet
Customized Assessment
Ask for a quotation

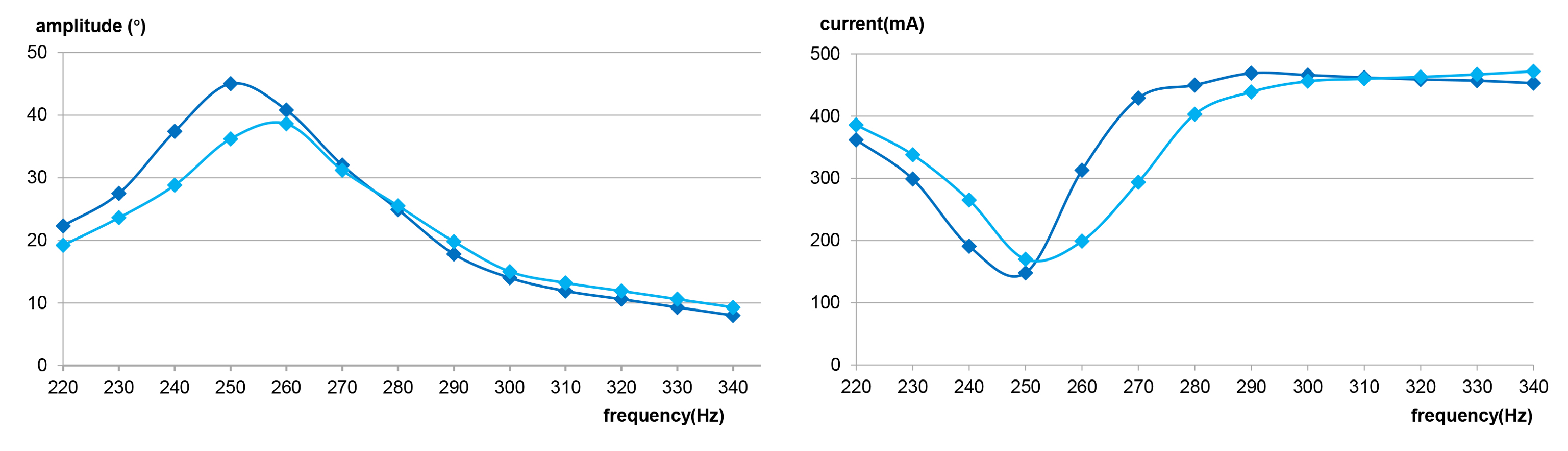

Parameter Outline Drawing Characteristic Curve Download
Nombre Unidad 1339ZDF-1-L2-3.7 1339ZDF-1-L3-2.5 1339ZDF-1-L4-5.0
Voltage V 3.7  2.5  5.0
Resistance Ω 4.0  4.0  4.0
Operating frequency range Hz 220~360 220~360 220~360
No-load vibration frequency Times/minute 39600 39600 39600
No-load current mA 90 75 110
Starting torque mNm 11 8 15
Starting current A 0.9  0.7  1.2
Rated load (Brush head) g 3.8 3.8 3.8
Load  vibration frequency Times/minute 31200 31200 31200
Load current mA 400 330 480
Rotor inertia gcm2 0.75  0.75  0.75
Weight g 19 19 19
Operating temperature range °C -10～+60 -10～+60 -10～+60
