BO6133N2B

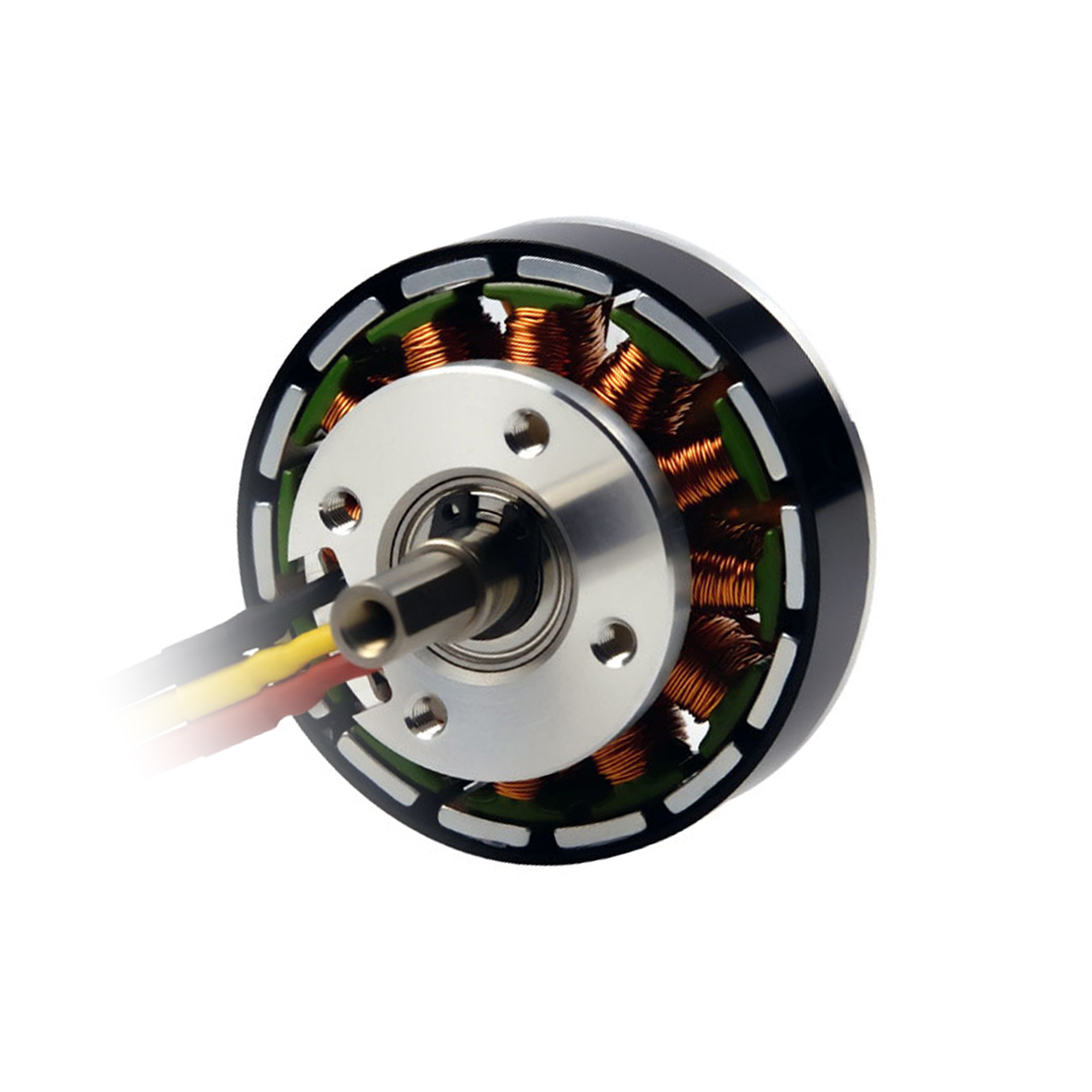

61mm 36V brushless motor
Diameter: 61.2mm; Length: 33mm; Voltage: 24.0v, 36.0v, 48.0v; Max output power: 730 - 749W; Speed: 5000rpm; Rated torque: 553 - 558mNm.

Application: Drone, electric tools, automation equipment, smart home and other driving fields.
Customizable: Specifications, wires, shaft length, performance, bearings, gearbox, Hall sensors, encoders, driver.

Ask for datasheet

Customized Assessment

Ask for a quotation

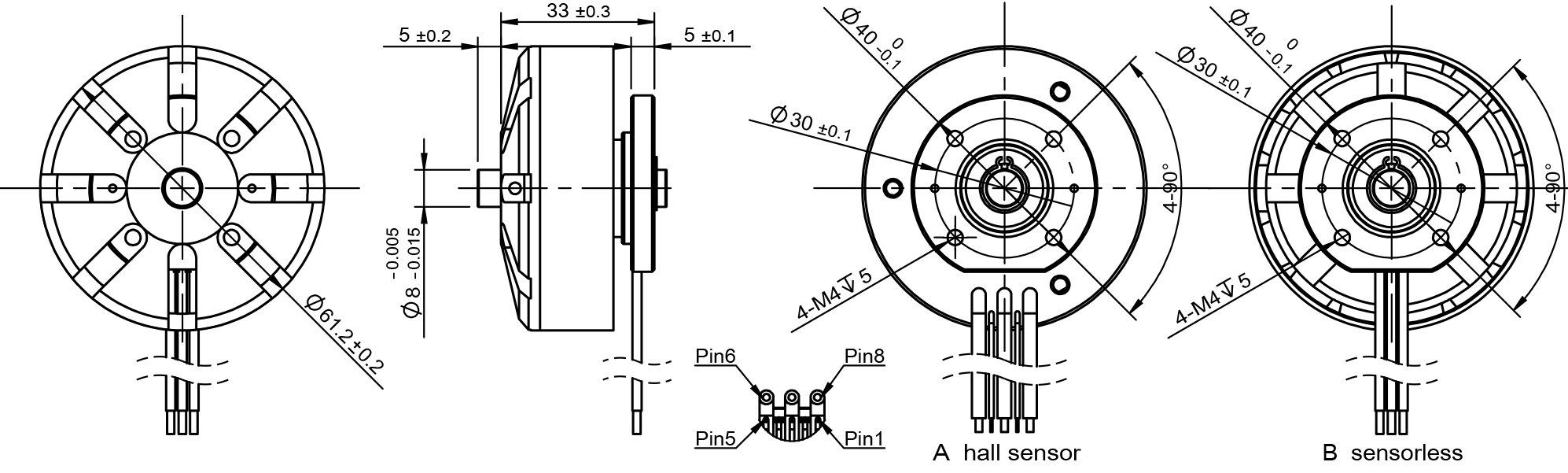

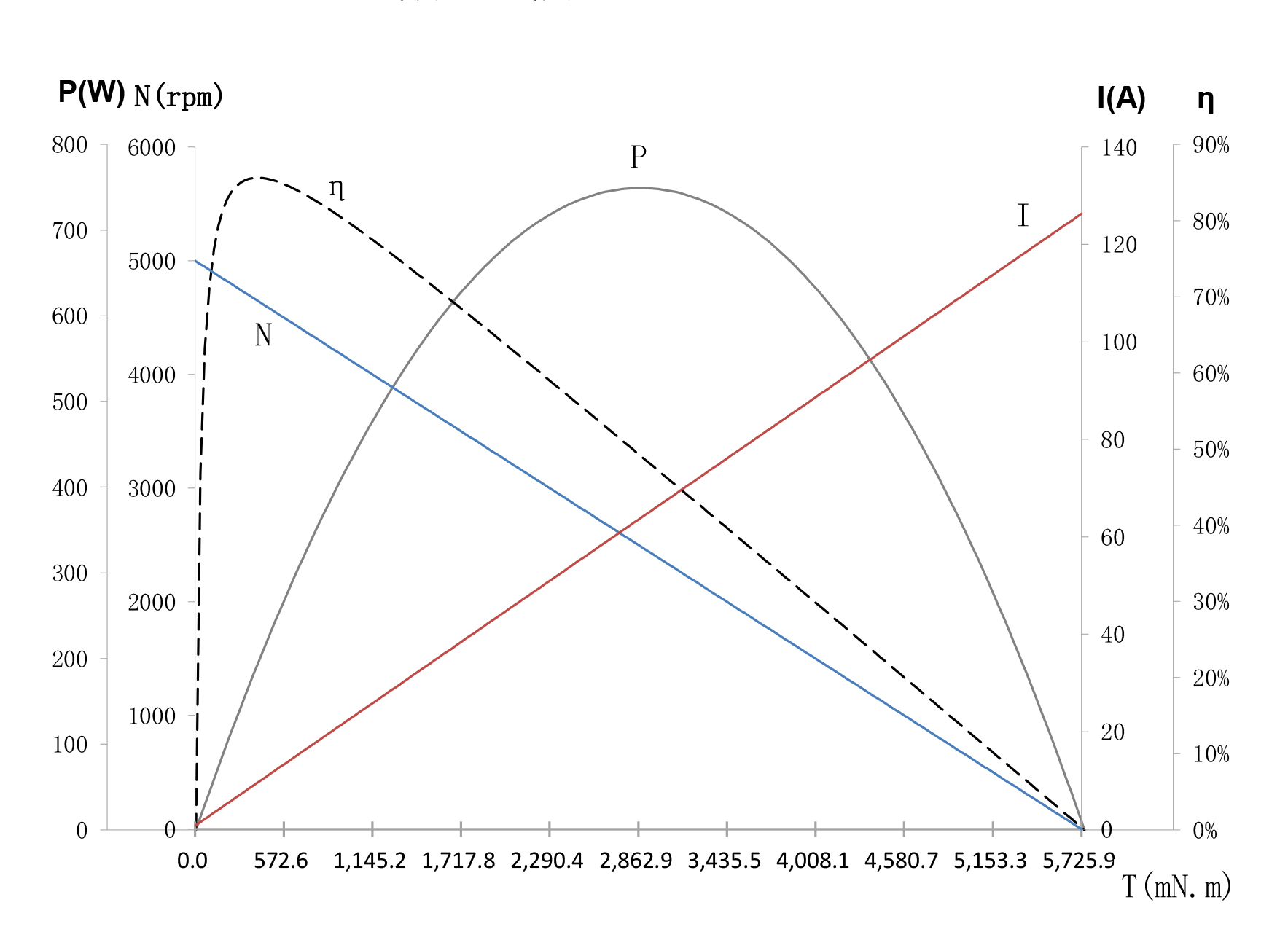

Parameter Outline Drawing Characteristic Curve Download

Characteristics	UNIT	01-50-48.0	02-50-36.0	03-50-24.0
Voltage	V	48.0	36.0	24.0
Terminal resistance	Ω	0.78	0.43	0.19
No-load speed	rpm	5000	5000	5000
No-load current	A	0.35	0.5	0.7
Stall torque	mNm	5577	5687	5725
Stall current	A	61.5	83.7	126.3
Nominal torque	mNm	558	553	558
Nominal speed	rpm	3700	3700	3700
Nominal current	A	5.5	7.3	11
Max.output power	W	730	744	749
Max.efficiency	%	85.4	85.1	85.6
Back-EMF constant	mV/rpm	9.5	7.2	4.8
Torque constant	mNm/A	91.2	68.3	45.6
KV Value	mH	104	139	208
Speed/torque gradient	rpm/mNm	0.9	0.9	0.9
Rotor inertia	gcm²	599	599	599
Weight	g	230	230	230
