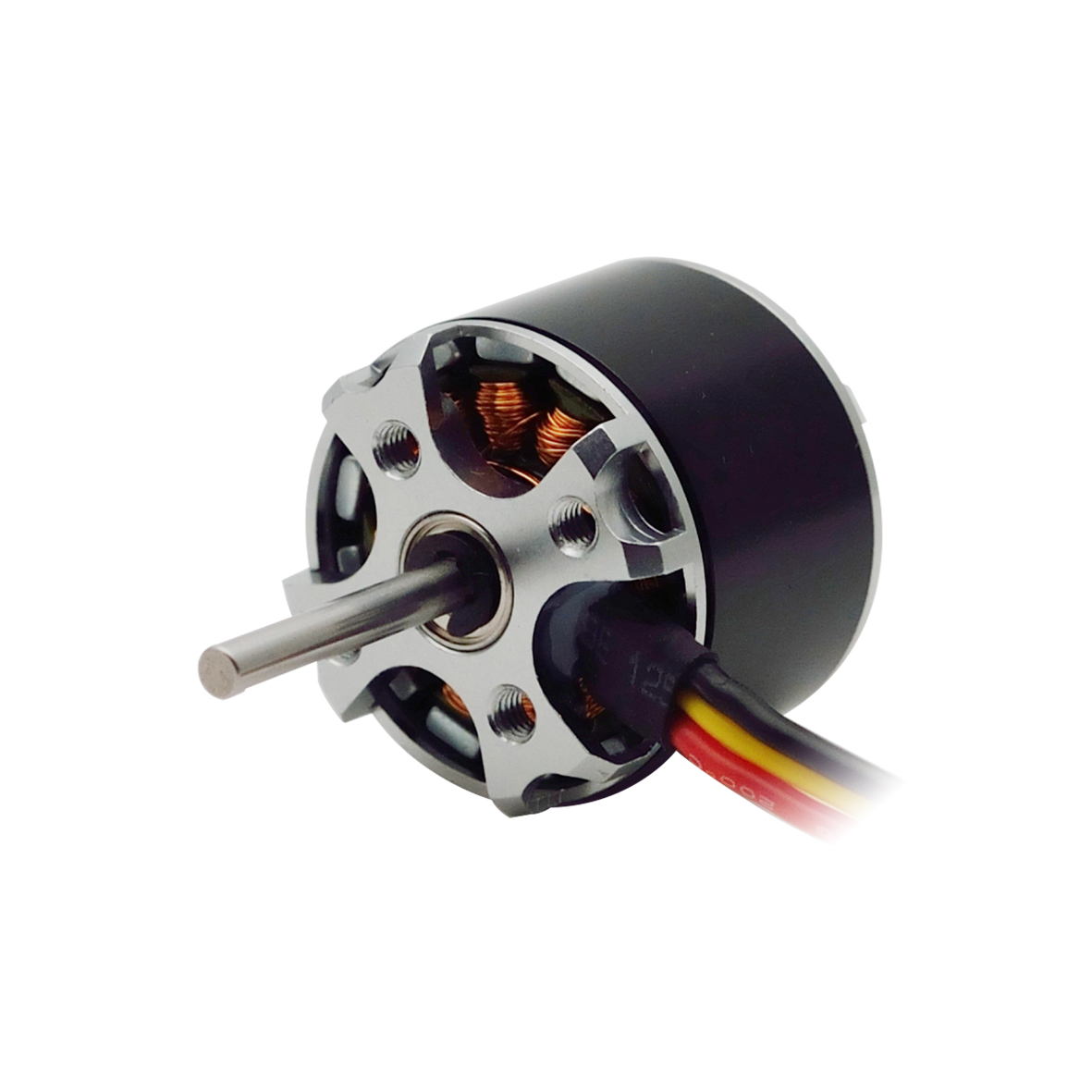

BO2826N2B

High-power wool shearing brushless motor
Diameter: 27.6mm; Length: 25.8mm; Voltage: 12.0v, 24.0v, 36.0v; Max output power: 247 - 254W; Speed: 10400rpm; Rated torque: 86.7 - 89.6mNm.

Application: Drone, electric tools, automation equipment, smart home and other driving fields.
Customizable: Specifications, wires, shaft length, performance, bearings, gearbox, Hall sensors, encoders, driver.

Ask for datasheet

Customized Assessment

Ask for a quotation

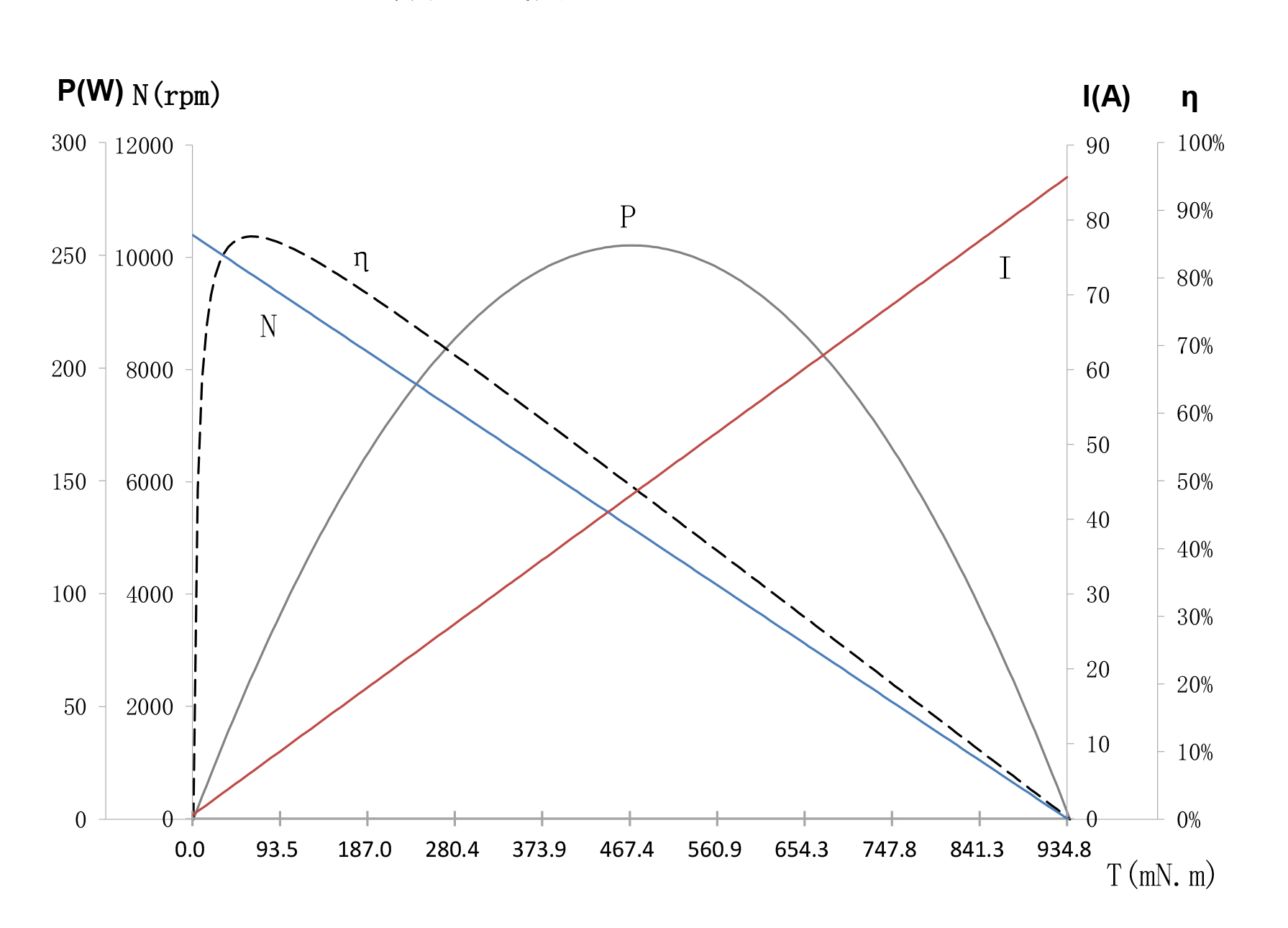

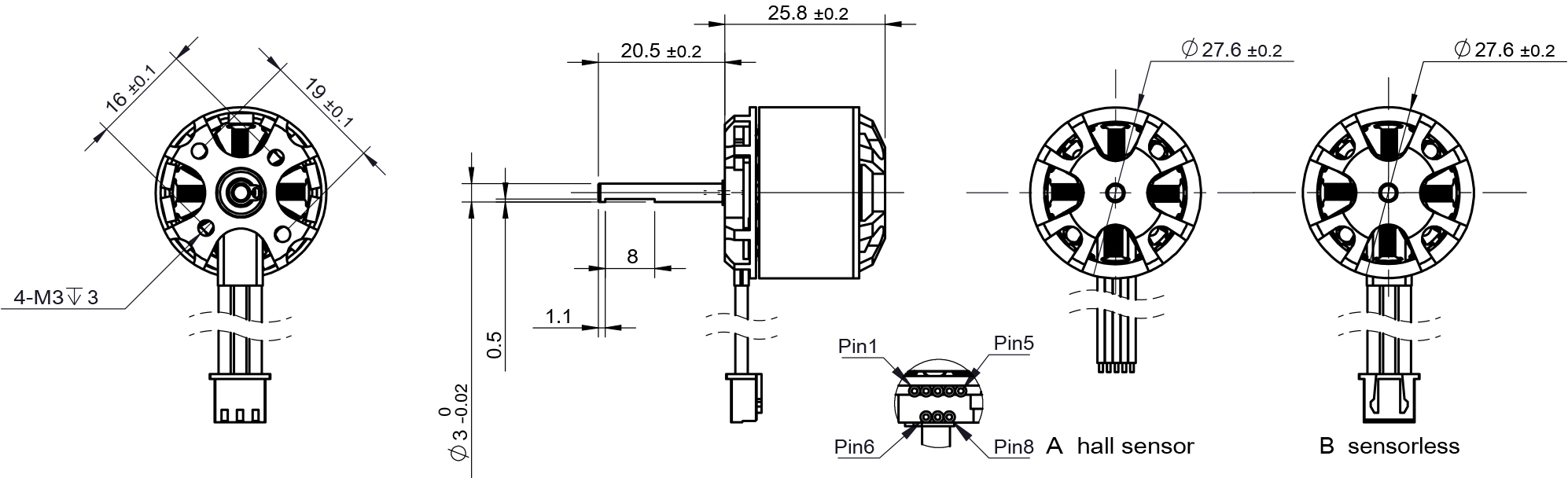

Parameter Outline Drawing Characteristic Curve Download

Characteristics	UNIT	01-104-12.0	02-104-24.0	03-104-36.0
Voltage	V	12.0	24.0	36.0
Terminal resistance	Ω	0.14	0.58	1.26
No-load speed	rpm	10400	10400	10400
No-load current	A	0.44	0.23	0.15
Stall torque	mNm	930	912	931
Stall current	A	83.3	41.7	28.6
Nominal torque	mNm	86.7	89.5	89.6
Nominal speed	rpm	7820	8040	8500
Nominal current	A	8.1	4.1	2.7
Max.output power	W	247	248	254
Max.efficiency	%	86	85.7	86.2
Back-EMF constant	mV/rpm	1.1	2.3	3.4
Torque constant	mNm/A	10.9	22	32.8
KV Value	rpm/V	871	433	290
Speed/torque gradient	rpm/mNm	11.6	11.4	11.2
Rotor inertia	gcm²	31	31	31
Weight	g	53	53	53
