BO4316NB2B

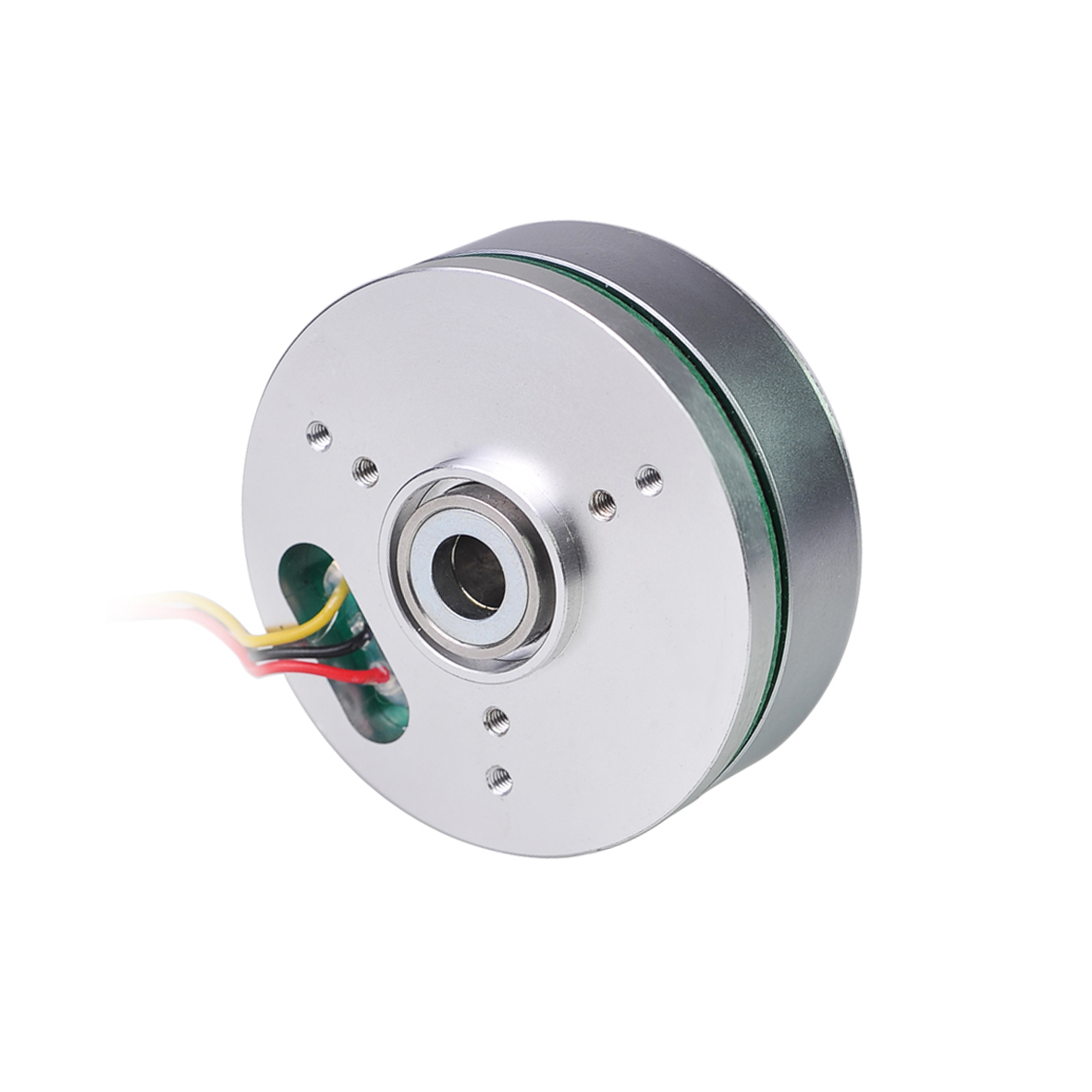

43mm flat gimbal motor
Diameter: 42.8mm; Length: 15.9mm; Voltage: 9.0v, 12.0v, 24.0v; Max output power: 35-39W; Speed: 3730-3910rpm; Rated torque: 79.7mNm

Application : UAV gimbal, LiDAR, laser scanning, handheld gimbal.
Customizable: Specifications, wires, shaft length, performance, bearings, gearboxes, encoders, driver.

Ask for datasheet

Customized Assessment

Ask for a quotation

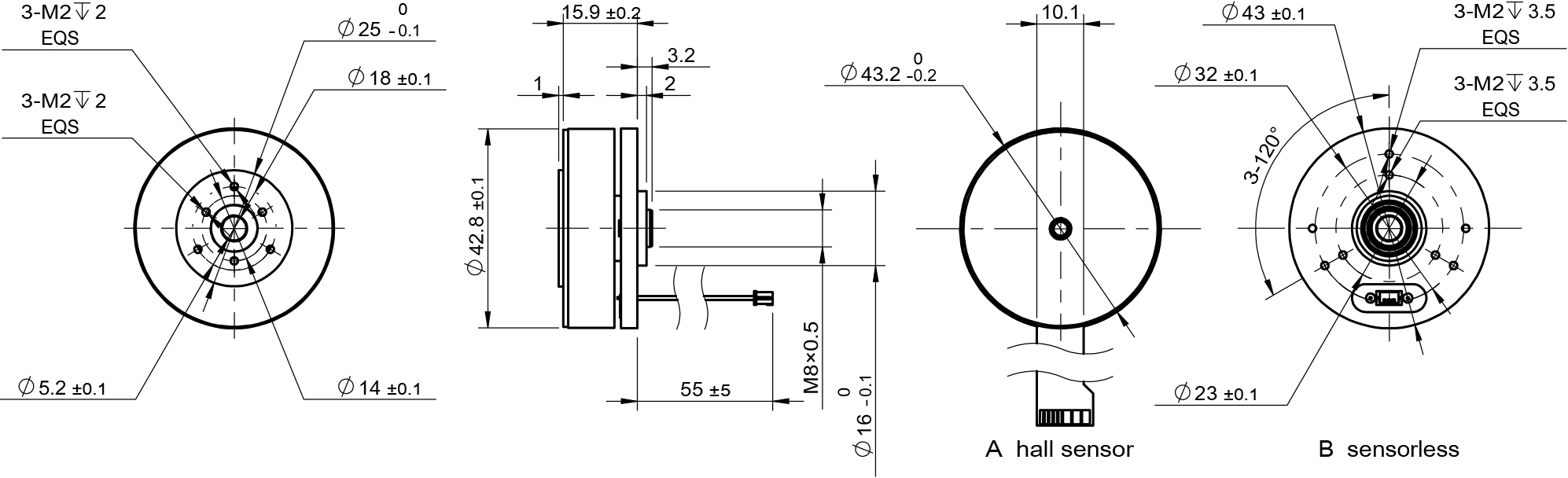

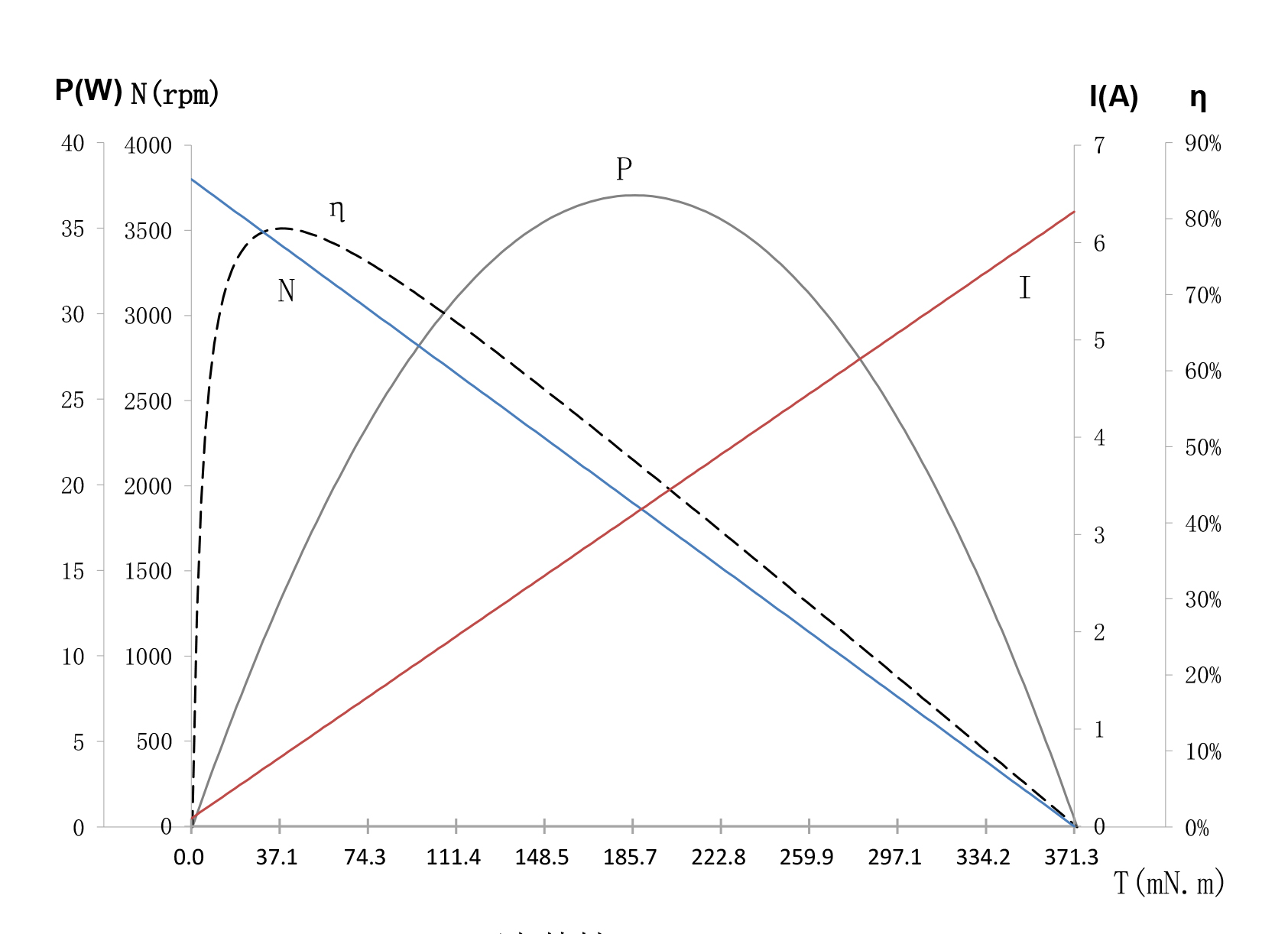

Parameter Outline Drawing Characteristic Curve Download

Characteristics	UNIT	27-38-9.0	26-39-12.0	05-38-24.0
Voltage	V	9.0	12.0	24.0
Terminal resistance	Ω	0.56	0.9	3.8
No-load speed	rpm	3730	3910	3800
No-load current	A	0.21	0.16	0.08
Stall torque	mNm	359	379	371
Stall current	A	15.9	13.2	6.3
Nominal torque	mNm	79.7	79.7	79.7
Nominal speed	rpm	2910	3080	2640
Nominal current	A	3.69	2.92	1.43
Max.output power	W	35	39	37
Max.efficiency	%	78	79	78
Back-EMF constant	mV/rpm	2.38	3.02	6.24
Torque constant	mNm/A	22.7	28.9	59.5
Terminal inductance	mH	0.4	0.65	2.8
Speed/torque gradient	rpm/mNm	10	10	10
Rotor inertia	gcm²	97	97	97
Weight	g	72	72	72
