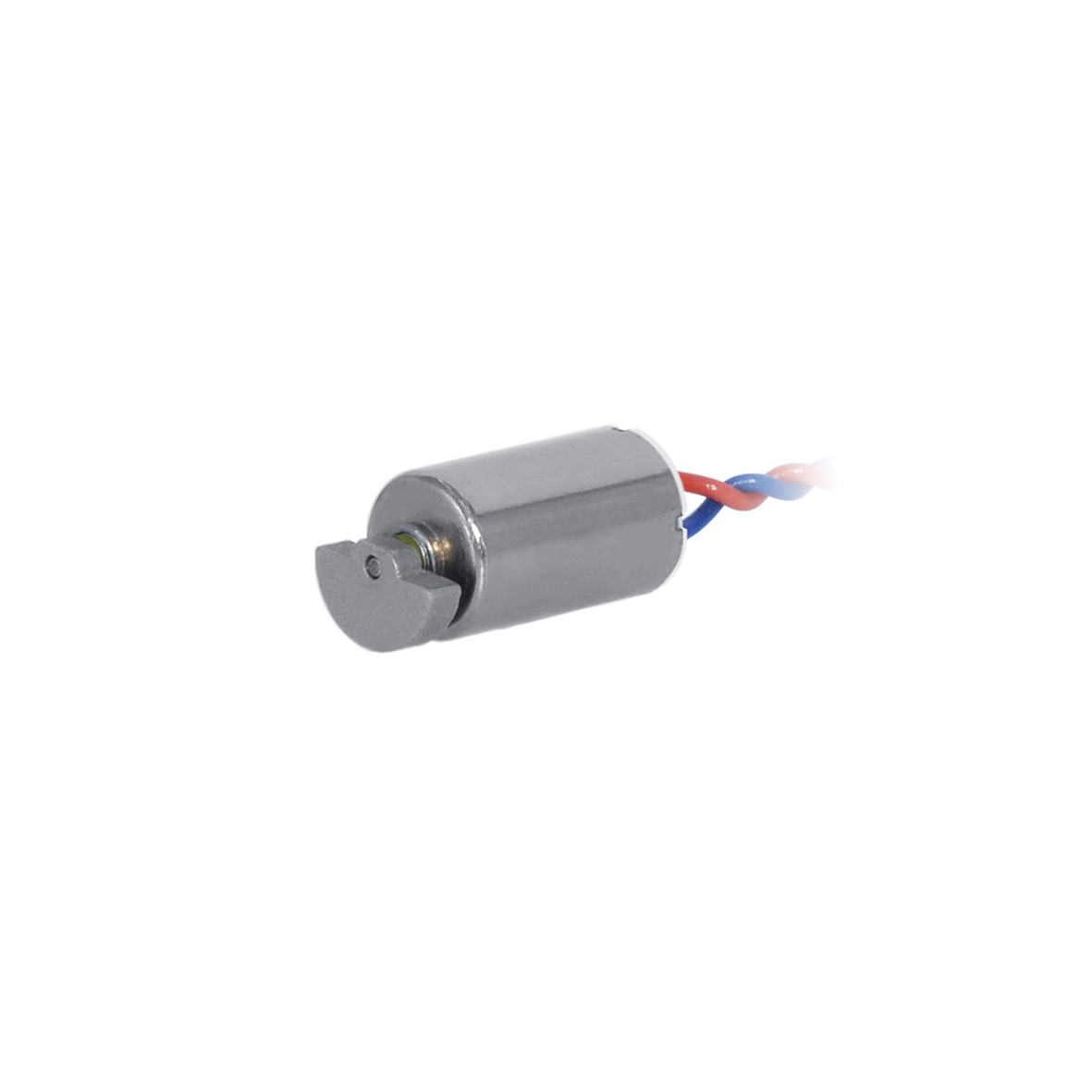

VL0510N3M

5mm DC Coreless Motor Series

Width: 5mm; Length: 9.8mm; Voltage: 3.0v; Speed: 12000-20000rpm; Terminal resistance: 7.4-17Ω.

Applications: wearable products, mobile phones, tablet PC’s, health care products, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	05-120-3.0	10-200-3.0	04-150-3.0
Voltage	V	3.0	3.0	3.0
Terminal resistance	Ω	17	7.4	10.7
Speed	rpm	12000	20000	15000
Current	mA	130	250	180
Starting voltage	V	0.8	0.8	0.8
Stall current	mA	190	500	420
Weight	g	1.5	1.5	1.5
Operating temperature range	°C	-10～+65	-10～+65	-10～+65
