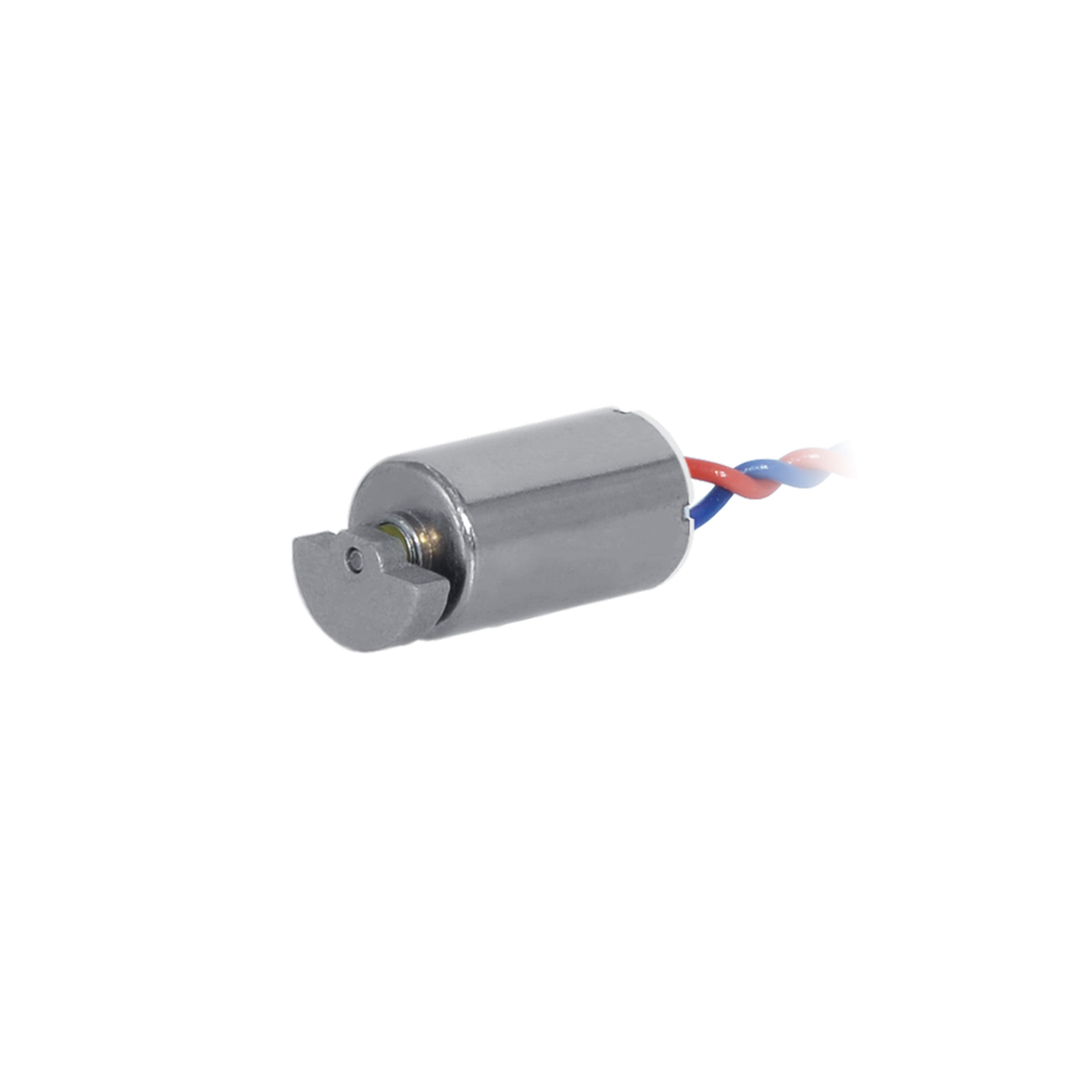

VL0610N5M

6mm DC Coreless Motor Series

Width: 6mm; Length: 10.4mm; Voltage: 1.3v, 1.5v, 3.0v; Speed: 8700-11000rpm; Terminal resistance: 13.1-55Ω.

Applications: wearable products, mobile phones, tablet PC’s, health care products, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	36-90-1.5	80-87-1.3	40-110-3.0
Voltage	V	1.5	1.3	3.0
Terminal resistance	Ω	22	13.1	55
Speed	rpm	9000	8700	11000
Current	mA	16	65	20
Starting voltage	V	0.8	0.8	0.8
Stall current	mA	80	120	120
Weight	g	1.6	1.8	1.8
Operating temperature range	°C	-10～+65	-10～+65	-10～+65
