2734ZDR

27mm sonic vibration motor

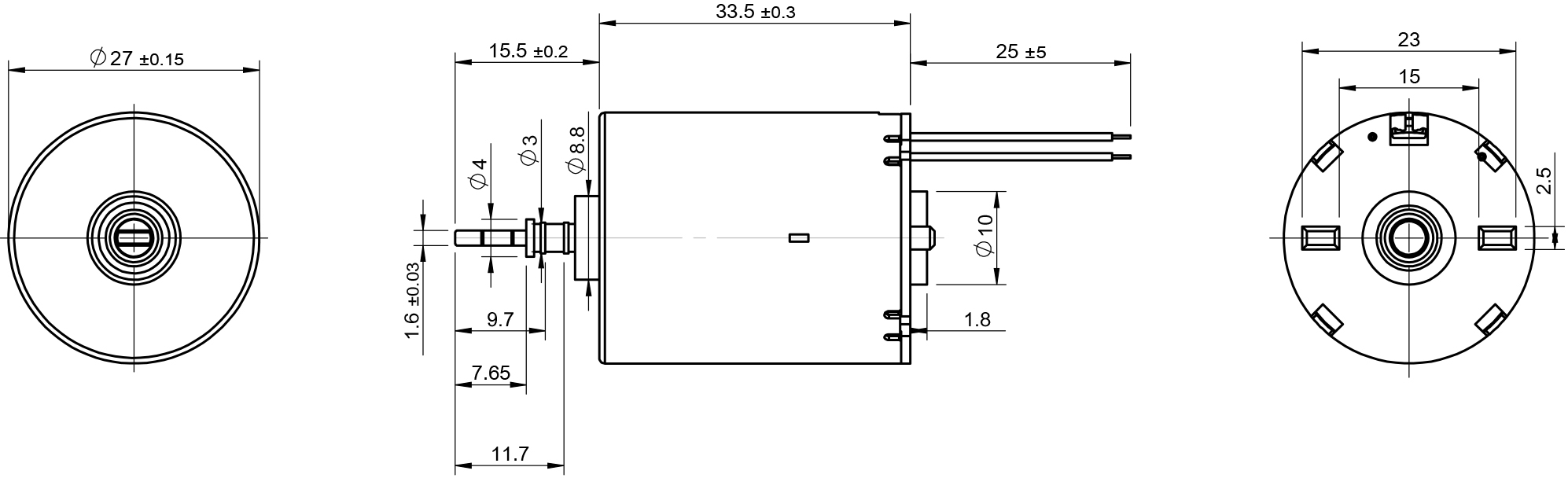

Diameter: 27mm; Length: 33.5mm; Voltage: 3.7v, 5.0v; Vibration frequency: 30,000 times;

Lifespan: 2000H; Production plant: Shenzhen Guangming plant, Chongqing Fuling plant.

Applications: facial brushes, facial massagers, health care products, cleaning equipment, etc.

Customizable options: gauge, lead length, shaft length, performance.

Unit price: Quote according to customer quantity and solution requirements

Nombre	Unidad	2734ZDR-1-L2-30-3.7	2734ZDR-2-L13-30-3.7	2734ZDR-1-L3-25-5.0
Voltage	V	3.7	3.7	5.0
Resistance	Ω	3	2.5	3

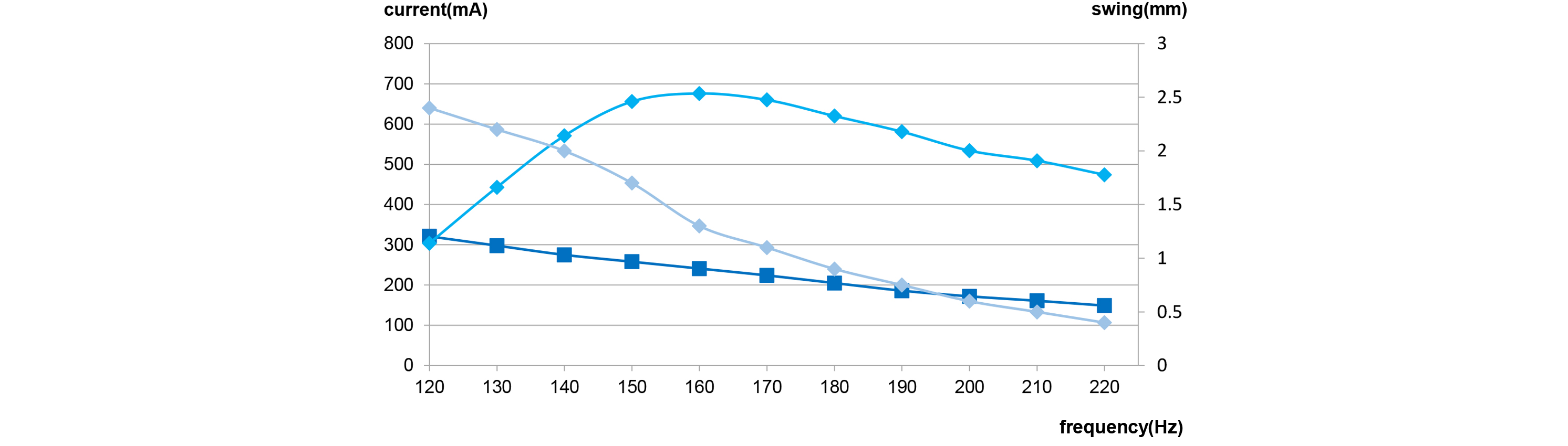

Operating frequency range	Hz	100~240	100~240	100~240
No-load vibration frequency	Times/minute	30000	30000	30000
No-load current	mA	150	220	150
Starting torque	mNm	56	56	75
Starting current	A	1.23	1.48	1.67
Rated load (Brush head weight/diameter)	g	13.8/41	13.8/41	13.8/41
Load vibration frequency	Times/minute	20400	20400	20400
Load current	mA	580	630	670
Rotor inertia	gcm²	2.4	2.4	2.4
Weight	g	76	76	76
Operating temperature range	°C	-10～+60	-10～+60	-10～+60
