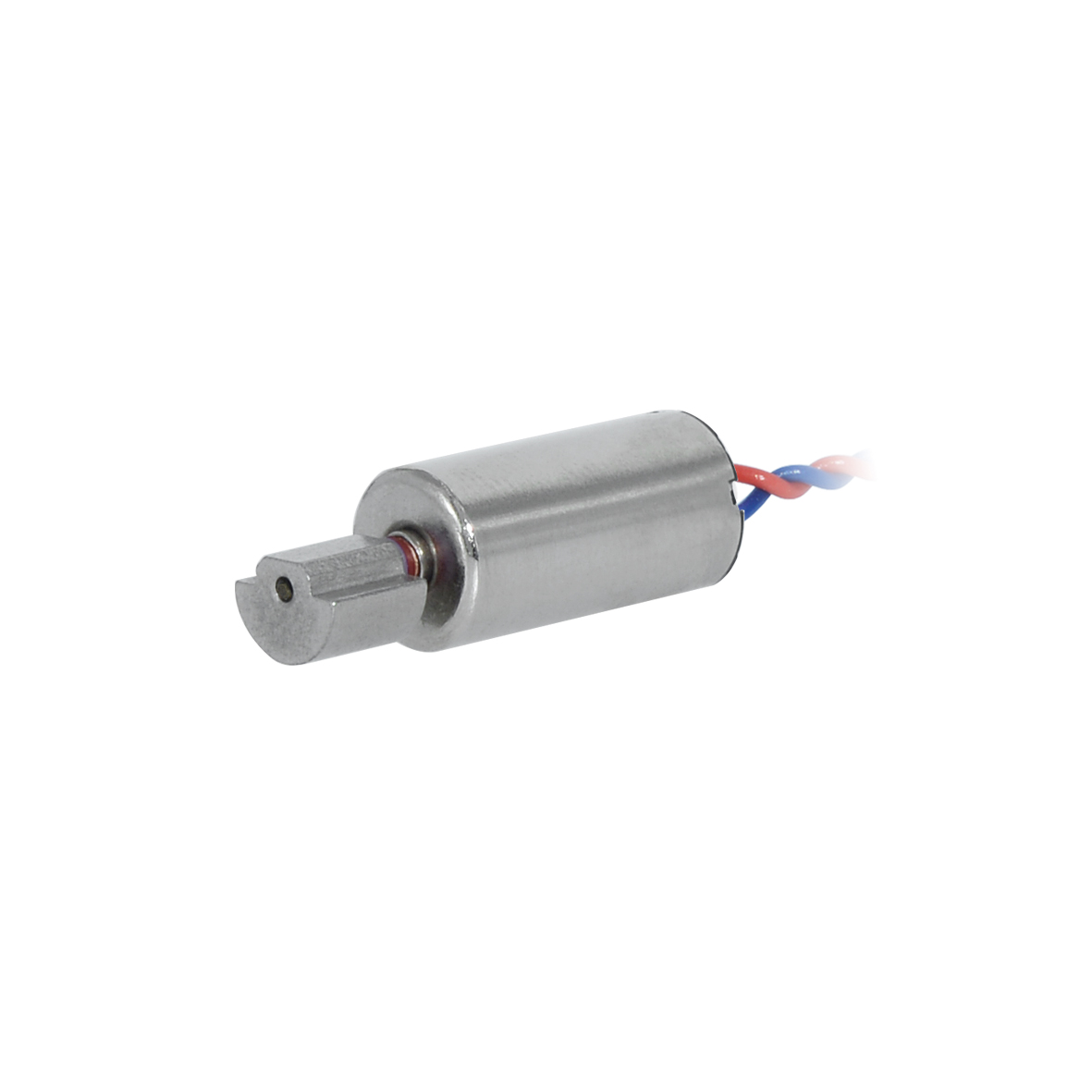

VL0615N5M

6mm DC Coreless Motor Series

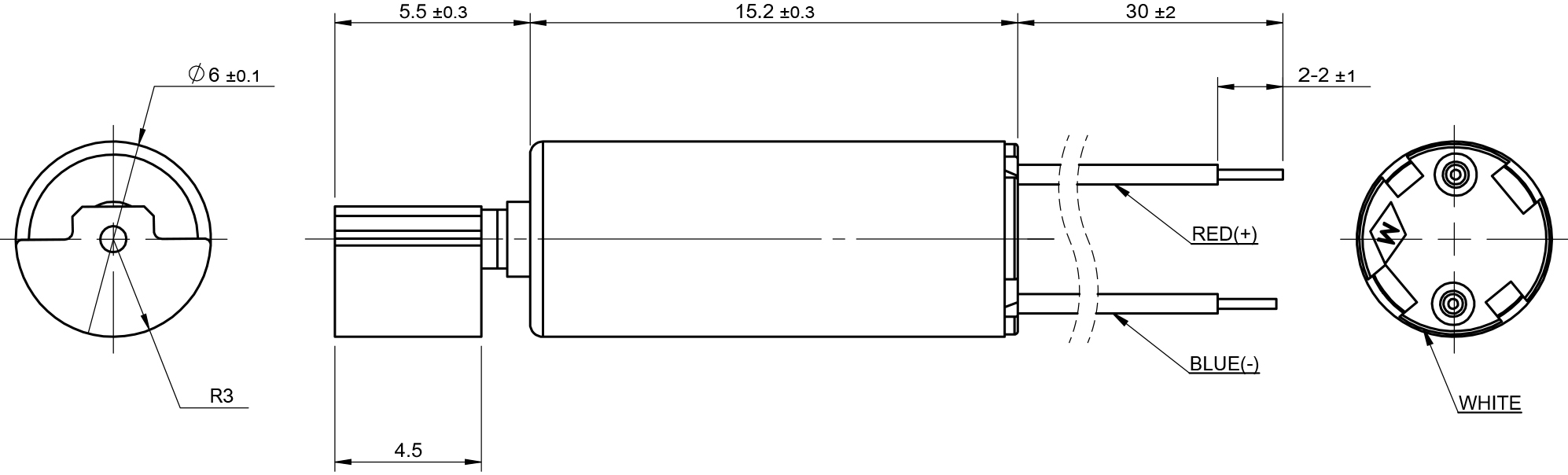

Width: 6mm; Length: 15.2mm; Voltage: 1.5v, 3.0v; Speed: 9200-25000rpm; Terminal resistance: 2.8-20Ω.

Applications: wearable products, mobile phones, tablet PC’s, health care products, etc.

Customizable options: Specifications, wire length, shaft length, performance, gearbox.

Unit price: Quote based on customer quantity and solution requirements

Nombre	Unidad	47-100-3.0	02-92-1.5	21-250-3.0
Voltage	V	3.0	1.5	3.0
Terminal resistance	Ω	20	6.9	2.8
Speed	rpm	10000	9200	25000
Current	mA	45	100	280
Starting voltage	V	0.6	0.8	0.8
Stall current	mA	150	220	1000
Weight	g	3.4	2.8	2.6
Operating temperature range	°C	-10～+65	-10～+65	-10～+65
