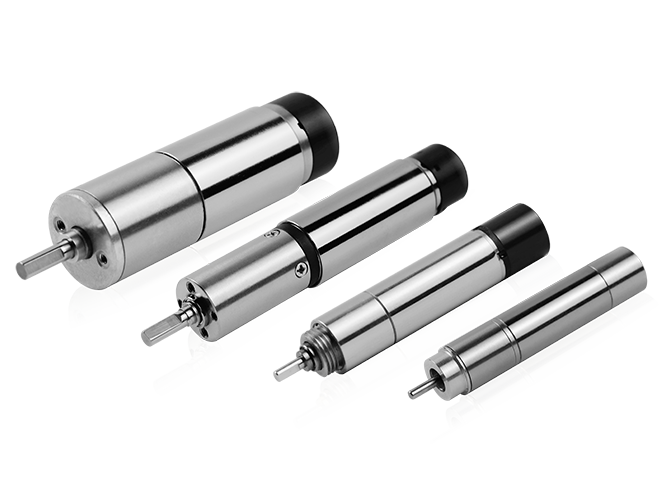

DC Coreless Brushed Servo Motor

Precision coreless brushed motor with metal planetary gearbox and encoder, featuring long lifespan and high reliability; supports high-speed operation with excellent speed regulation; low electromagnetic interference and strong anti-interference capability; high overload capacity for use in harsh environments.

Application Fields: Medical devices, industrial equipment, and other precision drive applications.

Model	Dia(MM)	Voltage (V)	Reduction ratio	Output signal	Counts per turn(cpt)	Number of channels
08**M5...M...	8	3.0	4~4096	TTL	16,32,64,256,512	2/3
10**M7...M...	10	6.0	4~4096	TTL	12,16,64,256,512	2/3
12**M7...M...	12	4.5	4~4.96	TTL	16,32,64,256,512	2/3
13**M7...M...	13	12.0	4~1024	TTL	16,32,64,256,512	2/3
16**M9...M...	16	12.0	4~3027	TTL	16,32,64,256,512	2/3
25**C9...M...	25	12.0	3.7~721	TTL	16,32,64,128,256,512,1024	2/3
30**C9...M...	30	18.0	3.7~2076	TTL	16,32,64,128,256,512,1024	2/3
