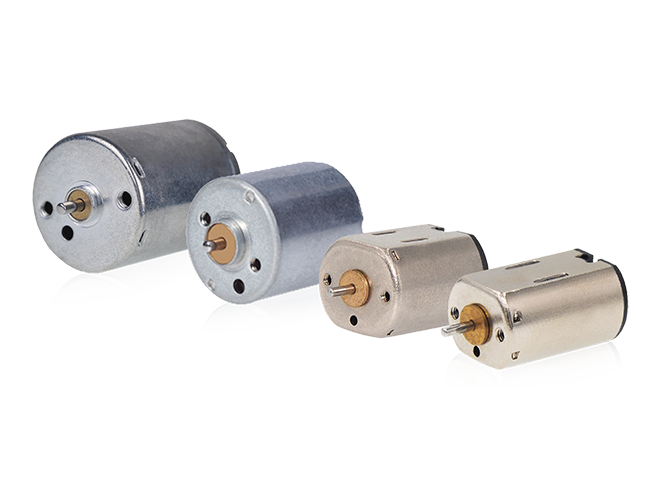

Precious Metal Brush/Core-Type Motor - Precious Metal Brush Series
DC Iron-Core Motors feature coils wound on iron cores, delivering stable and reliable performance at low cost. The Drive Series is widely used in security systems, compact electronics, radio-controlled aircraft toys, personal care products, portable tools, and related applications.
Contact Us NowPrecious Metal Brush
| Model | Specification(MM) | Voltage (V) | No-load current(mA) | No-load speed (RPM) | Nominal torque（mNm） | Max.output power（W） | Download |
|---|---|---|---|---|---|---|---|
| C1012F | 10*12.6 | 4.5 | 80 | 32000 | 0.29 | 0.84 | |
| C1015F | 10*15 | 6 | 35 | 20500 | 0.098 | 0.7 | |
| C1215F | 12*15 | 3.5 | 100 | 25000 | 0.294 | 1.18 | |
| C1220F | 12*20.6 | 6 | 50 | 13800 | 0.294 | 0.94 | |
| C1627F | 15.5*26.9 | 6 | 55 | 8600 | 0.79 | 0.85 | |
| C1718R | φ17*17.8 | 6 | 80 | 18500 | 0.39 | 1.6 | |
| C1723R | φ17*22.8 | 7.4 | 45 | 12000 | 0.49 | 1.85 | |
| C2430R | φ24.4*30.8 | 12 | 35 | 6150 | 1.96 | 2.59 |
